STARTECH ST10GSPEXNB2 10G PCIE NETWORK ADAPTER CARD - SIX-SPEED NIC AVB PXE BOOT

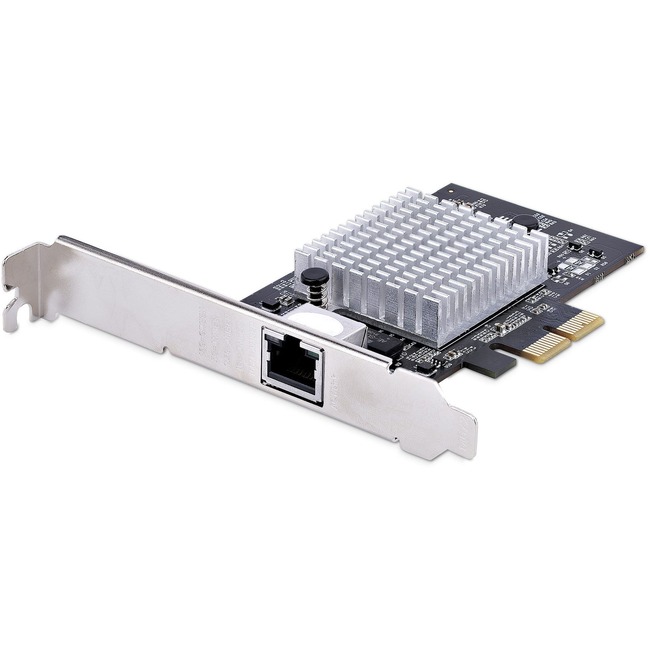

Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Aruba®.

Increased Network Speeds

This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content. NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.

Enhance Existing Hardware

The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.

Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.

The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	ST10GSPEXNB2
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	10Gigabit Ethernet Card
Packaged Quantity	1
Product Type	10Gigabit Ethernet Card
Technical Information
Chipset Manufacturer	Marvell
Chipset Model	AQC113CS
Interfaces/Ports
Host Interface	PCI Express 3.0 x2
Total Number of Ports	1
Number of Network (RJ-45) Ports	1
Media & Performance
Media Type Supported	Twisted Pair
Network & Communication
Network Technology	10GBase-T
Physical Characteristics
Product Color	Black
Form Factor	Plug-in Card
Bracket Height	Low Profile
Height	0.8"
Width	4.2"
Weight (Approximate)	2.50 oz
Miscellaneous
Package Contents	10Gigabit Ethernet Card 1 x Low-profile Bracket 1x Quick-start Guide
Device Supported	Computer/Server
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Malaysia
Warranty
Limited Warranty	2 Year
