SOCKET

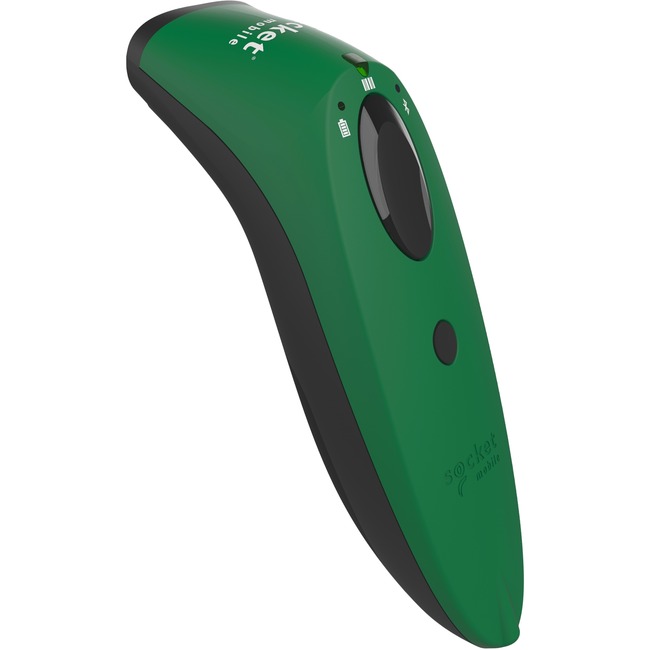

CX3980-3037 SOCKETSCAN S720 GENERAL PURPOSE 2D READER GREEN
Mfg Part Number: CX3980-3037 , Item #: 4683764
, PO and Wire.
Linear Barcode Plus QR Code Reader
The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It's lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
| General Information | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX3980-3037 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | SocketScan |
| Product Series | 700 |
| Product Model | S720 |
| Product Name | SocketScan S720, Linear Barcode Plus QR Code Reader, Green |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Barcode Symbology Supported | 1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industria 2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code |
| Light Source | LED |
| Image Sensor Type | Linear |
| Scanning Distance | 14.96" |
| Features | Notification LED |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 4 ft. drop to linoleum |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Image Sensor Resolution | 1280 x 960 |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Included | Yes |
| Battery Chemistry | Nickel Metal Hydride (NiMH) |
| Battery Capacity | 2000 mAh |
| Battery Weight | 1.92 oz |
| Maximum Battery Run Time | 16 Hour |
| Maximum Battery Recharge Time | 6 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 113°F (45°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Green |
| Product Color | Green |
| Weight (Approximate) | 4.13 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Ticketing |
| Application/Usage | Delivery |
| Application/Usage | Loyalty Program |
| Application/Usage | Asset Tracking |
| Application/Usage | Hospitality |
| Application/Usage | Transportation |
| Application/Usage | Inventory |
| Platform Supported | Android |
| Platform Supported | PC |
| Platform Supported | Mac |
| Platform Supported | iOS |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | optional extended warranty available. |
