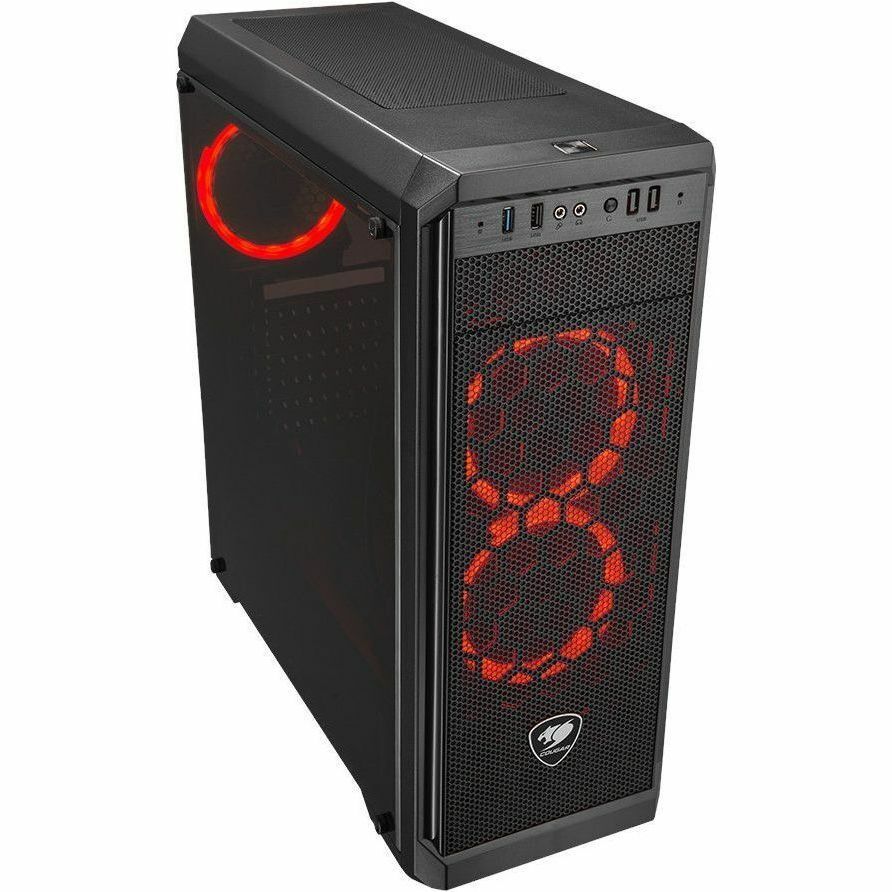

The MX330-F mid-tower case is a powerful new addition to COUGAR's MX series. With an elegant look, a highly functional design and a durable construction, this case delivers great value for your money and a clear view of your computer's internal components.

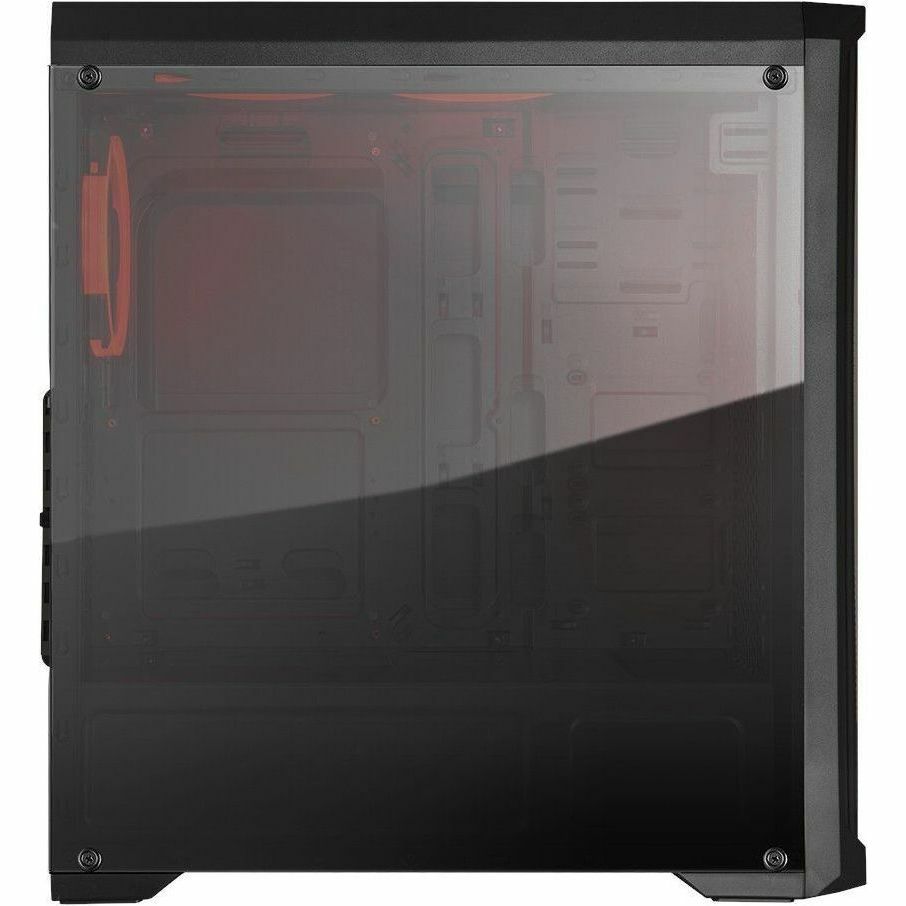

Extraordinary Transparent View
A beautiful side window acts as a portal into your PC's interior. Ideal for those who want to set up internal lighting solutions and for modders.
Features
Extreme Flexibility

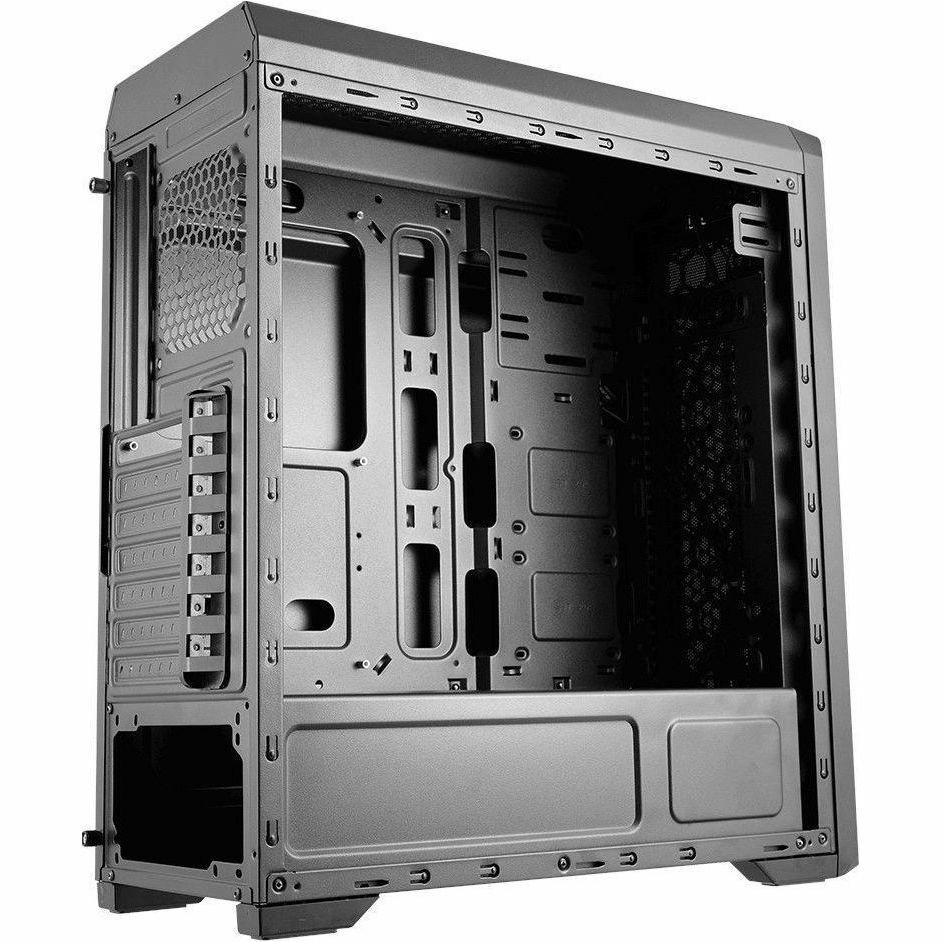

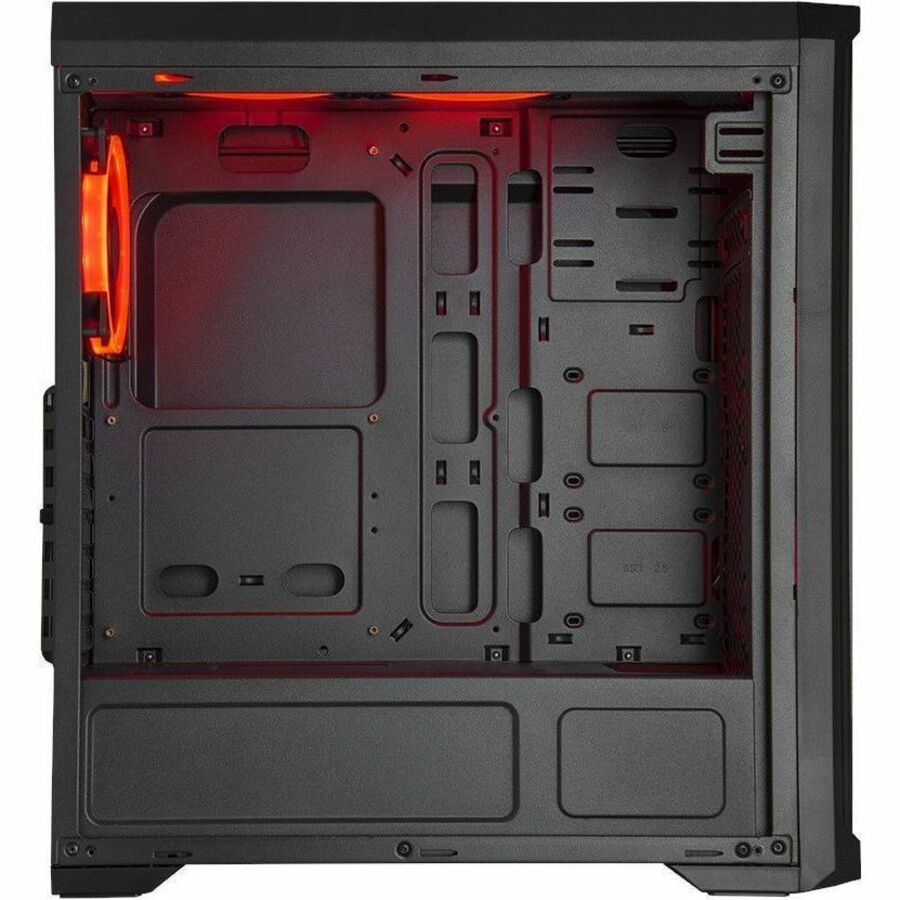

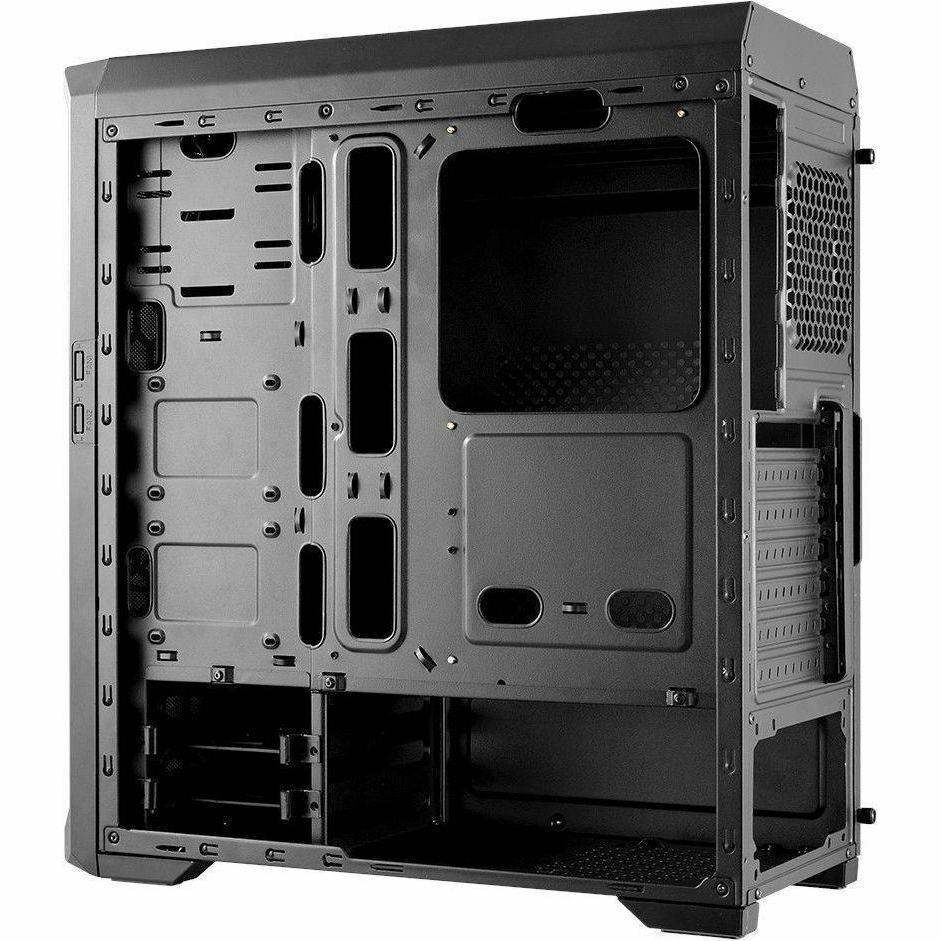

MX330-F has seven PCI slots, allowing you to install multiple 350mm graphics cards to give you all the graphic horsepower your games require. You also get the ability to install up to two 2.5" SSD and 3.5" HDDs (for a maximum of four storage devices) to satisfy your storage needs.
Outstanding Airflow
Support for a 240mm front radiator and five fans make good cooling for high-end components possible in MX330-F, which is made even better by a convenient design that eases cleaning, with detachable dust filters on the front, top and bottom covers.
Minimalist Beauty
The case's PSU and 3.5" bay cover provide a clean view of your case and keep the airflow strong.
| General Information | |
| Manufacturer | COMPUCASE ENTERPRISE CO., LTD |
| Manufacturer Part Number | MX330-F |
| Manufacturer Website Address | http://www.cougargaming.com |
| Brand Name | COUGAR |
| Product Series | Mx |
| Product Model | CGR-5NC1B-F |
| Product Name | MX330-F Elegant and Functional Mid-Tower |
| Product Type | Gaming Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | ATX |
| Number of Fans Supported | 5 |
| Number of Fans Installed | 5 |
| Fan Size Supported | 4.72" |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 3 × 120mm |
| Installed Fan Size Details | 2 x 120mm |
| Features | Dust Filter |
| Features | Removable Filter |
| Features | Cable Management |
| Window Panel | Yes |
| Window Panel Location | Left Side |
| Bays | |
| Number of External 5.25" Bays | 1 |
| Number of Internal 3.5" Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Port Details | 1 x USB 2.0 |
| USB Port Details | 1 x USB 3.0 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Microphone | Yes |
| Physical Characteristics | |
| Cooler Type | Fan/Liquid Cooler |
| Form Factor | Mid-tower |
| Maximum CPU Cooler Height | 6.10" |
| Maximum PSU Length | 7.87" |
| Maximum GPU Length | 13.78" |
| Height | 18.6" |
| Width | 7.7" |
| Depth | 16.8" |
| Warranty | |
| Limited Warranty | 1 Year |
