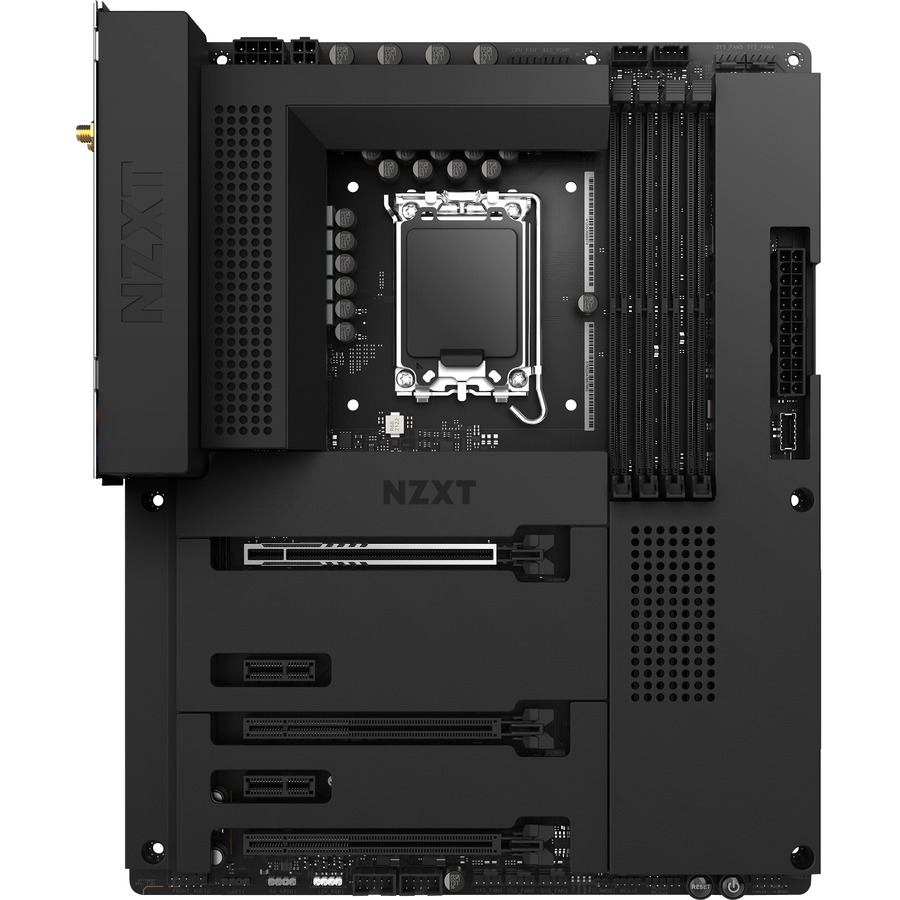

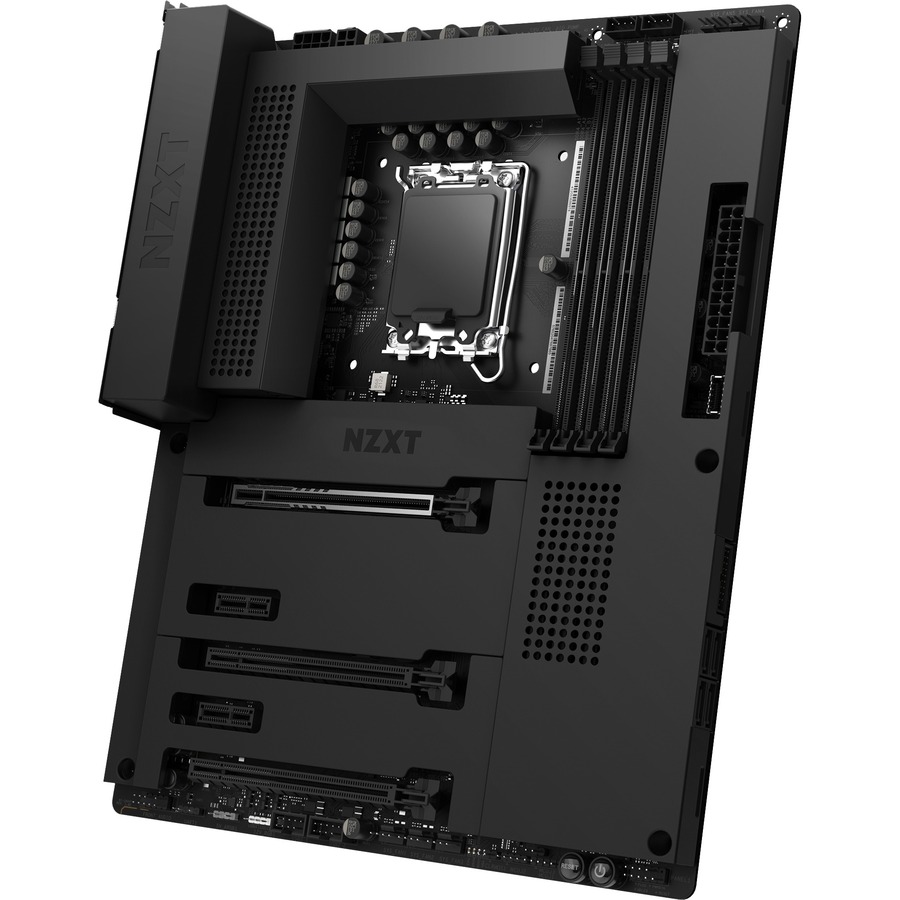

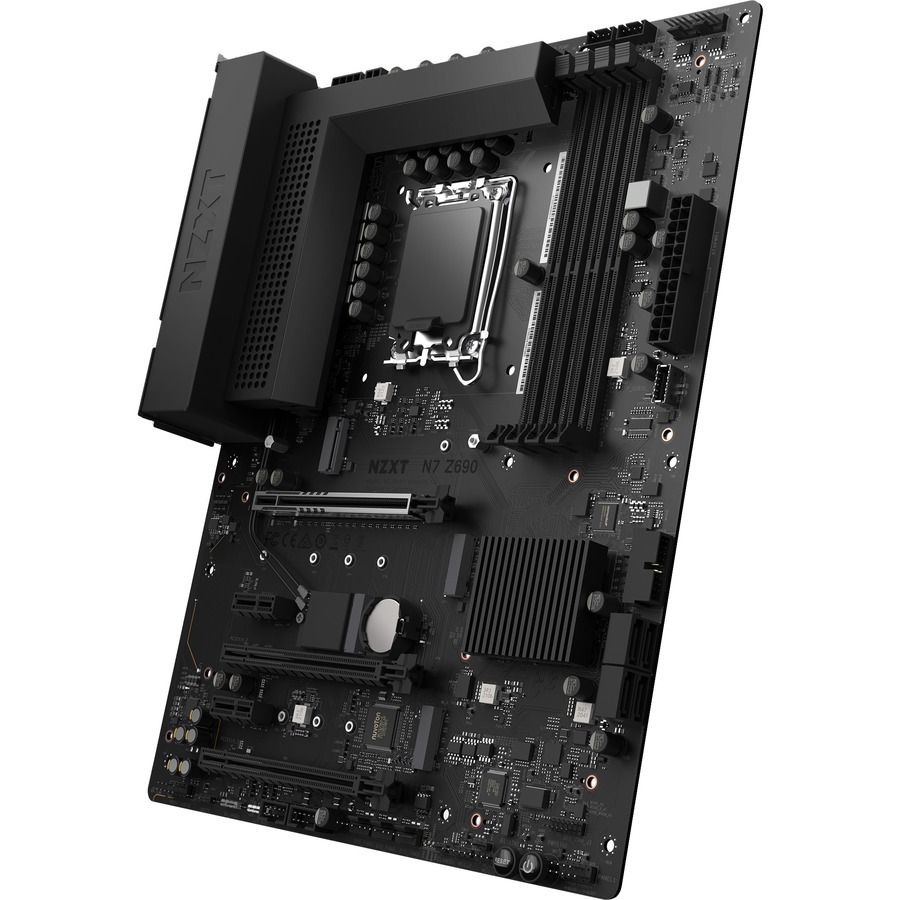

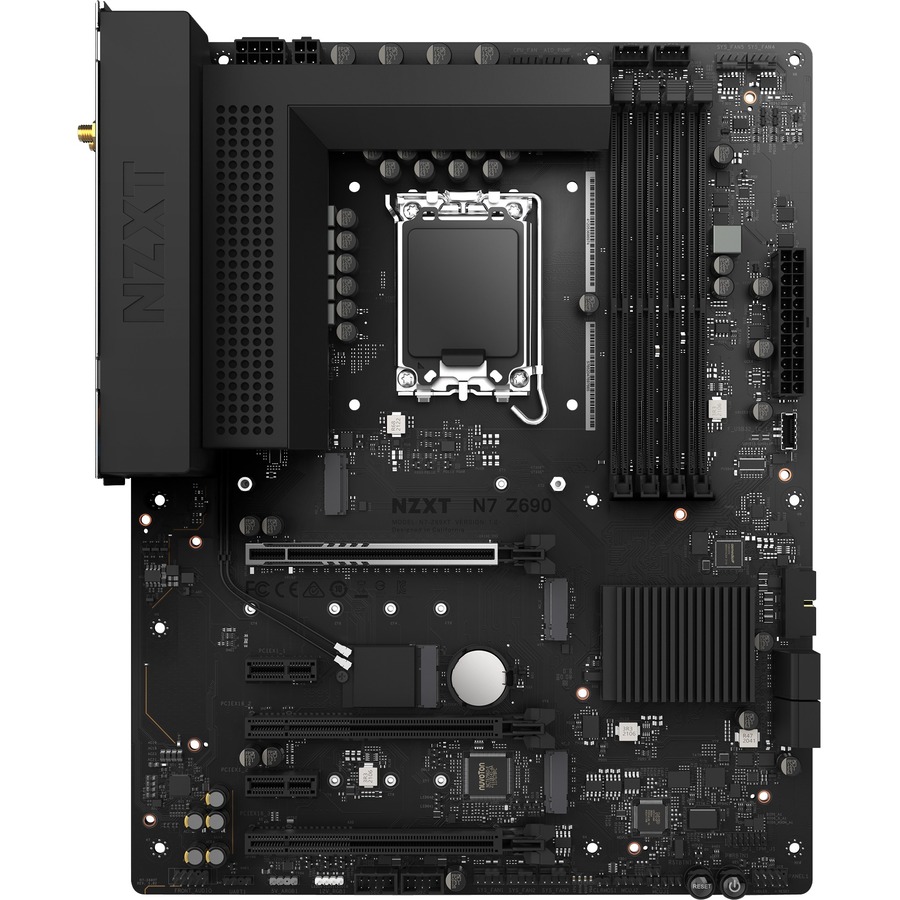

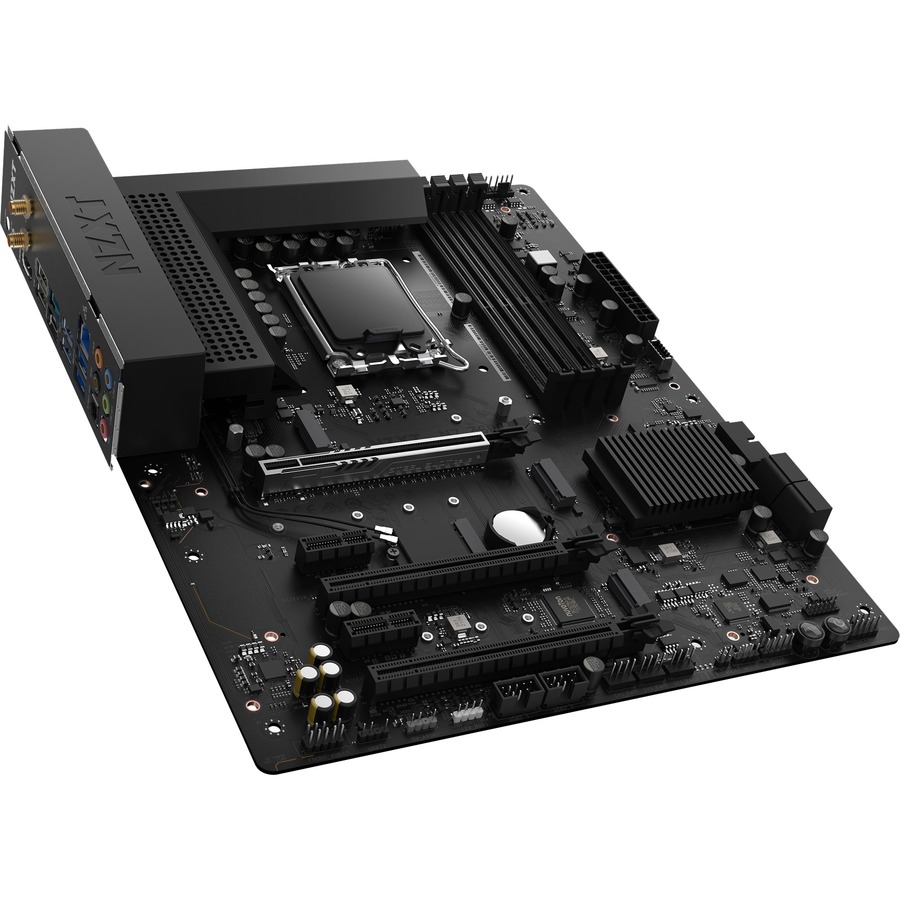

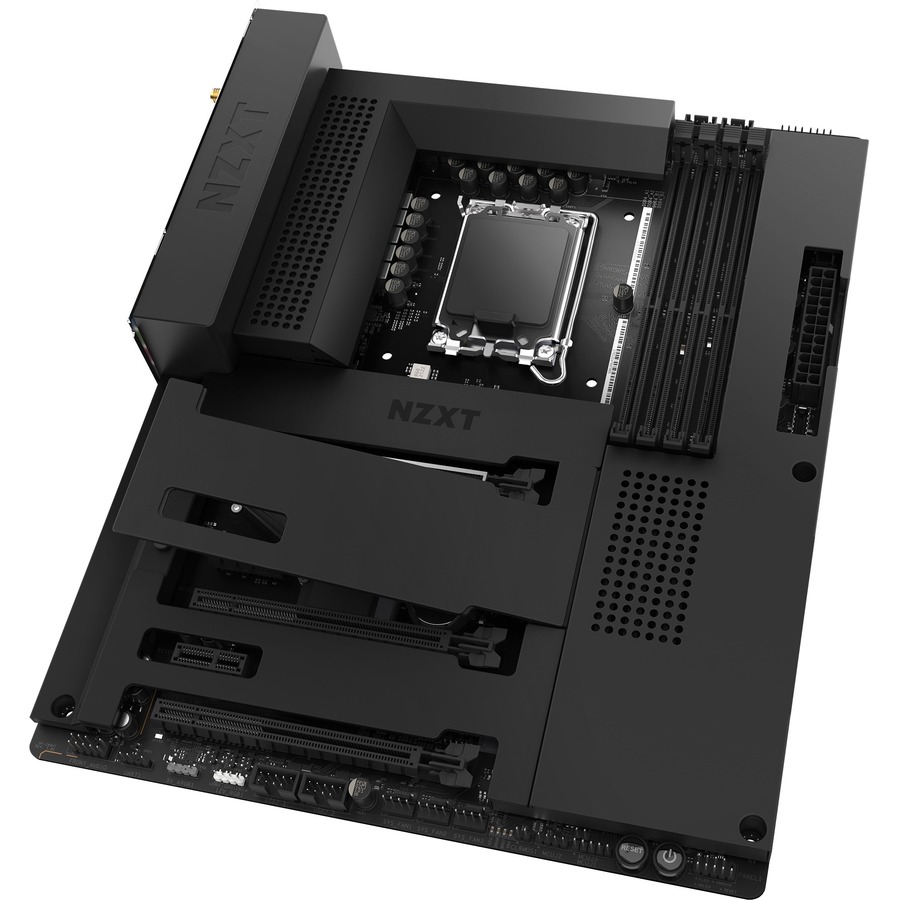

NZXT MB N7-Z69XT-B1 Z690 S1700 128GB DDR4 PCIE HDMI USB ATX Black Retail
Mfg Part Number: N7-Z69XT-B1 , Item #: 4681449
Image may not reflect the actual item.
Price: $398.61
+ Free Shipping
Quantity:
More to Come
Last Updated: May 04, 2025
No Sales Tax except these states
, PO and Wire.

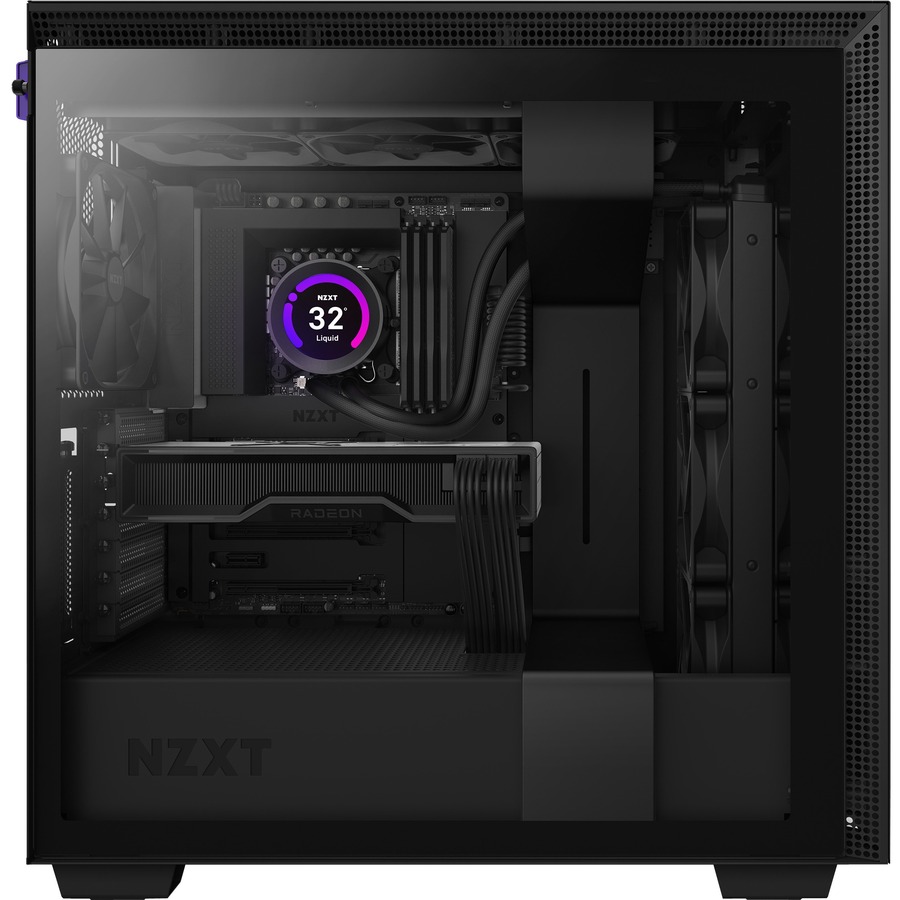

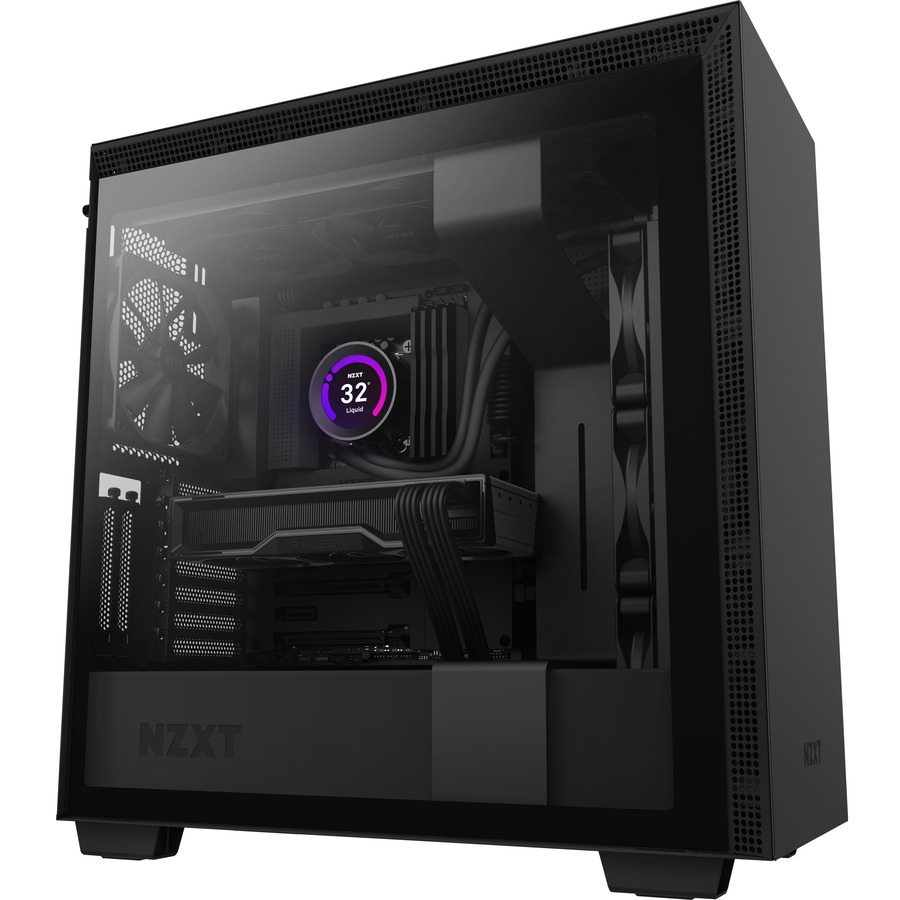

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z690 chipset.

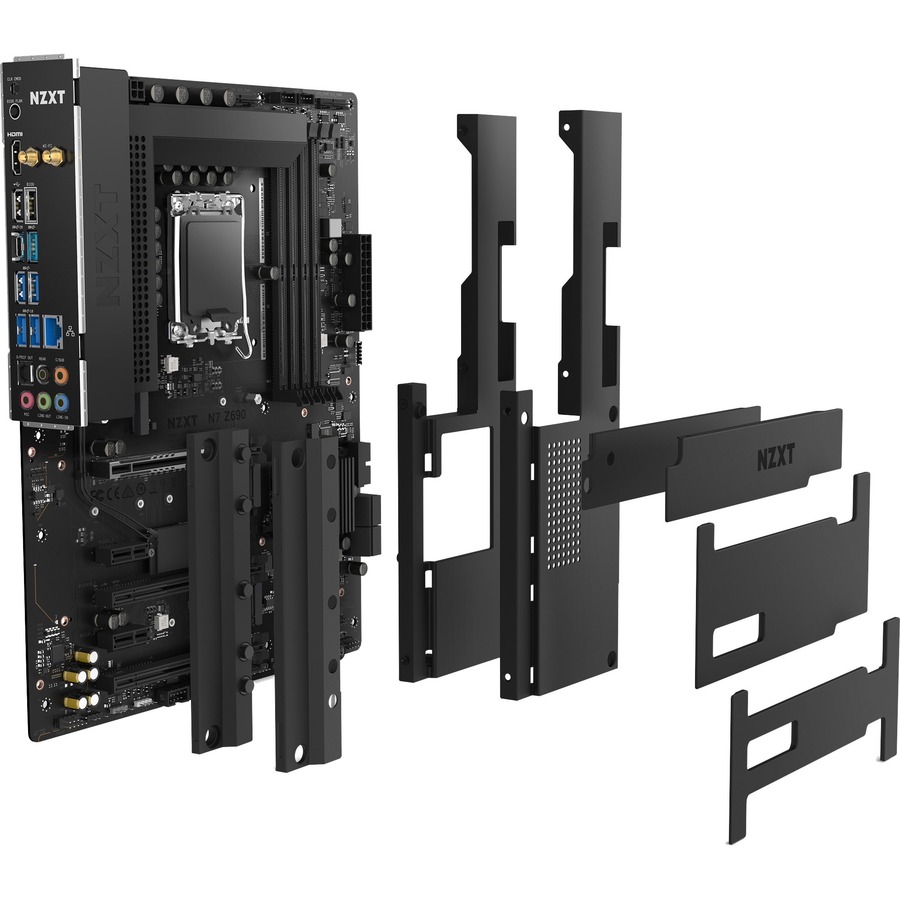

- All-metal cover completes the look of your build
- Wi-Fi 6E connectivity with updated specs for Z690 chipset
- Digital RGB lighting control through NZXT CAM
- Digital fan control with profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout ensures optimal setup with upgradeability
Main Specification
| General Information | |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | N7-Z69XT-B1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Brand Name | NZXT |
| Product Model | N7-Z69XT-B1 |
| Product Name | Intel Motherboard with Wi-Fi and NZXT CAM Features |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Core |
| Multi GPU Supported | CrossFireX |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 3200 MHz |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 5.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.0 |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | ATX |
