COMNET

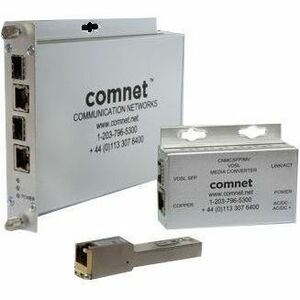

COMNET CNMCSFP/MV 10/100/1000Mbps Multi-Rate Media Converter 100FX/1000FX Selectable Small Size. For use with SFP-VDSLAB
Mfg Part Number: CNMCSFP/MV , Item #: 4680885
Image may not reflect the actual item.
Price: $1,110.00
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 14, 2025
No Sales Tax except these states
, PO and Wire.
The ComNet CNMC[2]SFP/[M]V series Ethernet to VDSL2 media converters accept a 10/100/1000 Mbps electrical input and convert this to a SFP-VDSL output and the SFP-VDSL input back to the 10/100/1000 Mbps electrical output. "Auto-Negotiating" is supported on the copper interface side. Connect SFP-VDSL devices using a twisted 2-wire cable. Refer to connection paragraph for details. The series consists of a smallsize single channel model, CNMCSFP/MV, and a ComFit standard size, dual channel model, CNMC2SFP/V.
The CNMCSFP/MV media converters are designed specially for the VDSL-SFP (sold separately).
FEATURES
- Full-duplex transmission of 10/100/1000 Mbps Ethernet - 10/100/1000BASE-TX electrical port - VDSL2 via SFP-VDSL[A/B]
- IEEE 802.3 compliant
- 10/100/1000 BASE-TX port supports auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation
- Uses SFP-VDSL interface to connect devices using a twisted 2-wire cable over long distances
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40º to +75ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/ output line provide protection from voltage surges and other transient events
- Mini-package size of the CNMCSFP/MV allows the unit to be installed in those locations where space is at a premium.
- LED status indicators confirm operating status
- Hot-swappable rack modules
- Available in small-size, ComFit interchangeable stand alone or rack unit single and dual models
- Lifetime warranty
- Made in the U.S.A.
APPLICATIONS
- VDSL2 transmission of Ethernet-compatible industrial security access control systems, intercom systems, VOIP (Voice over IP) telephony networks, and IP-compatible CCTV camera surveillance networks
- VDSL2 to Ethernet transmission to wireless LAN access points
- Industrial Security, Transportation/ITS, and Industrial Control/Factory Automation IP Networks
- VDSL2 transmission of any Ethernet-compatible equipment with a maximum data rate of 100 Mbps or 1000 Mbps
Main Specification
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | CNMCSFPMV |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Series | CNMC[2]SFP/[M]V |
| Product Model | CNMCSFP/MV |
| Product Name | 10/100/1000 Mbps Ethernet to VDSL2 Media Converters |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | VDSL2 |
| Network Technology | 1000Base-FX |
| Power Description | |
| Power Source | Power Supply |
| Plug/Connector Type | Terminal Block |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.1" |
| Width | 3.3" |
| Depth | 2.5" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Video |
| Application/Usage | Network |
| Application/Usage | Audio |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
