CLUB 3D

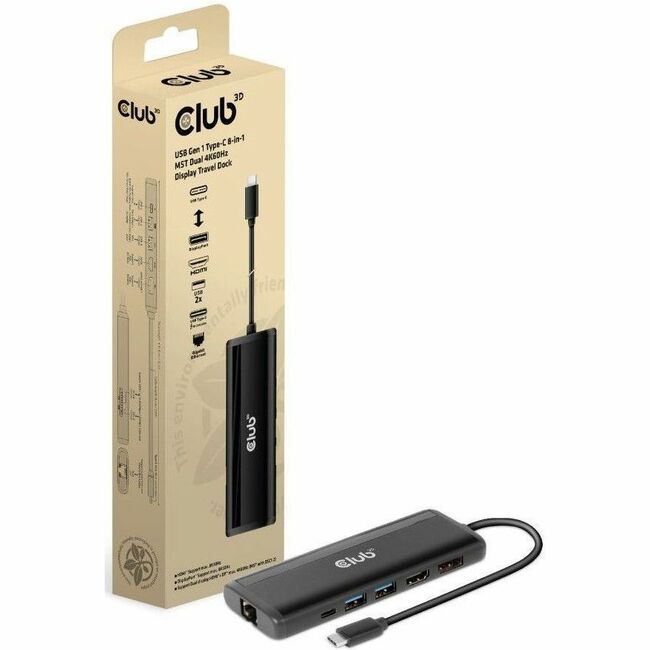

CLUB 3D CSV-1597 USBC 8 IN1 MST DUAL 4K60HZ DOCK HDMI+DP+2USB-A+RJ45+PD3.0+SD CARD
Mfg Part Number: CSV-1597 , Item #: 4673910
, PO and Wire.
The Club 3D CSV-1597 USB Gen 1 Type-C 8-in-1 MST Dual 4k60Hz Display Travel Dock with HDMI™8K30Hz(HDR), DisplayPort™ 8K30Hz, 2x USB Gen1 Type-A, BC1.2, RJ45, SD/Micro SD card slots and USB Gen1 Type-C PD3.0 Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD3.0 charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
| General Information | |
| Manufacturer | Club 3D |
| Manufacturer Part Number | CSV1597 |
| Manufacturer Website Address | http://www.club-3d.nl |
| Brand Name | Club 3D |
| Product Name | USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 7680 x 4320 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K @ 60Hz |
| Screen Mode Supported | 8K @ 30Hz |
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| Memory Card Supported | microSD |
| Device Supported | Desktop PC/Headset |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB (Gen 1) Type C |
| Total Number of USB Ports | 4 |
| Number of USB Type-C Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | USB Gen 1 Type-C Male (Connect to host),1 x USB Gen 1 Type-C Female |
| Number of USB Type-A Ports | 2 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 1 |
| DisplayPort | Yes |
| Number of HDMI Outputs | 1 |
| HDMI | Yes |
| USB Power Delivery | 100W |
| Software | |
| Operating System Supported | Windows |
| Operating System Supported | macOS |
| Physical Characteristics | |
| Height | 5.12" |
| Width | 1.77" |
| Depth | 0.55" |
| Weight (Approximate) | 4.13 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
