BLACK BOX

BLACK BOX KVXLCF-100-SFPBN1-R2 THE KVX DVI-D KVM EXTENDER LETS YOU CONTROL A SERVER OR COMPUTER OVER SINGLE-MOD

Mfg Part Number:  KVXLCF-100-SFPBN1-R2
Image may not reflect the actual item.
Price: $882.32 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 22, 2025
No Sales Tax except these states
, PO and Wire.

The KVX DVI-D KVM Extender lets you control a server or computer over single-mode or multimode cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). Single-monitor requires one fiber connection and dual-monitor requires two fiber connections. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. Available with support for one or two monitors, KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

KVX also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs.

This extender is TAA compliant and backed by free lifetime technical support. KVX is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number KVXLCF-100-SFPBN1-R2
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Series KVX
Product Model KVXLCF-100-SFPBN1-R2
Product Name KVXLCF-100-SFPBN1-R2 KVM Extender
Product Type KVM Extender
Technical Information
Connectivity Technology Wired
Number of Computers Supported 1
Number of Local Users Supported 1
Maximum Operating Distance 1804.46 ft
Device Type KVM Extender
Video
Graphic Mode WUXGA
Maximum Video Resolution 1920 x 1200

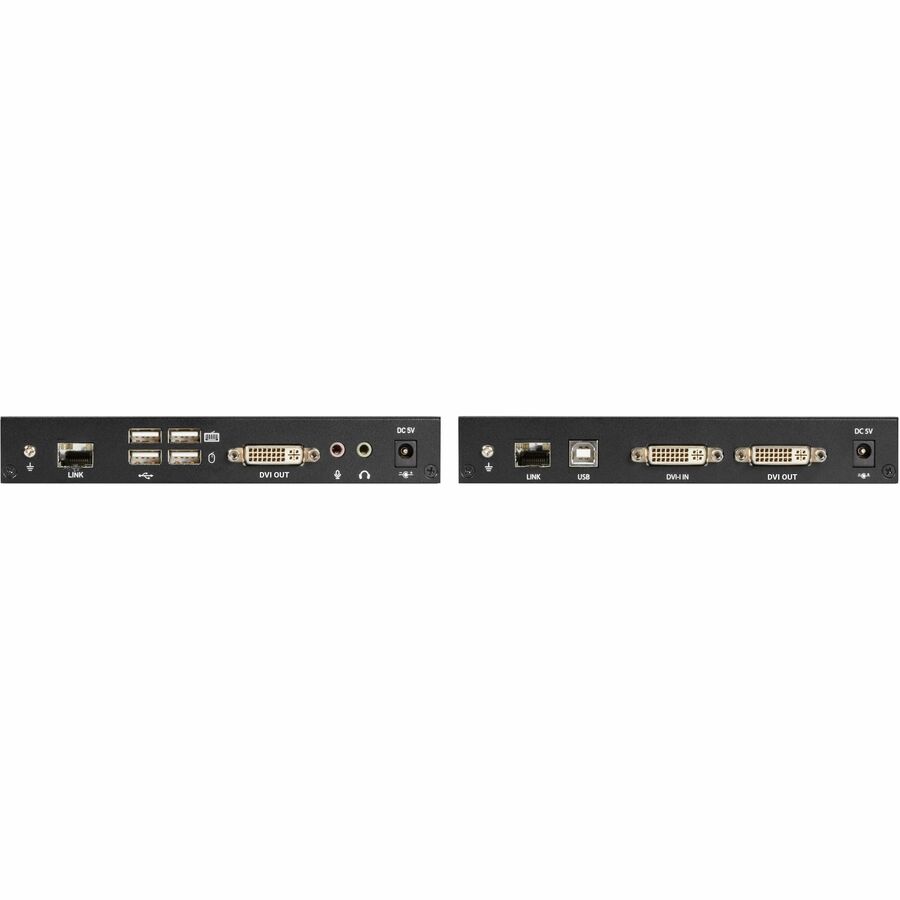

Interfaces/Ports
USB Yes
DVI Yes
Number of USB Ports 1
Number of DVI Ports 2
Power Description
Input Voltage 5 V DC
Physical Characteristics
Product Color Black
Form Factor Desktop
Transmitter Height 1.06"
Transmitter Width 7.09"
Transmitter Depth 3.27"
Receiver Height 1.06"
Receiver Width 7.09"
Receiver Depth 3.27"
Transmitter Weight (Approximate) 12.32 oz
Receiver Weight (Approximate) 12.96 oz
Miscellaneous

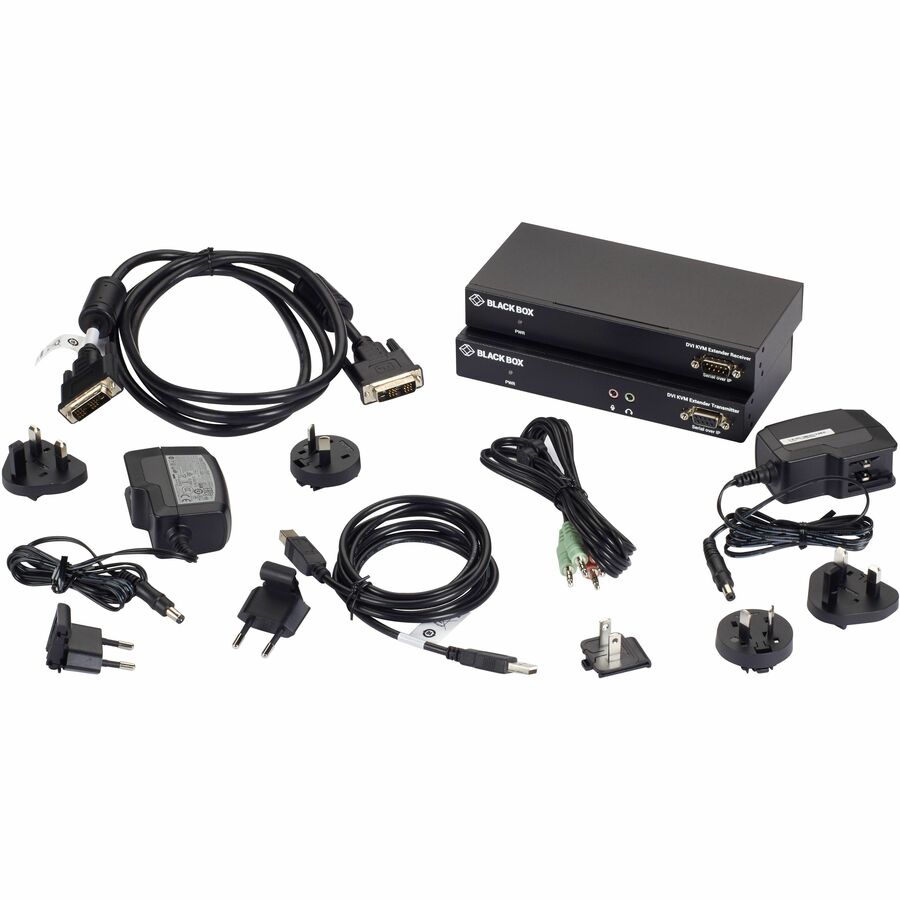

Package Contents
  • 1 x Transmitter Unit
  • 1 x Receiver Unit
  • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
  • 1 or 2 DVI-D Cables, M/M 1.8m (6 ft.)
  • 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
  • 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
  • 2 x Deskmounting Brackets (with screws)
Country of Origin Taiwan
TAA Compliant Yes
Warranty
Limited Warranty 2 Year
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
