BLACK BOX

BLACK BOX LGC210A-R2 MEDIA CONVERTER 10/100/1000 ETHERNET SFP

Mfg Part Number:  LGC210A-R2
Image may not reflect the actual item.
Price: $69.09
Quantity:
In Stock: 72
Last Updated: May 10, 2025
No Sales Tax except these states
, PO and Wire.
Extend your network
Meet your massive networking needs. This media converter lets you extend your copper-based network via fiber to a maximum distance of 80 km through the use of an SFP. Also, it's quick and easy to install.

Support multiple standards
It meets the standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100/1000BASE-TX, and 1000BASE-FX standards.

Status updates

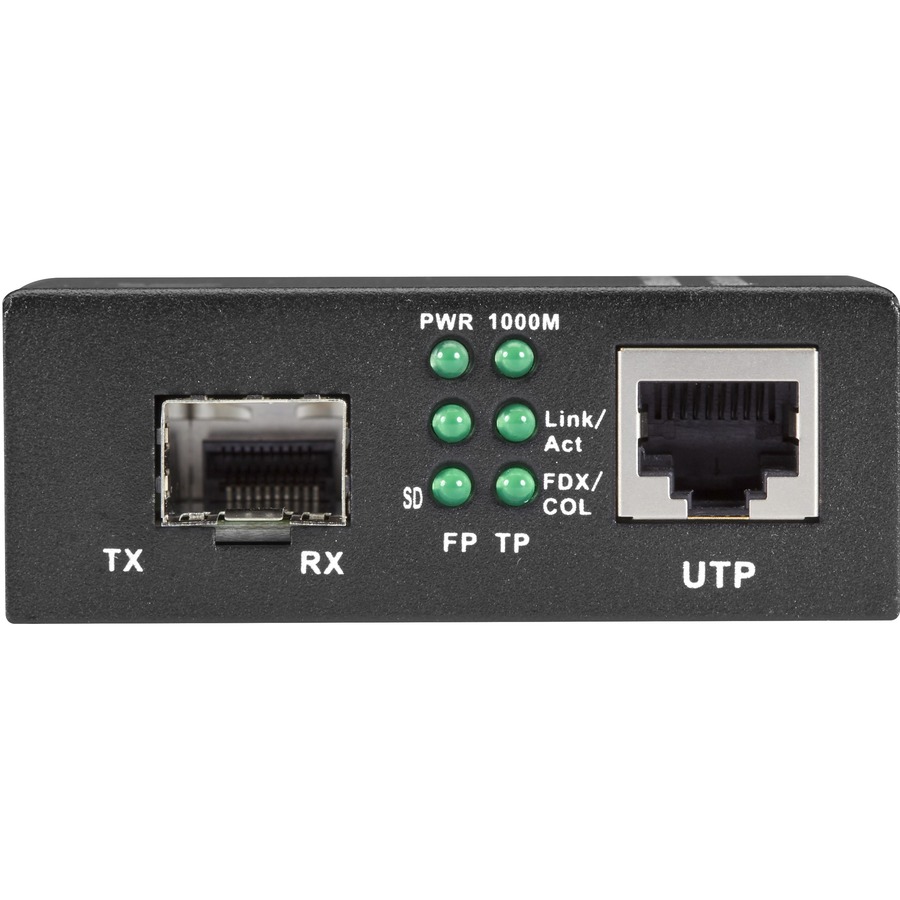

Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number LGC210A-R2
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Line Pure Networking
Product Name Pure Networking Transceiver/Media Converter
Packaged Quantity 1
Product Type Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Media & Performance
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Fiber Mode Supported Single-mode
Fiber Mode Supported Multi-mode
Maximum Distance Supported 0.10 km
Fiber Optic Cable Core/Cladding Specification 62.5/125 µm
Fiber Optic Cable Core/Cladding Specification 50/125 µm
Fiber Optic Cable Core/Cladding Specification 10/125 µm
Fiber Optic Cable Core/Cladding Specification 9/125 µm
Fiber Optic Cable Core/Cladding Specification 8.3/125 µm
I/O Expansions
Total Number of Expansion Slots 1
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Technology 1000Base-FX
Network Technology 10/100/1000Base-TX
Power Description
Power Source Power Adapter
Plug/Connector Type Barrel
Frequency 60 Hz
Frequency 50 Hz
Physical Characteristics
Form Factor Rack-mountable
Form Factor Standalone
Height 1.1"
Width 1.8"
Depth 7.8"
Weight (Approximate) 2.56 lb
Miscellaneous

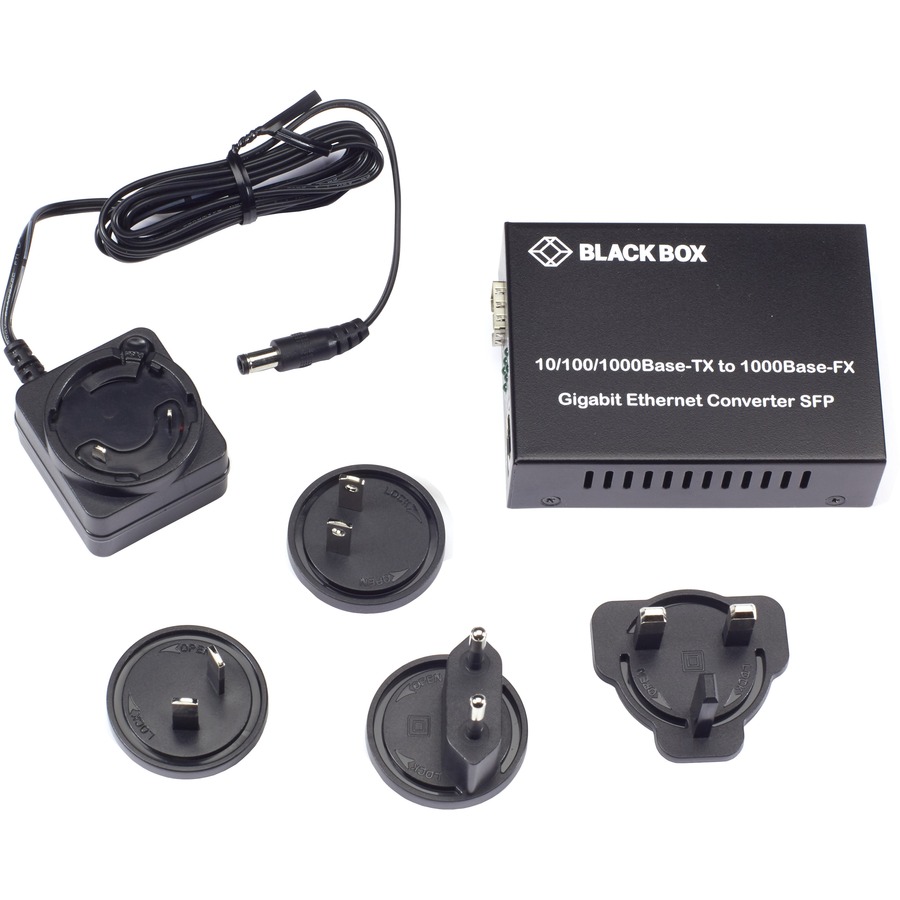

Package Contents
  • Pure Networking Transceiver/Media Converter
  • 1 x 5-VDC Power Adapter
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Warranty
Limited Warranty 1 Year
Additional Warranty Information 45 Day Standard Returns Policy
product information
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
