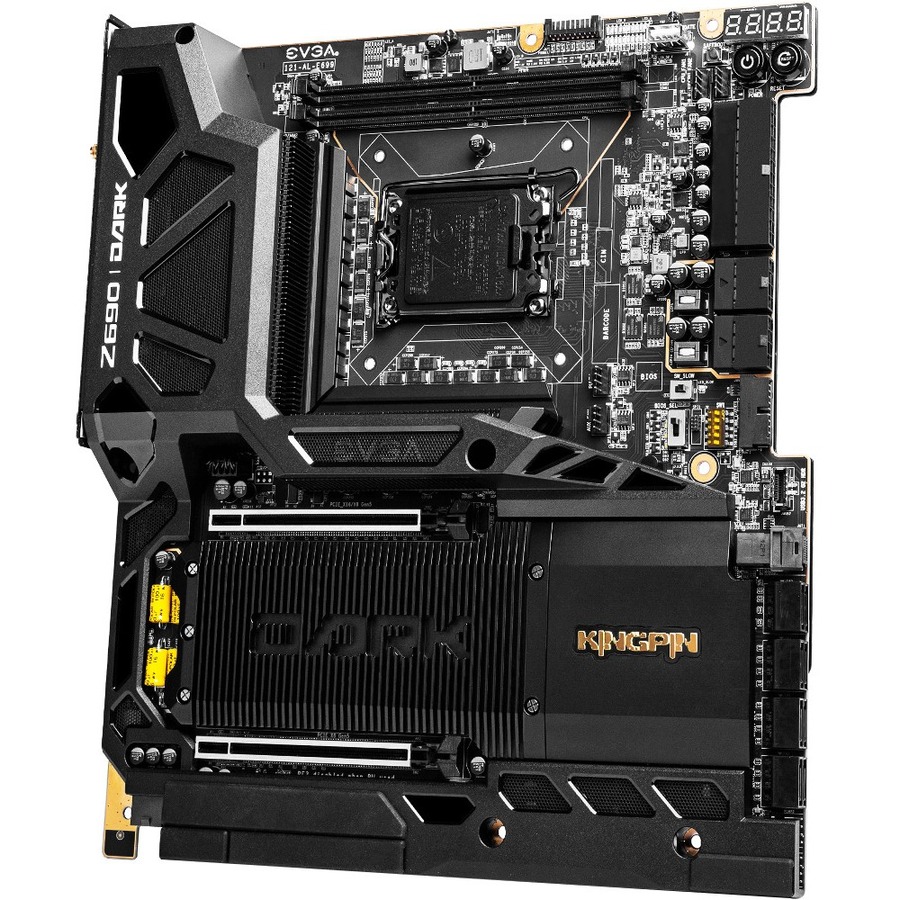

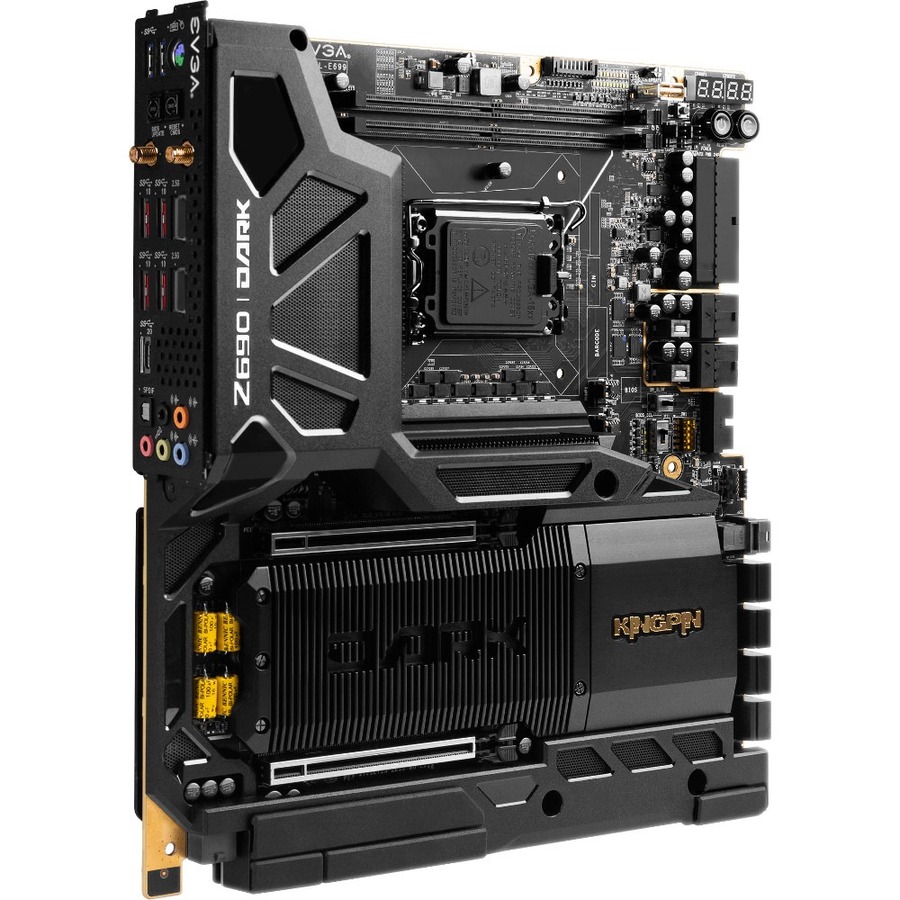

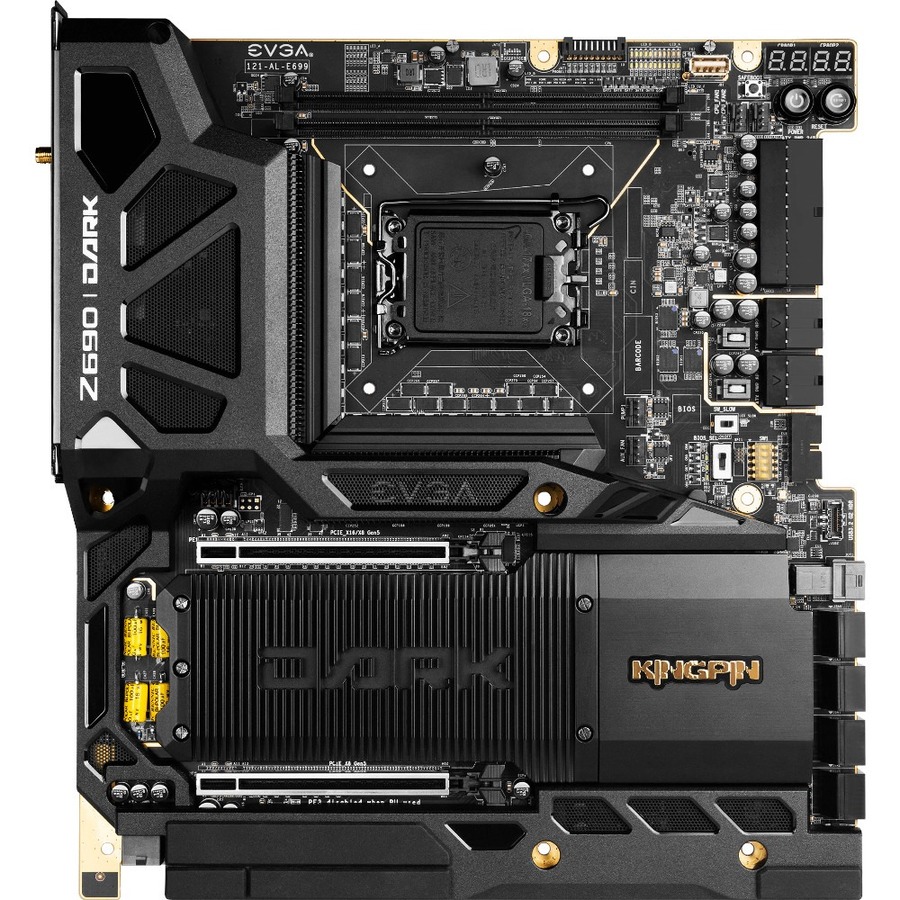

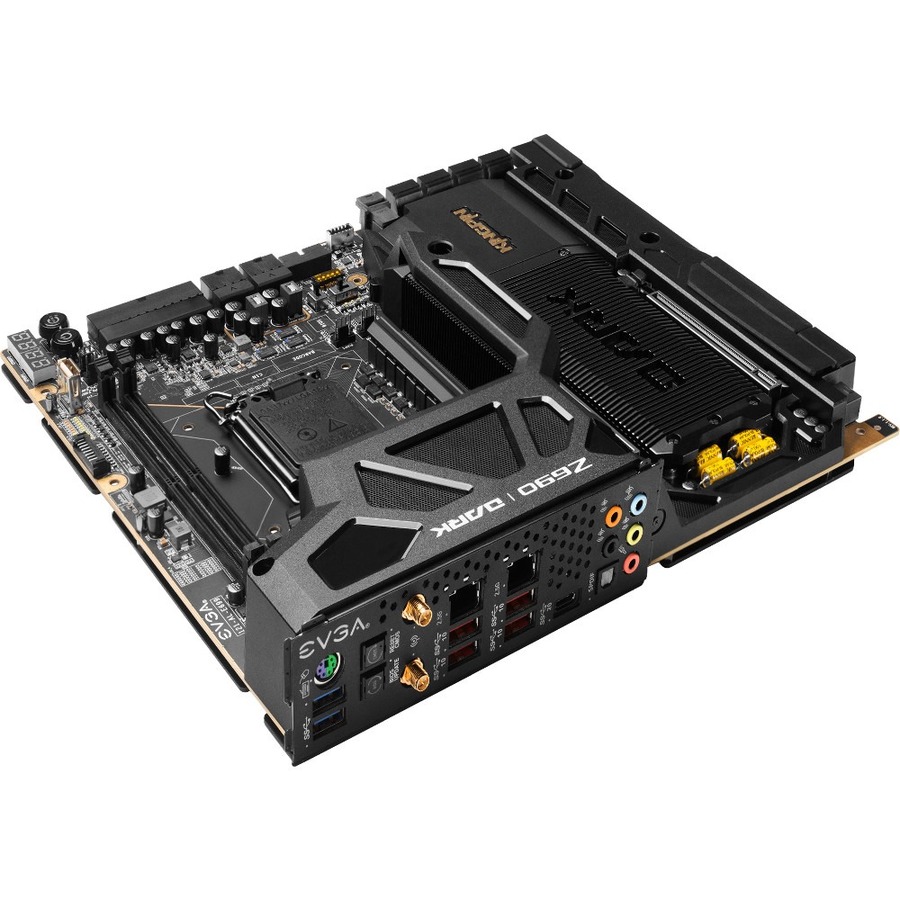

EVGA DARK motherboards blaze the trail for other boards to follow, and the Z690 DARK K|NGP|N is no exception. The ability to destroy world records is insignificant next to the power of a 21-phase VRM and a 10-layer PCB - capable of driving the most powerful 12th Gen Intel® Core™ processors. With support for 64GB of DDR5 memory at up to 6600MHz+(OC), PCIe Gen5, and PCIe Gen4 M.2 NVMe SSDs, a new DARK age of overclocking will rise as quickly as new hardware becomes available. The Z690 DARK K|NGP|N is today's choice for the future of overclocking and gaming.
Main Specification
| General Information | |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 121-AL-E699-KR |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Model | Z690 DARK K|NGP|N |
| Product Name | Z690 DARK K|NGP|N Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Core |
| Multi GPU Supported | SLI |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 6600 MHz |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 5 |
| Number of Onboard USB 3.2 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 10.9" |
| Miscellaneous | |

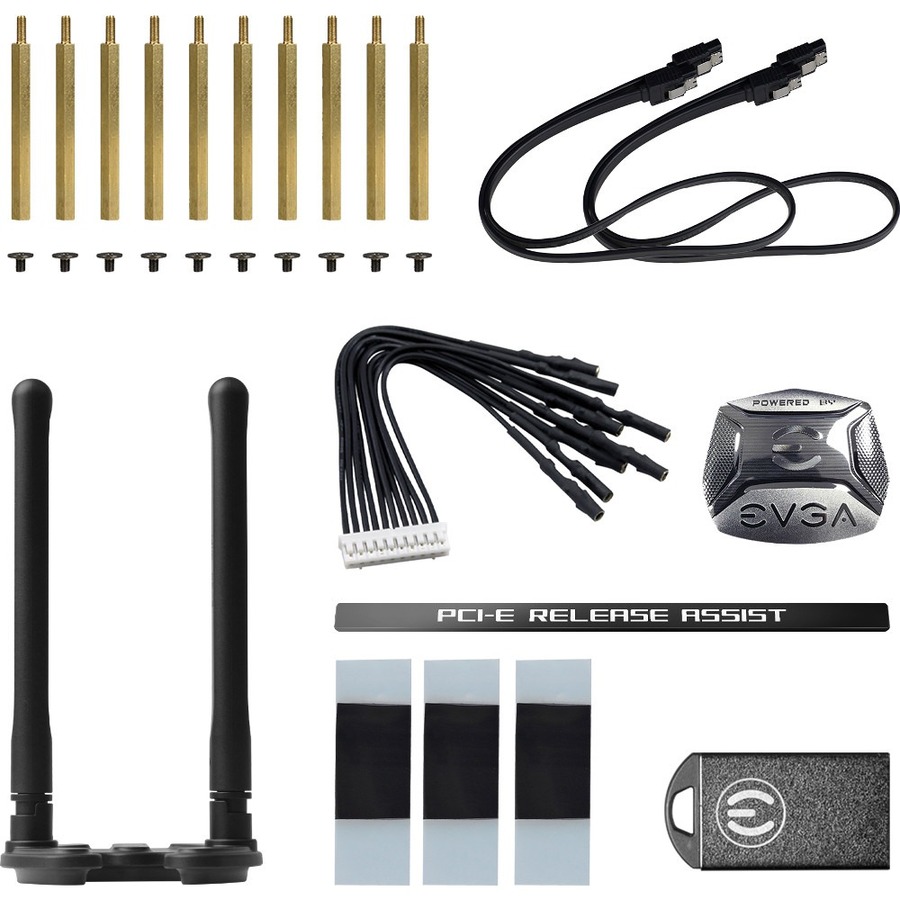

| Package Contents |
|
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year limited warranty which covers parts and labor |
