DATALOGIC

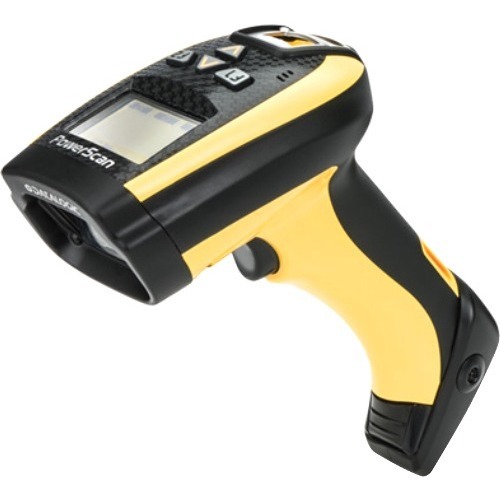

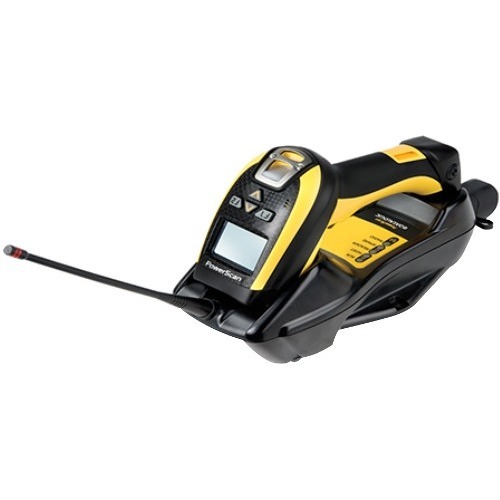

PM9501-910RBK20 DATALOGIC POWERSCAN PM9501 CORDLESS BARCODE SCANNER

Mfg Part Number:  PM9501-910RBK20
Image may not reflect the actual item.
Price: $1,209.18 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 24, 2025
No Sales Tax except these states
, PO and Wire.

Enhance your user experience

The range-topping PowerScan 9500 series of corded and cordless handheld scanners from Datalogic are designed and built for the most demanding applications and environments. These feature-rich 1D and 2D imagers offer rugged build quality for use in Manufacturing, Transportation & Logistics, Retail, and Healthcare. Outstanding robustness and excellent reading performance are the key reasons for the long-standing success of the PowerScan 9500 model variants, providing speed and reliability when managing goods and tracking parts or materials. The omnidirectional and long-range scanning capabilities let you read all types of codes from any angle, with perfect good-read feedback every time. The PowerScan DPM models include the latest optics and software from Datalogic, to make the reading of codes with DPM easier and more intuitive. There are enough connectivity and networking options to suit all your needs. Your job is simple: aim, trigger, decode.

Keep on working

The PowerScan 9500 series performance is unmatched in the handheld scanner sector. Each unit is built to last and the model is tested to an incredible 10 million trigger hits. You can work comfortably from shift to shift, with the full knowledge that the IP65 rating will keep you free from particulate contamination and water ingress, as well as the ability to withstand at least 50 drops onto concrete from a height of 2 m. This resilience ensures that you get the lowest possible total cost of ownership as your PowerScan continues to perform day in and day out. The scanner window, cradle contacts, and battery are all easily replaceable in the field so that you can keep on working with minimal disruption. The PowerScan 9500 range is the only scanner you will need.

Focus on technology

The PowerScan 9500 range is extensive enough to cover the most diverse applications. Whether you require a wired or cordless model, with or without physical keys, or require long distance code reading capability, there is a model to suit your needs. Datalogic has equipped the PowerScan 9500 series with 3GL (Three Green Lights) technology to ensure optimum good-read feedback. With the unique Green Spot visual feedback on the object you are scanning, you also have a direct visual green indicator feedback on the top and rear of the unit. All of this is accompanied with a loud beep when the operator is working in conditions where visibility is poor. The reading performance is further enhanced on models equipped with liquid lens technology for reading of combined standard, wide, and high-density codes.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number PM9501-910RBK20
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line PowerScan
Product Series 9500
Product Model PM9501
Product Name PowerScan PM9501 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Wireless
Scanning Capability 2D
Scanning Capability 1D
Barcode Symbology Supported 1D :
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Image Sensor Type Imager
Scan Pattern Omni-directional
Scanner Range Standard Range
Display Screen Yes
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 40°
Reading Angle (Pitch) 40°
Reading Angle (Roll) 360°
Image Formats TIFF
Image Formats BMP
Image Formats JPEG
Maximum Ambient Light 100000 lux
Drop Specification Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface
All models: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 7.5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 10 mil
Network & Communication
Radio Frequency Yes
Interfaces/Ports
Host Interface Ethernet
Host Interface USB
Host Interface Keyboard Wedge
Host Interface Serial
Battery Information
Battery Included Yes
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color Black
Product Color Yellow
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage Manufacturing
Application/Usage Ticketing
Application/Usage Warehouse
Application/Usage Logistics
Application/Usage Picking
Application/Usage Asset Tracking
Application/Usage Inventory
