HPE R8R48A#ABA ARUBA ION 1430 16G 124W SW US EN PL-I5

Aruba Instant On 1430 Switch Series

Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R8R48A#ABA
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	Instant On
Product Series	1430

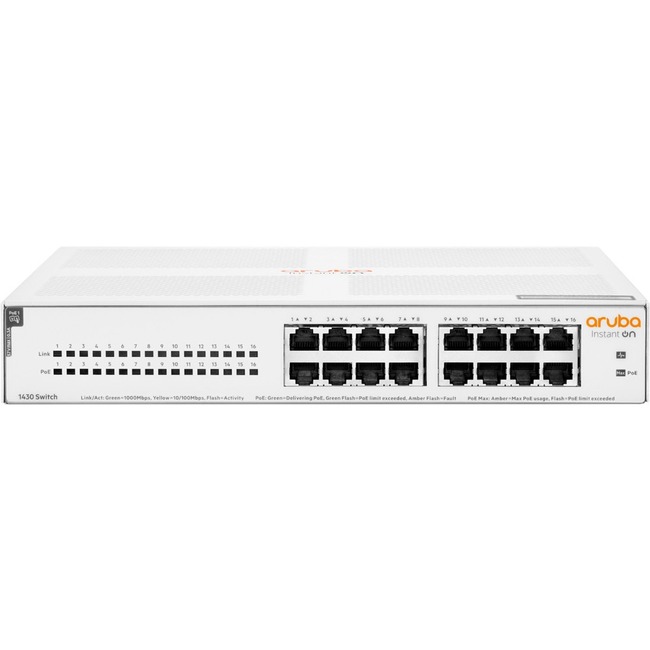

Product Name	Instant On 1430 16G Class4 PoE 124W Switch
Product Type	Ethernet Switch
Technical Information
Features	Fanless
Interfaces/Ports
Total Number of Network Ports	16
Network (RJ-45)	Yes
Port/Expansion Slot Details	16 x Gigabit Ethernet PoE
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.3i
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1x
Management & Protocols
Manageable	No
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	124 W
Input Voltage	230 V AC
Input Voltage	120 V AC
Frequency	50 Hz
Frequency	60 Hz
Power Source	Power Supply
Power Consumption	147 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Under Table
Form Factor	Wall Mountable
Form Factor	Surface Mount
Form Factor	Rack-mountable
Form Factor	Table Top
Form Factor	Cabinet Mount
Height	1.7"
Width	10.8"
Depth	10.2"
Weight (Approximate)	4.60 lb
Miscellaneous
Package Contents	Instant On 1430 16G Class4 PoE 124W Switch 2-post Rack Kit Brackets
Application/Usage	Business
Warranty
Limited Warranty	Lifetime
Additional Warranty Information	24 x 7 Chat Support for Entire Warranty Period
