BUSLINK

BUSLINK CSE-80TB4-SU3M1 80TB HDD MODE 1 KEY 256-BIT AES SINGLE KEY HARDWARE-ENCRYPTED 4-BAY RAID 0/3/5/1

Mfg Part Number:  CSE-80TB4-SU3M1
Image may not reflect the actual item.
Price: $4,963.12 + Free Shipping
Quantity:
More to Come
Last Updated: Jul 19, 2025
No Sales Tax except these states
, PO and Wire.

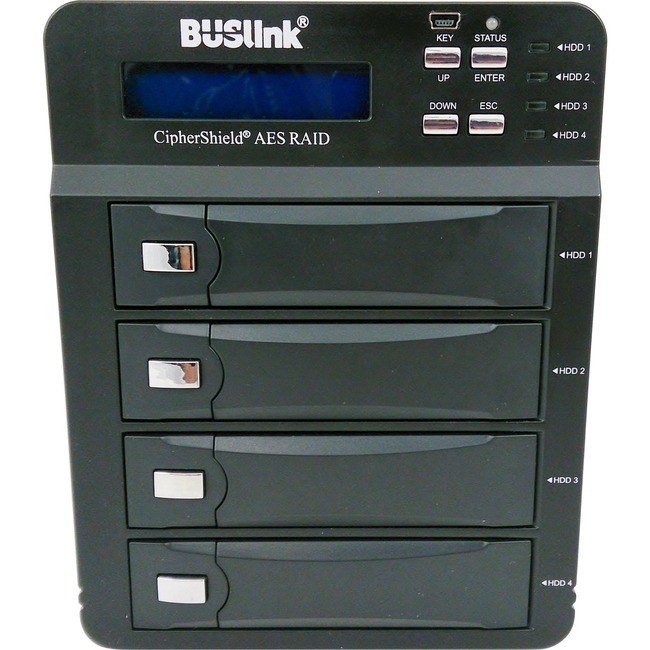

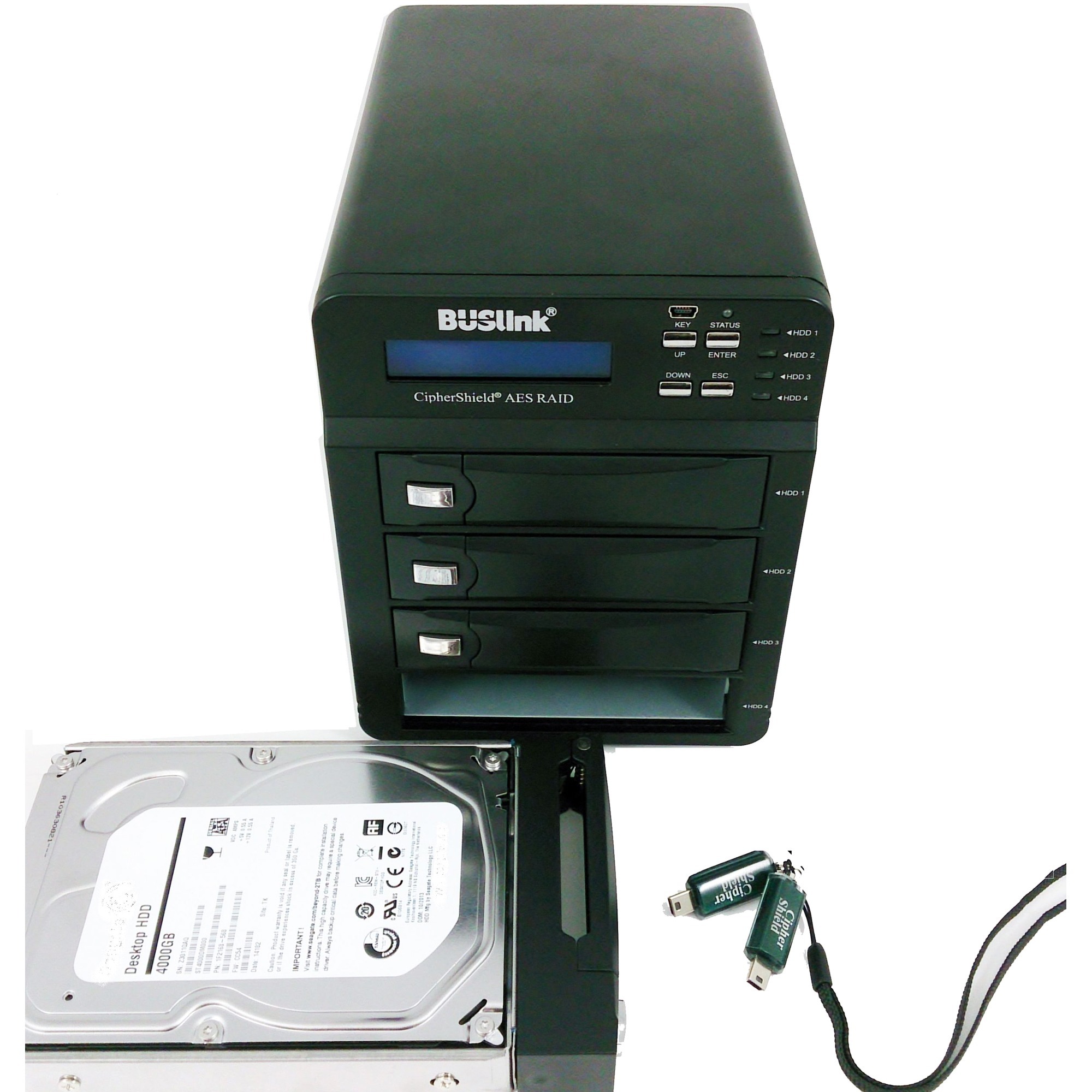

This BUSlink 4-Bay RAID hard drive supports large capacity and USB 3.2 Gen 1/eSATA interface. It supports Intelligent RAID function: RAID 0, RAID 3, RAID 5, RAID 10, and Large. Removable HDD trays support hot-plug replacement of drives (only for RAID with redundancy mode). HDD intelligent sleep function is supported. The LCM display and buttons support the convenient setting of RAID modes and status display. The optional password allows locking of RAID settings. The cooling fan maintains a safe operating temperature. Skidproof and shockproof rubber feet mat ensure safe operation.

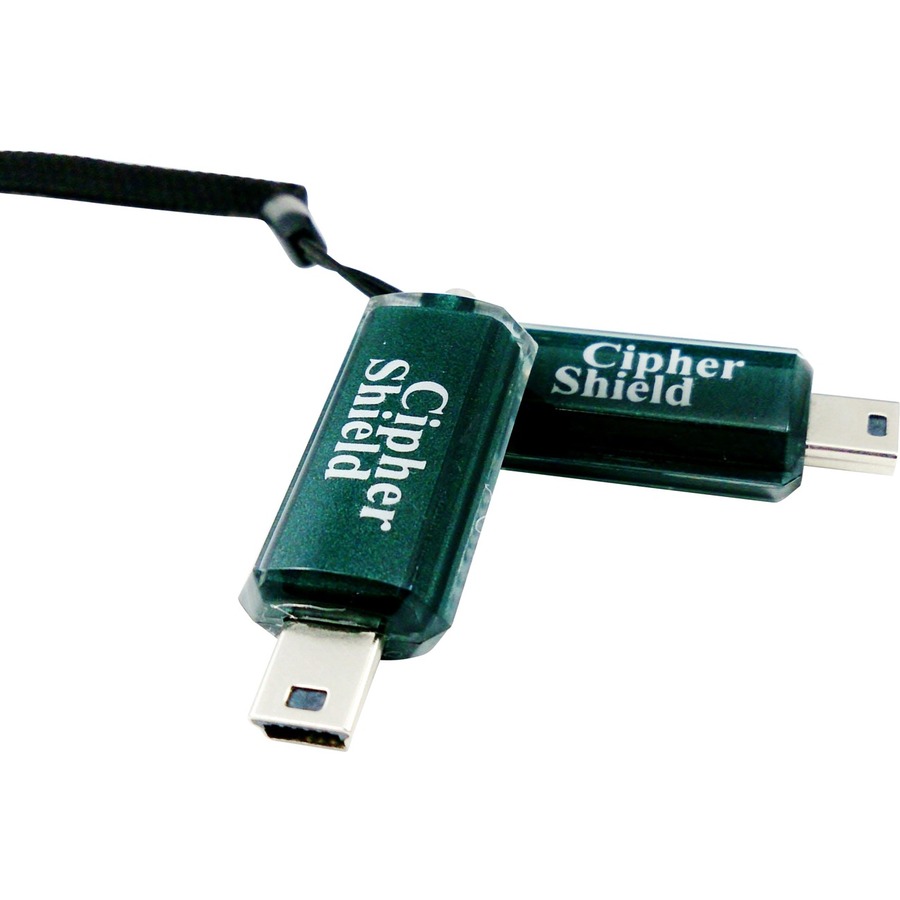

CipherShield drive safeguards and protects classified information when they are too important to be left in the hand of one individual. To gain access to the drive, authentication will be based on one unique Cipherkey. It requires one key to be plugged in all the time while working with the drive. It is like getting a safe deposit box that takes one key to open. It is suitable for group settings where more than one individual is working on highly confidential projects. i.e. blueprints for the company's next new products, top-secret programs, highly confidential legal cases, sensitive customer records, and financial information.

Smart Insert with CipherKey allows you to have total control of your data with two intelligent key insertion modes. Standard design with all CipherShield drives, mode 0 with hotplug mechanism enables you to authenticate and access the drive when the CipherKey is plugged in. When the key is removed, all data within the drive are encrypted. Mode 1 is better utilized for a large data backup job where you don't want to be tied waiting for the data transfer to be completed. The CipherShield drive is authenticated by plugging the key in once and removed. The drive runs without the need to have the key connected at all times. The risk of theft is no longer a concern because when a USB or power cable is unplugged, the drive will automatically lock down its content. A limited number of models available, the rest can be special ordered from Buslink or specify the key mode 1 when ordering from resellers or your preferred IT solution providers.

Main Specification
General Information
Manufacturer Buslink Media
Manufacturer Part Number CSE-80TB4-SU3M1
Manufacturer Website Address http://www.buslink.com
Brand Name Buslink
Product Line CipherShield
Product Model CSE-80TB4-SU3M1
Product Name CipherShield CSE-80TB4-SU3M1 DAS Storage System
Product Type DAS Storage System
Storage
Number of Hard Drives Supported 4
Total Hard Drive Capacity Installed 8 TB
Hard Drive Interface Serial ATA
Hard Drive Configuration 4 x 2TB
Number of Solid State Drive Supported 4
Total Solid State Drive Capacity Supported 8 TB
I/O Expansions
Number of Total Expansion Bays 4
Number of 3.5" Bays 4
Controllers
Controller Type Serial ATA
RAID Supported Yes
RAID Levels 0, 3, 5, 10, LARGE

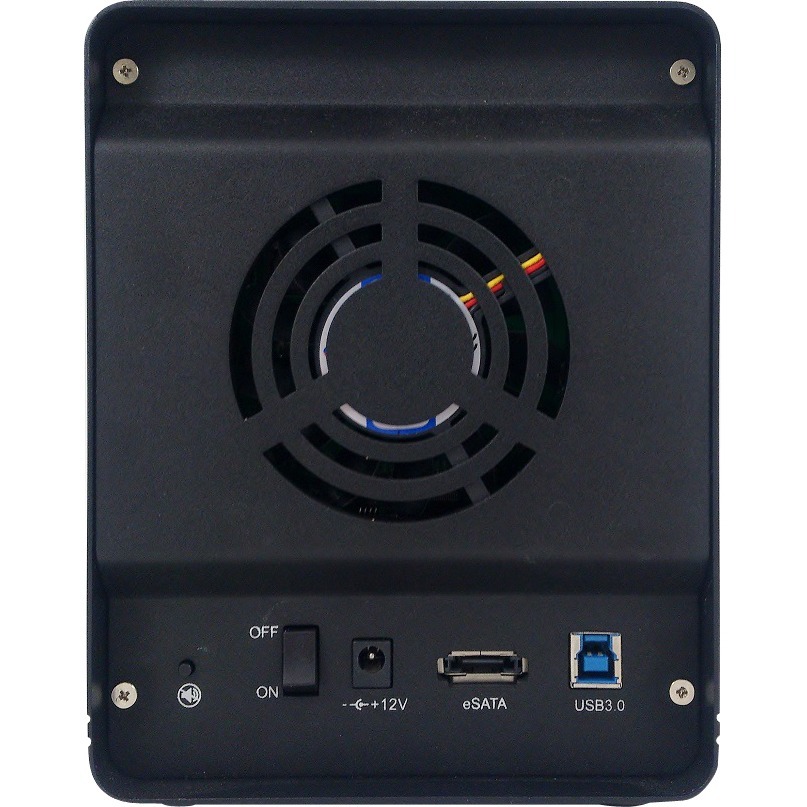

Interfaces/Ports
Drive Interface Serial ATA
Host Interface eSATA
Host Interface USB 3.2 (Gen 1)
eSATA Yes
Physical Characteristics
Form Factor Desktop
Weight (Approximate) 12.40 lb
Miscellaneous
Package Contents
  • CipherShield CSE-80TB4-SU3M1 DAS Storage System
  • USB 3.2 Gen 1 A to B Cable
  • eSATA Cable
  • 2 Cipherkeys
  • 12V 4-6A DC Full range switching Power Adapter
  • User Manual
TAA Compliant Yes
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
