Multiple Connectivity Port

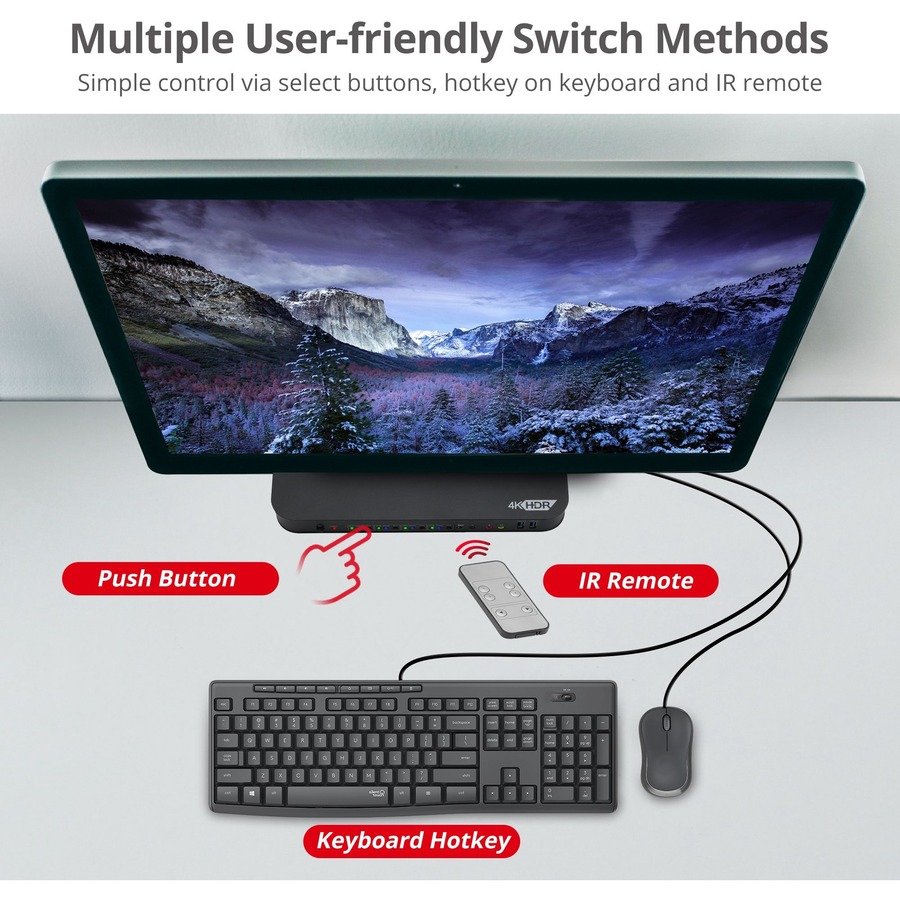

Comes with four HDMI video input ports, four USB 3.2 Gen 1 Type-B ports (Host), twelve 3.5mm phone jacks to connect stereo speakers/earphone and microphone, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A)
Applications
| General Information | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-KV0F11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | 4x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Features | Plug and Play |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| USB 2.0 | Yes |
| HDMI | Yes |
| Number of USB Ports | 8 |
| Number of HDMI Ports | 5 |
| Power Description | |
| Input Voltage Range | 100-240VAC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |

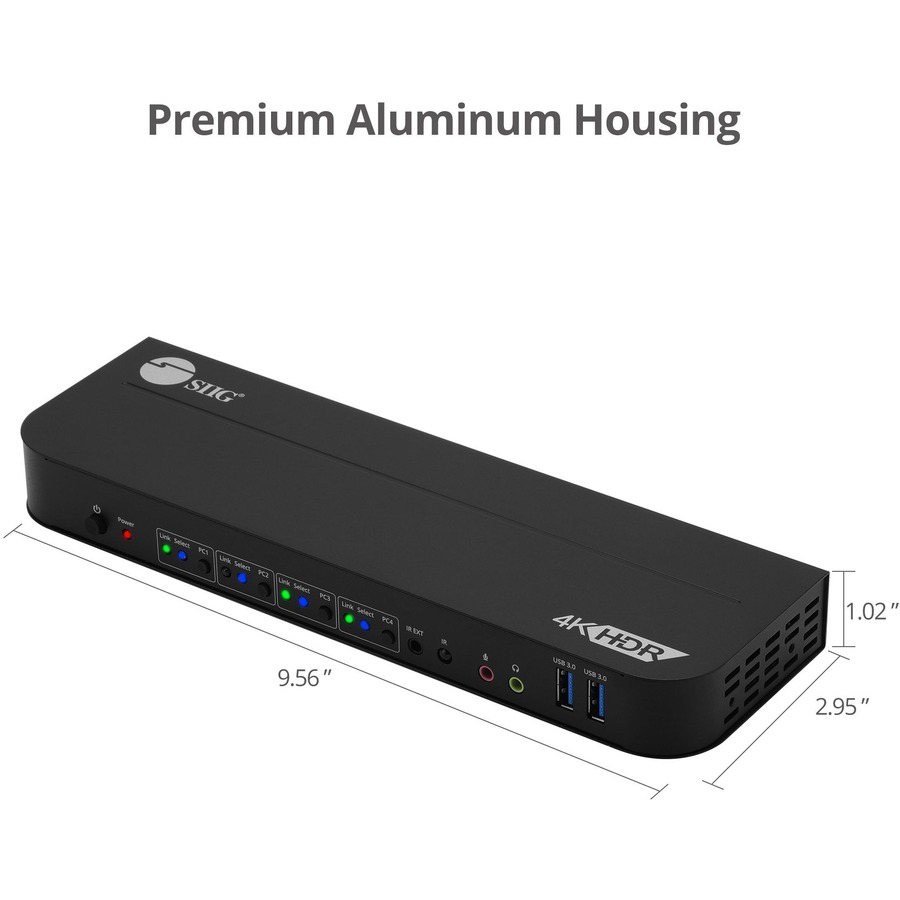

| Height | 1" |
| Width | 9.6" |
| Depth | 3" |
| Weight (Approximate) | 1.11 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
