LENOVO  Mfg Mini-Store

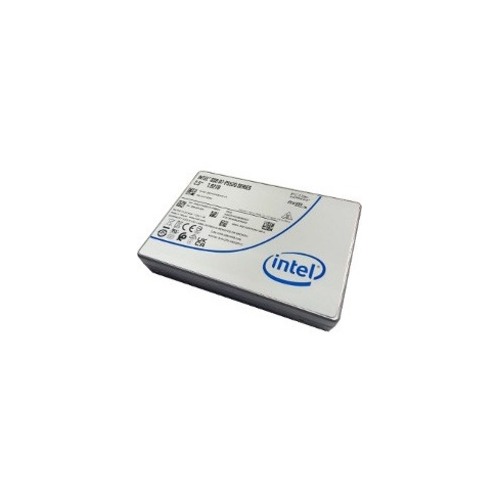

LENOVO 4XB7A13942 THINKSYSTEM 2.5 U.2 P5520 3.84TB READ INTENSIVE NVME PCIE 4.0

Mfg Part Number:  4XB7A13942
Image may not reflect the actual item.
Price: $6,340.71 + Free Shipping
Quantity:
More to Come
Last Updated: May 27, 2025
No Sales Tax except these states
, PO and Wire.

The P5520 SSDs are part of the growing family of PCIe 4.0 SSDs that match the performance of the ThinkSystem V2 family of servers. By having a Gen 4 host interface, sequential performance is doubled compared to Gen 3 SSDs. The NVMe host interface also maximizes flash storage performance and minimizes latency. The P5520 SSDs drives offer 40% and 60% improvements in latency over SAS and SATA SSDs respectively.

Lenovo Read Intensive SSDs like the P5520 SSDs are suitable for read-intensive and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.

Main Specification
General Information
Manufacturer Lenovo Group Limited
Manufacturer Part Number 4XB7A13942
Manufacturer Website Address http://www.lenovo.com/us/en/
Brand Name Lenovo
Product Series D7-P5520
Product Name ThinkSystem 2.5" U.2 P5520 3.84TB Read Intensive NVMe PCIe 4.0 x4 HS SSD
Packaged Quantity 1
Product Type Solid State Drive
Technical Information
Storage Capacity 3.84 TB
Drive Performance
Maximum Read Transfer Rate 6860.80 MB/s
Maximum Write Transfer Rate 3686.40 MB/s
Random 4KB Read 1000000IOPS
Random 4KB Write 200000IOPS
Endurance (DWPD) 1
Endurance (TBW) 7168 TB
Endurance Type Read Intensive
Network & Communication
Wireless LAN No
Interfaces/Ports
Drive Interface U.2
Drive Interface Standard PCI Express NVMe 4.0 x4
Physical Characteristics
Drive Type Internal
Form Factor 2.5"
Hot Swappable Yes
Height 0.6"
Width 2.8"
Depth 3.9"
Weight (Approximate) 5.15 oz
Miscellaneous
Package Contents
  • ThinkSystem 2.5" U.2 P5520 3.84TB Read Intensive NVMe PCIe 4.0 x4 HS SSD
  • Publication Package
Compatibility

ThinkSystem Servers:

  • ST650 V2 (7Z75 / 7Z74)
  • SR630 V2 (7Z70 / 7Z71)
  • SR650 V2 (7Z72 / 7Z73)
  • SR670 V2 (7Z22 / 7Z23)
  • SR645 (7D2Y / 7D2X)
  • SR665 (7D2W / 7D2V)
  • SN550 V2 (7Z69)
Device Supported Server
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Additional Warranty Information The P5520 SSDs carry a 1-year, customer-replaceable unit (CRU) limited warranty.
