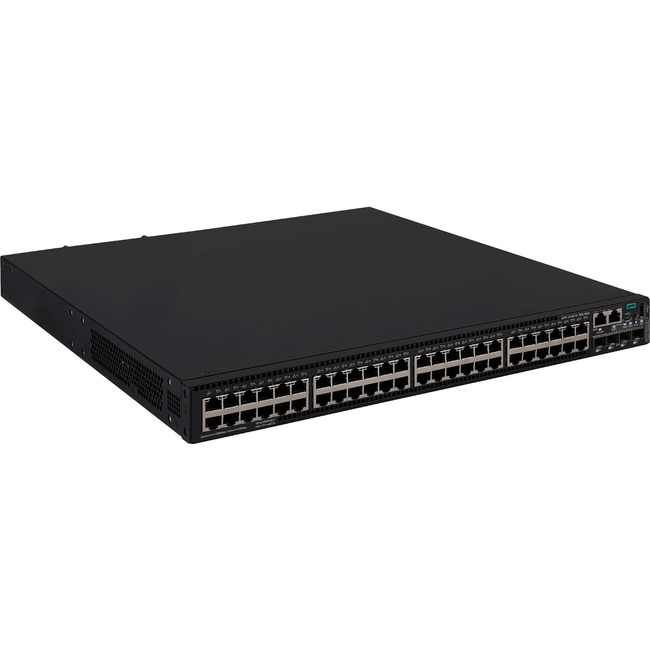

R9L62A HPE 5140 48G 4SFP+ 1-SLOT HI SW

The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.

These switches offer high speed connectivity and flexibility with 10GbE uplinks, and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.

This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC), provides embedded network management, enhanced network visibility and automation.

FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches

• The HPE FlexNetwork 5140 HI Switch series uses Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler, flatter, more agile and resilient networks.
• Supports 10GbE uplinks, static and RIP routing, PoE+, ACLs, IPv6 for improved and cost-effective network performance.
• DRNI, enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also provides access to the aggregate bandwidth and simplifies network topology by virtualizing two physical devices into a logical device.
• iNQA helps in measuring network packet loss performance, forward, reverse, and two-way packet loss, including lost number of messages and bytes, message loss and byte loss rate.
• Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network switch delivering up to 1440 Watts of PoE+ for powered cameras, phones, and wireless Access Points.

Robust Quality of Service (QoS)

• The HPE FlexNetwork 5140 HI Switch series supports advanced classifier based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or the entire switch.
• Provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR) and SP+WRR.
• Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R9L62A
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	FlexNetwork
Product Series	5140 HI
Product Model	5140 48G 4SFP+ HI
Product Name	FlexNetwork 5140 48G 4SFP+ HI Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	48
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	1 x Expansion Slot
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	48 x Gigabit Ethernet Network
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	10 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Network Technology	10GBase-X
Network Technology	10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots	5.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.1v
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.1ak
Networking Standards	IEEE 802.1ad
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1ae
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.1AX
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3i
Management & Protocols
Manageable	Yes
Power Description
Input Voltage	120 V AC
Input Voltage	60 V DC
Input Voltage	230 V AC
Input Voltage	48 V DC
Frequency	60 Hz
Frequency	50 Hz
Power Source	Power Supply
Number of Power Supplies Supported	2
Power Consumption	96 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Cabinet Mount
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	14.2"
Weight (Approximate)	15.43 lb
