VERTIV
VERTIV EDGE-1500IRT2UXL EDGE 1500VA/1350W 230V UPS
Mfg Part Number: EDGE-1500IRT2UXL , Item #: 4646114

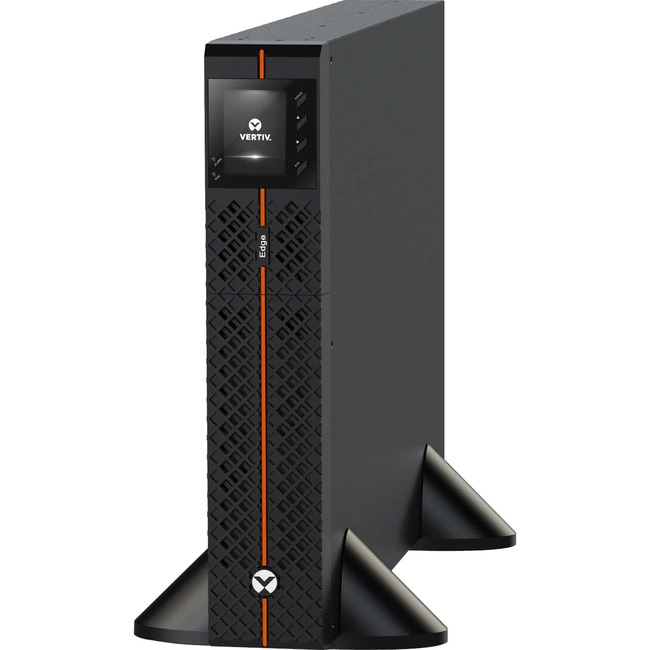

Image may not reflect the actual item.
Price: $1,210.00
+ Free Shipping
Quantity:
In Stock: 7
Last Updated: May 10, 2024
No Sales Tax except these states
, PO and Wire.
Reliable UPS Protection At The All-Important Network Edge
The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things, cloud computing and other applications that require localized compute power, networking services and data storage | all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers, so must be afforded similar power protection.
The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable, efficient power protection for server and networking equipment. It comes in mini-tower, rack tower and rack-mount form factors, with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF), enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs), providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable, with a colorful, graphical LCD screen for easy, intuitive on-site management, as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 3-year warranty for both electronics and batteries protects your UPS investment.
The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things, cloud computing and other applications that require localized compute power, networking services and data storage | all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers, so must be afforded similar power protection.
The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable, efficient power protection for server and networking equipment. It comes in mini-tower, rack tower and rack-mount form factors, with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF), enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs), providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable, with a colorful, graphical LCD screen for easy, intuitive on-site management, as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 3-year warranty for both electronics and batteries protects your UPS investment.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | EDGE-1500IRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | VERTIV |
| Product Line | EDGE |
| Product Model | EDGE-1500IRT2UXL |
| Product Name | EDGE-1500IRT2UXL 1500VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | IOT Device |
| Application/Usage | Critical System |
| Application/Usage | Business |
| Application/Usage | Server |
| Application/Usage | Edge Computing |
| Application/Usage | Data Storage |
| Application/Usage | Data Center |
| Application/Usage | Network |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Output Voltage | 200 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Input Frequency | 65 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Management | |
| Network Management | SNMP/Webcard |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Number of External Battery Cabinets | 6 |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 45 dB |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 20.1" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 44.09 lb |
| Miscellaneous | |
| Energy Star | No |
| TAA Compliant | No |
