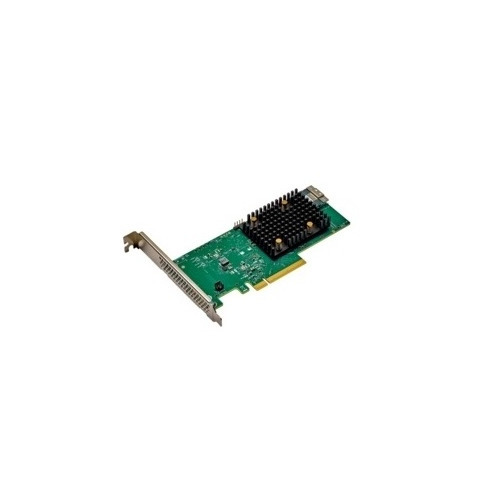

LSI Logic CC 05-50134-03 MegaRAID 9540-8i 8PT 12Gb s SAS 16GT s PCIe Retail
Mfg Part Number: 05-50134-03 , Item #: 4641376
, PO and Wire.
The MegaRAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9540-8i adapter, based on the SAS3808 PCIe 4.0 x8 IO Controller (IOC) device, delivers twice the performance of previous generations.
Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9540-8i Tri-Mode Storage Adapter is a PCIe Gen 4.0 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.
The adapters' Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enable the operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.
| General Information | |
| Manufacturer | Broadcom Corporation |
| Manufacturer Part Number | 05-50134-03 |
| Manufacturer Website Address | https://www.broadcom.com |
| Brand Name | Broadcom |
| Product Line | MegaRAID |
| Product Series | 9500 |
| Product Model | 9540-8i |
| Product Name | MegaRAID 9540-8i |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 00 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Operating System Supported | VMware ESXi |
| Operating System Supported | Oracle Enterprise Linux |
| Operating System Supported | Fedora |
| Operating System Supported | Citrix XenServer |
| Operating System Supported | SUSE Linux |
| Operating System Supported | VMware vSphere |
| Operating System Supported | Windows |
| Operating System Supported | Ubuntu Linux |
| Operating System Supported | CentOS |
| Operating System Supported | FreeBSD OS |
| Operating System Supported | Debian Linux |
| Operating System Supported | Red Hat Enterprise Linux |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 1 x 8 SFF-8654 |
| Physical Characteristics | |
| Height | 2.7" |
| Length | 6.1" |
| Form Factor | Plug-in Card |
| Card Height | Full-height |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Platform Supported | Linux |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
