LSI LOGIC
LSI Logic CC 05-50134-00 9500-16i 16PT Int 12Gb s Tri mode SATA+SAS+PCIe RTL
Mfg Part Number: 05-50134-00 , Item #: 4641366

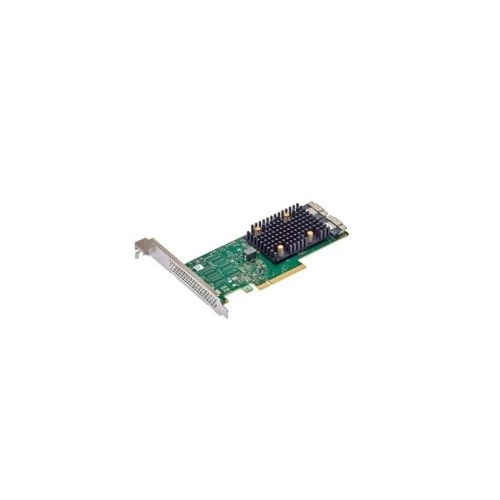

Image may not reflect the actual item.
Price: $963.13
+ Free Shipping
Quantity:
In Stock: 39
Last Updated: Jul 04, 2025
No Sales Tax except these states
, PO and Wire.
The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.
- Connects up to 1024 SAS/SATA devices or 32 NVMe devices
- Provides maximum connectivity and performance for high-end servers and applications
- Support critical applications with the bandwidth of PCIe® 4.0 connectivity
- Universal Bay Management (UBM) Ready
Main Specification
| General Information | |
| Manufacturer | Broadcom Corporation |
| Manufacturer Part Number | 05-50134-00 |
| Manufacturer Website Address | https://www.broadcom.com |
| Brand Name | Broadcom |
| Product Line | MegaRAID |
| Product Series | 9500 |
| Product Model | 9500-16i |
| Product Name | HBA 9500-16i Tri-Mode Storage Adapter |
| Packaged Quantity | 1 |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Device Supported | Server |
| Device Supported | Storage System |
| Operating System Supported | VMware ESXi |
| Operating System Supported | Debian Linux |
| Operating System Supported | Oracle Enterprise Linux |
| Operating System Supported | Fedora |
| Operating System Supported | Citrix XenServer |
| Operating System Supported | SUSE Linux |
| Operating System Supported | Windows |
| Operating System Supported | Ubuntu Linux |
| Operating System Supported | CentOS |
| Operating System Supported | FreeBSD OS |
| Operating System Supported | VMware vSphere |
| Operating System Supported | Red Hat Enterprise Linux |
| Interfaces/Ports | |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Two x8 SFF-8654 |
| Physical Characteristics | |
| Height | 2.7" |
| Length | 6.1" |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Platform Supported | PC |
| Platform Supported | Linux |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
