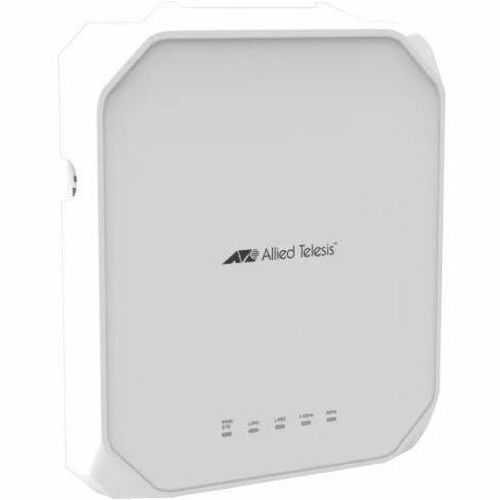

ALLIED TELESIS AT-TQ6602 GEN2-01 IEEE 802.11AX WIRELESS ACCESS POINT WITH DUAL BAND RADIOS AND EMBEDDED ANTENNA.

The TQ6000 GEN2 Series Wi-Fi 6 APs support multi-channel, single-channel (Channel Blanket) and hybrid operation (the simultaneous use of multichannel and Channel Blanket). This powerful solution combines maximum performance and seamless roaming to enable the most flexible wireless networks available, and the best possible user experience.

The TQ6702 GEN2 has one 4x4 2.4GHz and one 8x8 5GHz Wi-Fi 6 (802.11ax) radio, delivering a raw capacity of 4.8 Gigabits.

The TQ6602 GEN2 has one 4x4 2.4GHz and one 4x4 5GHz Wi-Fi 6 (802.11ax) radio, delivering a raw capacity of 3.55 Gigabits.

The power and efficiency of Wi-Fi 6, and Allied Telesis smart hybrid technologies, enable a wireless MultiDimensional Exchange (MDX). This allows user devices to be managed and tracked as they move not only around the building floor, but between floors too. The innovative MDX wireless solution enables user device tracking in real-time as well as historically for security and auditing purposes - and also supports restoring the wireless network to a past operational configuration if required.

The TQ6000 GEN2 Series support Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. A comprehensive featureset provides a superior solution for Enterprise businesses.

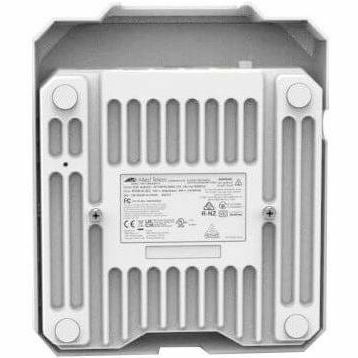

Flexible deployment options include desktop use, and wall or ceiling mounting. Power can be supplied by Power over Ethernet, or by an optional AC power adapter.

Key Features | Flexible Management

• The TQ6000 GEN2 Series can be managed in standalone mode using an intuitive web-based interface.
• Autonomous Wave Control (AWC) provide centralized management, and regularly analyses the wireless network, automatically optimizing AP settings to reduce interference and minimize coverage gaps-all with no user intervention.
• AWC wireless management is available on our Vista Manager EX network management platform, and from Vista Manager mini running on a number of switch and firewall products.

Channel Blanket Hybrid Operation

• The TQ6000 GEN2 Series support operation in multi-channel, single-channel (Channel Blanket) and hybrid (multi-channel and Channel Blanket) modes, for the most flexible wireless solution available.
• Multi-channel operation provides maximum throughput for high-bandwidth clients, while Channel Blanket operation supports seamless roaming for dynamic environments like warehouses and hospitals, as all APs appear as a single virtual AP.
• Hybrid mode combines the best of both architectures, enabling an innovative wireless solution that maximizes performance for a superior user experience.
• The high throughput of Wi-Fi 6 further increases the performance wireless networks, and with AWC Channel Blanket, the TQ6602 GEN2 and TQ6702 GEN2 can combine their radio signals to create a powerful single virtual AP environment for user devices.

AWC-SC (Smart Connect)

• AWC-SC enables plug-and-play wireless network growth, as new APs only need a power connection, and will then automatically create resilient wireless uplink connections to other APs.
• AWC-SC supports dynamic environments with multi-path uplinks, and provides an ideal solution for one-time deployments like conferences
