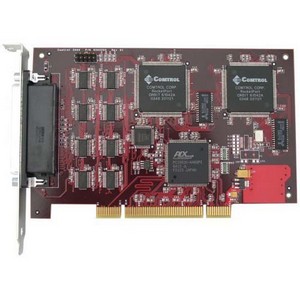

PEPPERL+FUCHS 99425-1 Comtrol RocketPort Plus uPCI Quad DB9 Multiport Serial Adapter

The Comtrol RocketPort Plus uPCI Quad/DB9 serial port expansion card provides four "native" serial ports utilizing a single PCI card slot and is compatible with all current 3.3 and 5.0 Volt PCI bus architectures.

General Information
Manufacturer	Comtrol Corporation
Manufacturer Part Number	99425-1
Manufacturer Website Address	http://www.comtrol.com
Brand Name	Comtrol
Product Line	RocketPort Plus
Product Name	RocketPort Plus uPCI Quad DB9 Multiport Serial Adapter
Product Type	Multiport Serial Adapter
Technical Information
Host Interface	Universal PCI
Maximum Data Transfer Rate	7.20 Mbit/s
Platform Supported	PC
Interfaces/Ports
Ports Expandability	4 x DB-9 RS-232 - Serial
Physical Characteristics
Form Factor	Plug-in Card
Height	4"
Width	6.3"
Weight (Approximate)	1.05 lb
Warranty
Limited Warranty	5 Year

The Comtrol RocketPort Plus uPCI Quad/DB9 serial port expansion card provides four "native" serial ports utilizing a single PCI card slot and is compatible with all current 3.3 and 5.0 Volt PCI bus architectures. The DB9 serial ports support RS-232 serial communications at speeds up to 921 Kbps. Every RocketPort serial card features the high-performance RocketPort ASIC chip, consisting of a dedicated 44MHz processor that minimizes host CPU utilization and larger transmit-and-receive buffers than those of 16550 UART chips used in standard PC serial ports and low-end serial cards. RocketPort ASIC technology enables these cards to outperform other serial expansion cards by handling the transmission of large amounts of data more reliably and efficiently. Additionally, RocketPort products do not require the assignment of interrupts, simplifying installation and eliminating conflicts with other server cards.

Device Type	Serial adapter - 4 ports
Form Factor	Plug-in card
Interface (Bus) Type	PCI
Bus Voltage	Universal (3.3 V & 5.0 V)
Depth	6.3 in
Height	4 in
Networking
Connectivity Technology	Wired
Data Link Protocol	RS-232
Data Transfer Rate	921.6 Kbps
Processor / Memory
Processor Clock Speed	44 MHz
Expansion / Connectivity
Interfaces	4 x serial - RS-232 - 9 pin D-Sub (DB-9)
Compatible Slots	1 x PCI
Miscellaneous
Cables Included	1 x serial cable ( external )
Compliant Standards	EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950 Third Edition, CISPR 22, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, CSA C22.2 No. 60950 Third Edition
Software / System Requirements
OS Required	Microsoft Windows NT 4.0, SCO OpenServer 5, Linux, QNX, FreeBSD 4.0, Microsoft Windows Server 2003, Microsoft Windows 98/ME/2000/XP, FreeBSD 5.0
Manufacturer Warranty
Service & Support	5 years warranty
Service & Support Details	Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	8 - 80%

Download DataSheet
