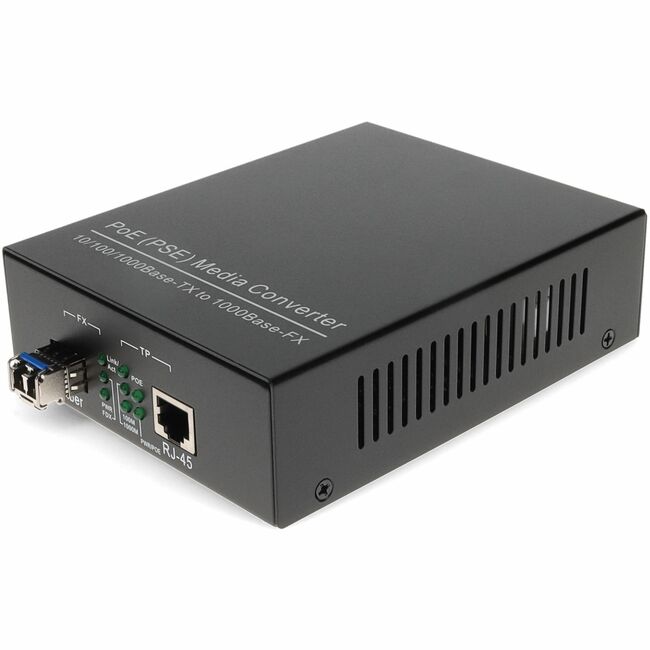

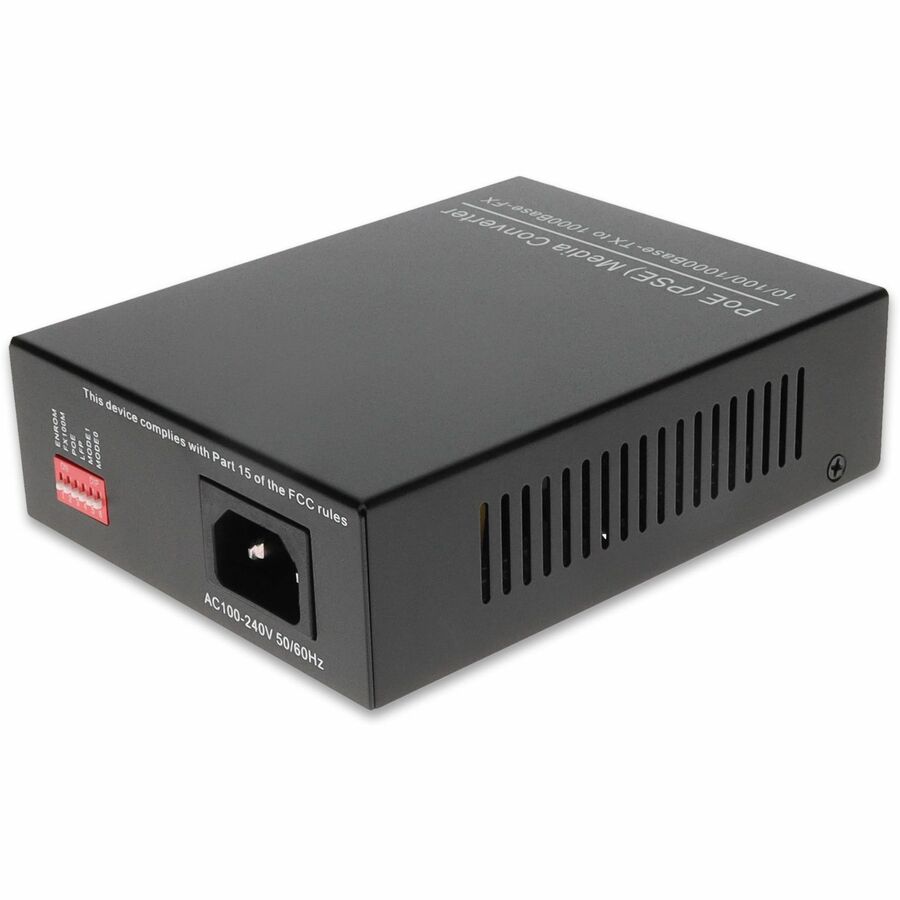

AddOn ADD-GMC-LX-LC-POE 10/100/1000BASE-TX(RJ-45) TO 1000BASE-LX(LC) SMF 1310NM 10KM POE MEDIA CONVERTER

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-LX via an LC connector. The open SFP port also allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.

General Information
Manufacturer	AddOn
Manufacturer Part Number	ADD-GMC-LX-LC-POE
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	10/100/1000Base-TX(RJ-45) to 1000Base-LX(LC) SMF 1310nm 10km POE Media Converter
Packaged Quantity	1
Product Type	Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports	1
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
PoE Port Type	PSE
Number of Network (RJ-45) Ports	1
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Data Transfer Rate	1 Gbit/s
Maximum Distance Supported	10 km
I/O Expansions
Total Number of Expansion Slots	1
Expansion Slot Type	SFP
Number of SFP Slots	1
Network & Communication
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-LX
Network Technology	10/100/1000Base-TX
Network Technology	1000Base-X
Power Description
Power Source	AC
Input Voltage	120 V AC
Power Consumption	25 W
Physical Characteristics
Height	5.5"
Width	4.5"
Depth	1.8"
Weight (Approximate)	8 oz
Miscellaneous
Application/Usage	Network
Additional Information	Management Type: Unmanaged IEEE Standard: 802.3af
Compatibility	Compatible OEM: Industry Standard
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China
TAA Compliant	No
Warranty
Limited Warranty	3 Year
