THERMALTAKE

CL-P075-AL12RG-A THERMALTAKE TOUGHAIR 510 180W TDP CPU COOLER RACING GREEN, INTEL/AMD (LGA 1700),

Mfg Part Number:  CL-P075-AL12RG-A
Image may not reflect the actual item.
Price: $94.20 + Free Shipping
Quantity:
More to Come
Last Updated: Oct 04, 2025
No Sales Tax except these states
, PO and Wire.

Utilizing the new color palette, TOUGHAIR 510 Racing Green CPU Cooler is a single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fans and a newly designed heat sink, guaranteeing its outstanding performance.

Color Your Style

TOUGHAIR 510 Racing Green CPU Cooler is a new edition to the TOUGHAIR series that allows users to match up the same Racing Green colored PC components to form your ideal PC build!

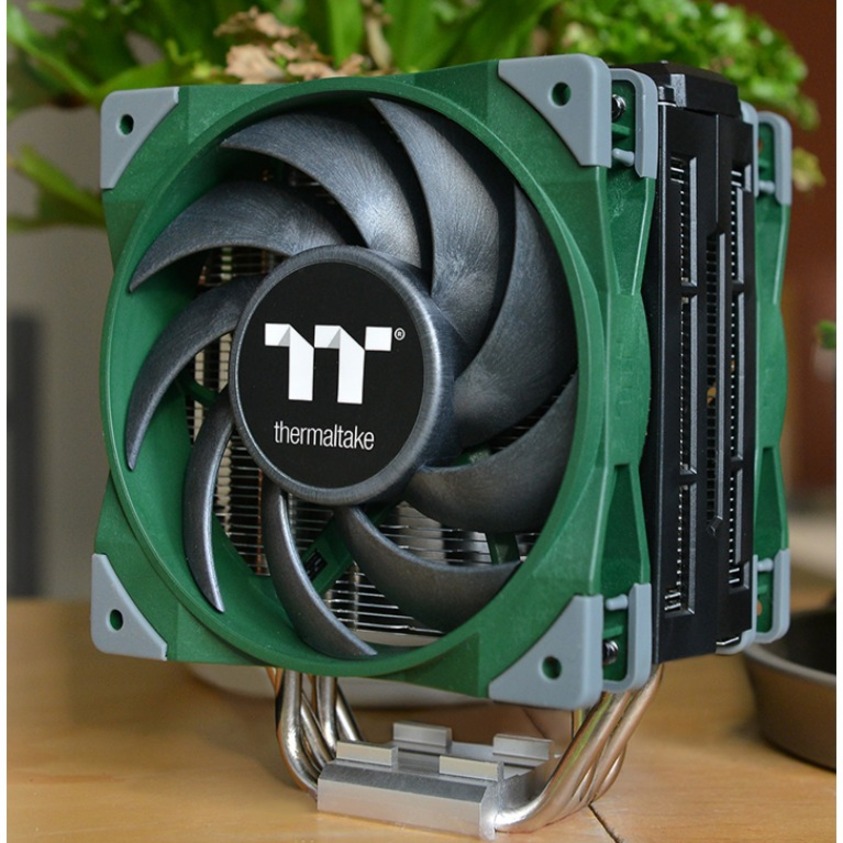

Single Tower Dual Fan Design

TOUGHAIR 510 is a single tower dual fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.

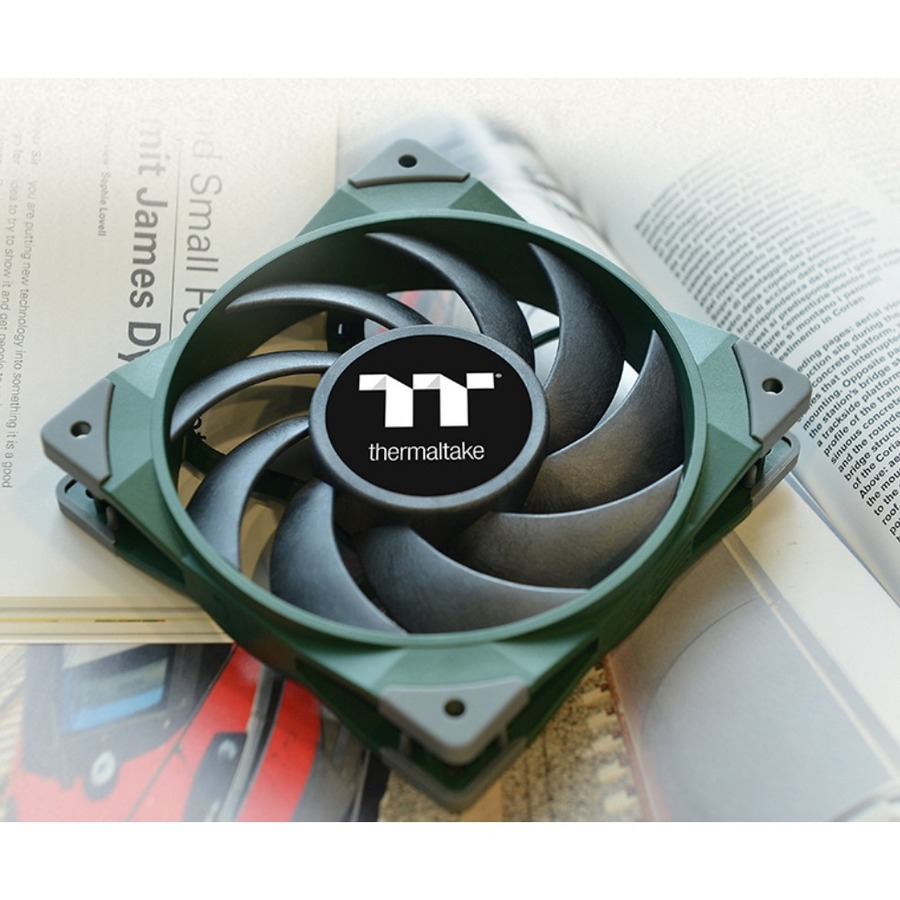

Enhanced 120 mm High Static Pressure Fan

TOUGHAIR 510 Racing Green leverages the TOUGHFAN 12 Racing Green design, which not only provides a different color scheme to the TOUGHAIR series, but also boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

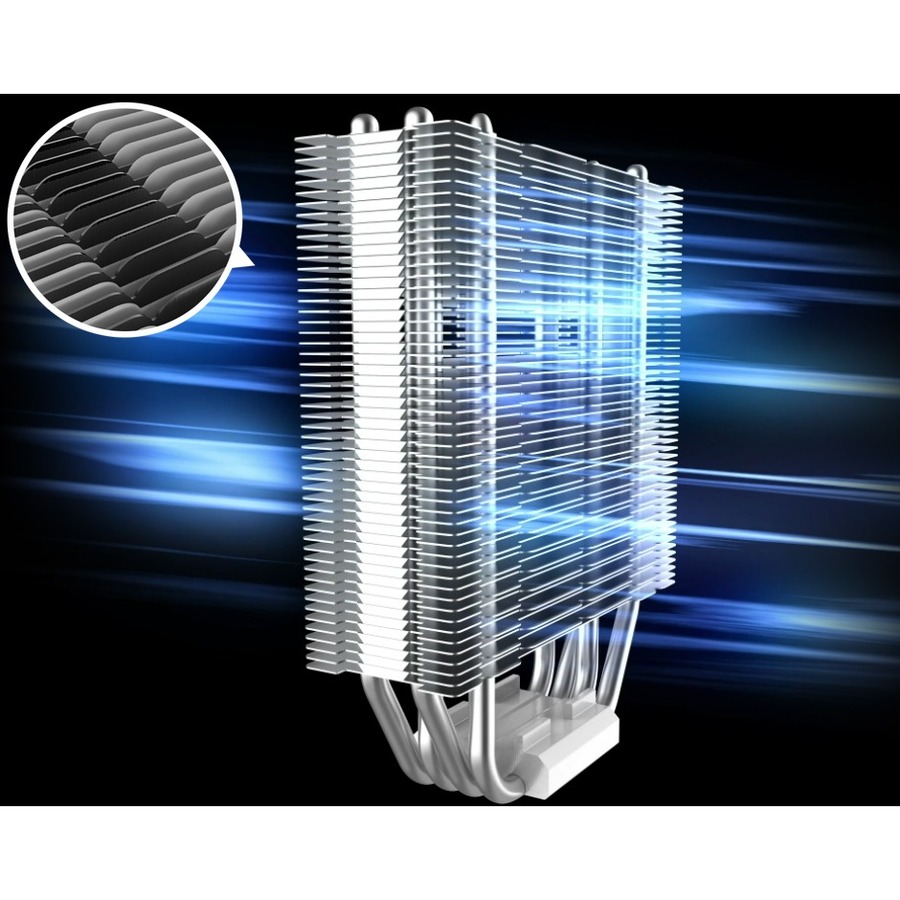

Asymmetric Fin Structure

The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

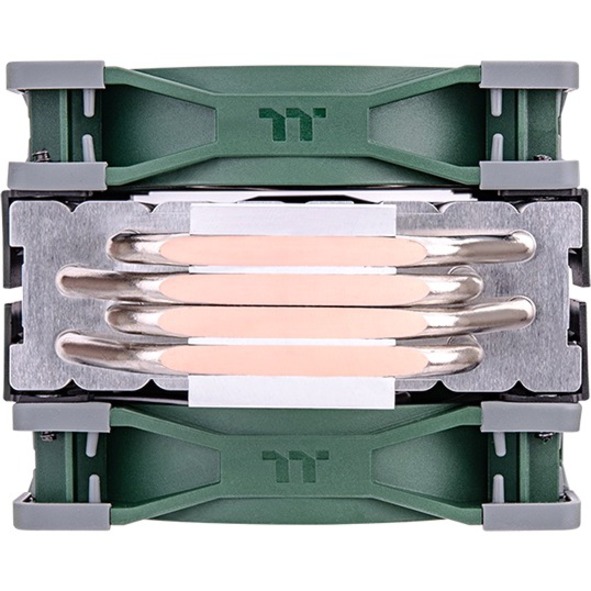

High-Performance U-shape copper heat pipes

4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

Universal Compatibility

The TOUGHAIR 510 Racing Green now supports the latest Intel LGA 1700 Socket, which allows users to stay in the latest trends.
It also fits both Intel and AMD sockets including the following models:

Intel?LGA 1700/1200/1156/1155/1151/1150
AMD? AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

Main Specification
General Information
Manufacturer Thermaltake Technology Co., Ltd
Manufacturer Part Number CL-P075-AL12RG-A
Manufacturer Website Address http://www.thermaltakeusa.com
Brand Name Thermaltake
Product Line TOUGHAIR 510
Product Name TOUGHAIR 510 Racing Green CPU Cooler
Product Type Cooling Fan/Heatsink
Fan Information
Number of Fans 2
Fan Speed (Min) 500 rpm
Fan Speed (Max) 2000 rpm
Maximum Airflow 58.35 CFM
Noise Levels (A-Weighted) 23.6 dB(A)
Fan Life 4.6 Year
Maximum Air Pressure 2.41mmH2O
Heatsink Information
Cooler Type Air
Compatible Intel Socket LGA-1200
Compatible Intel Socket H3 LGA-1150
Compatible Intel Socket H LGA-1156
Compatible Intel Socket LGA-1700
Compatible Intel Socket H4 LGA-1151
Compatible Intel Socket H2 LGA-1155
Compatible AMD Socket AM3+
Compatible AMD Socket FM1
Compatible AMD Socket FM2
Compatible AMD Socket AM3 PGA-941
Compatible AMD Socket AM4
Compatible AMD Socket AM2+ PGA-940
Compatible AMD Socket AM2 PGA-940
Interfaces/Ports
Connectors 2510 - 4Pin
Power Description
Rated Current 480 mA
Physical Characteristics
Product Color Racing Green
Heatsink Material Aluminum
Heatsink Material Copper
Maximum Fan Diameter 4.72"
Fan Height 0.98"
Fan Width 4.72"
Height 6.3"
Width 3.9"
Miscellaneous
Application/Usage Processor
Warranty
Limited Warranty 3 Year
