HANWHA TECHWIN

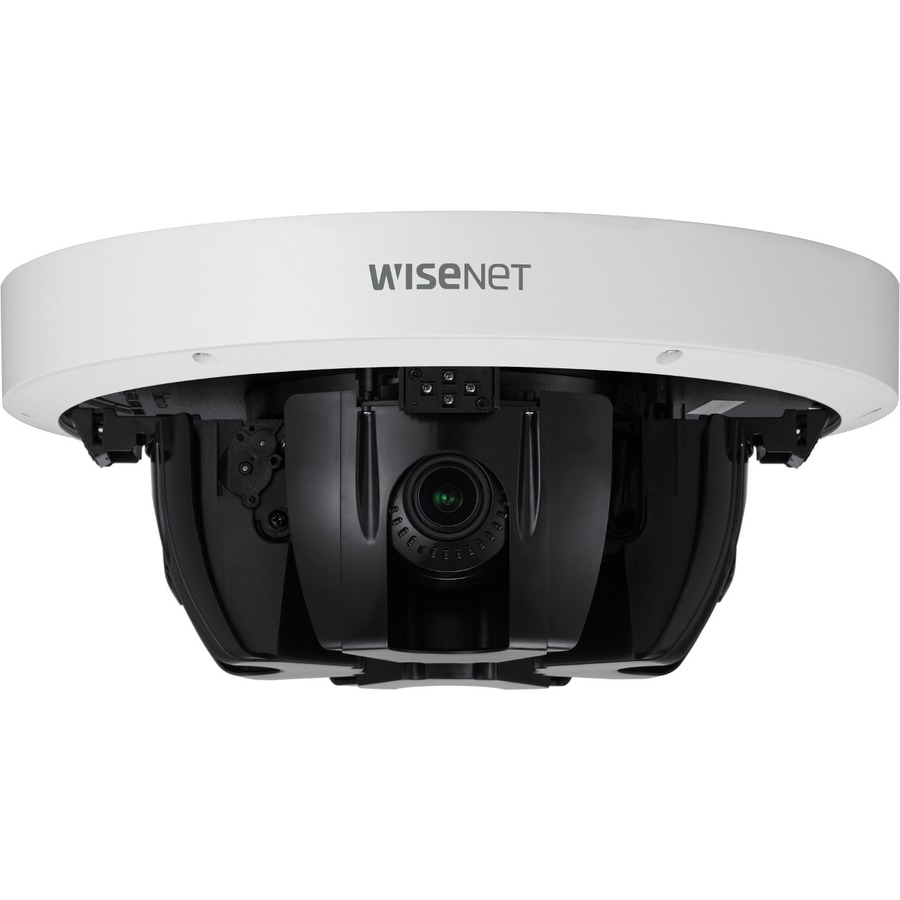

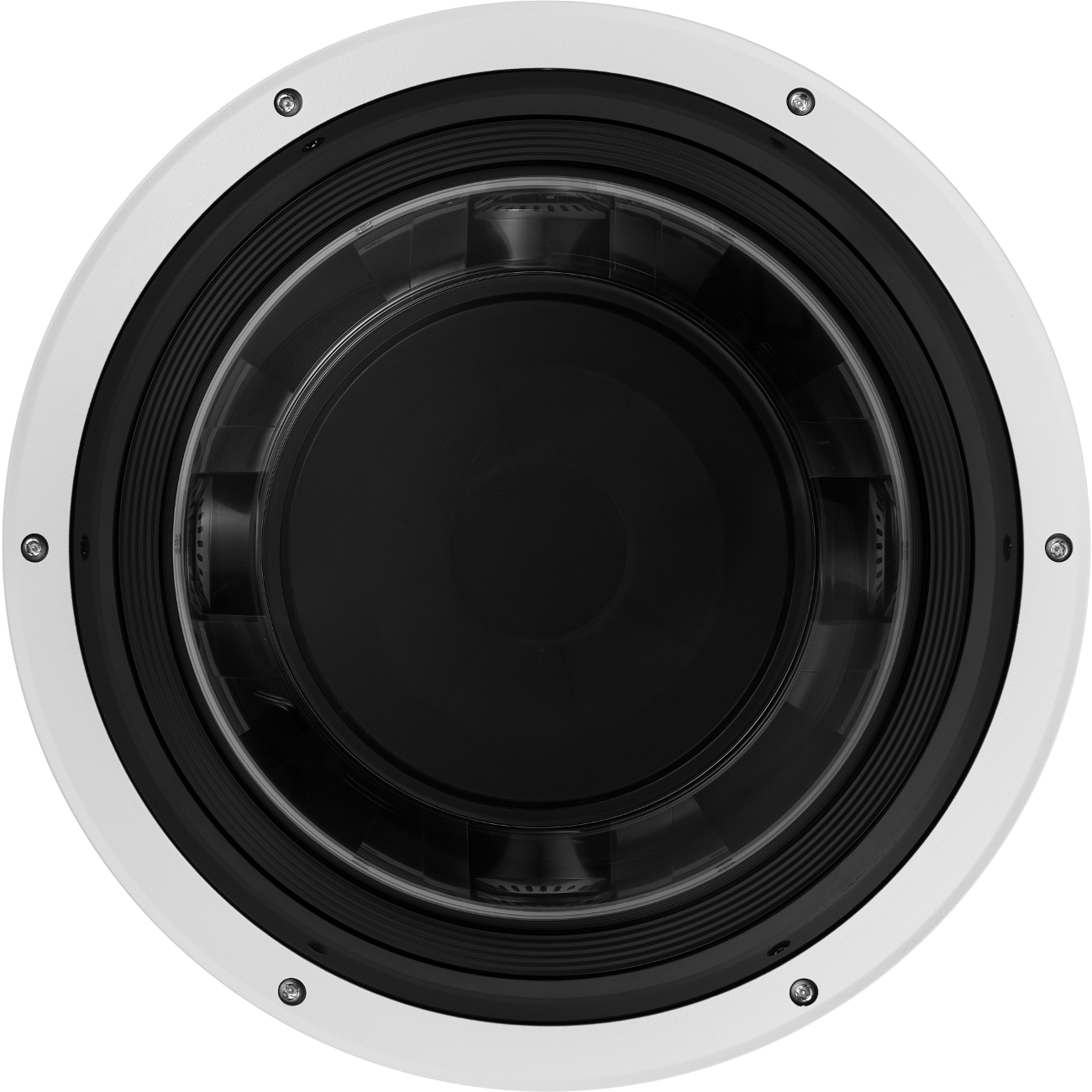

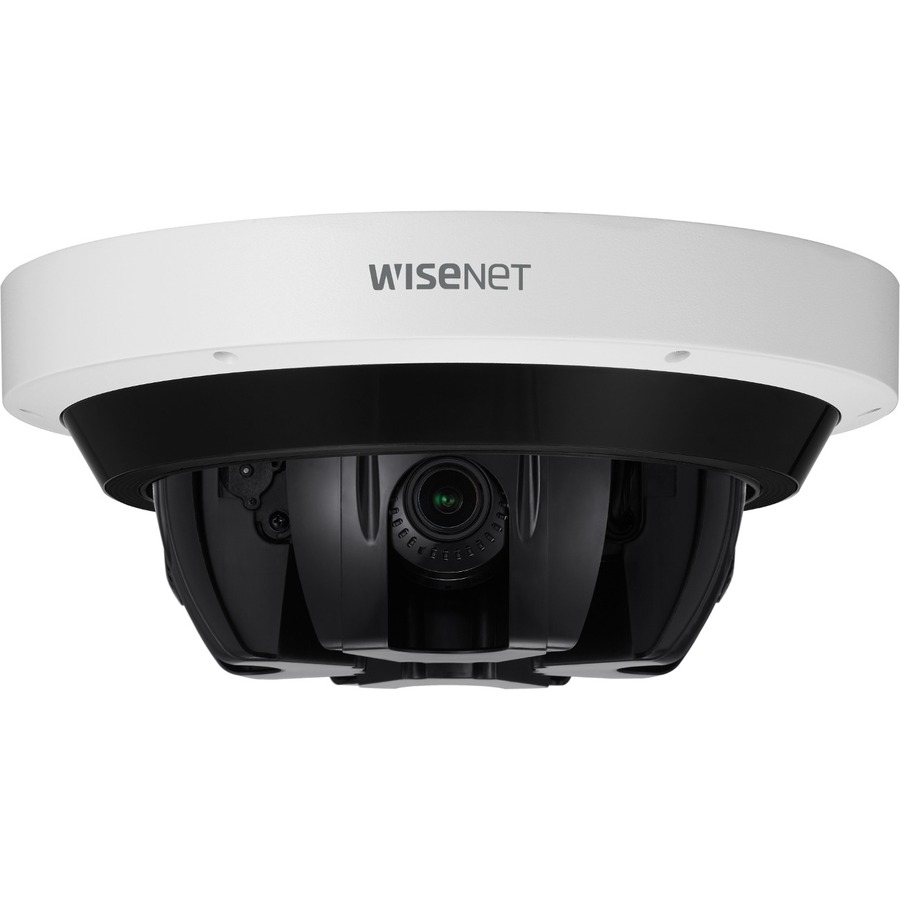

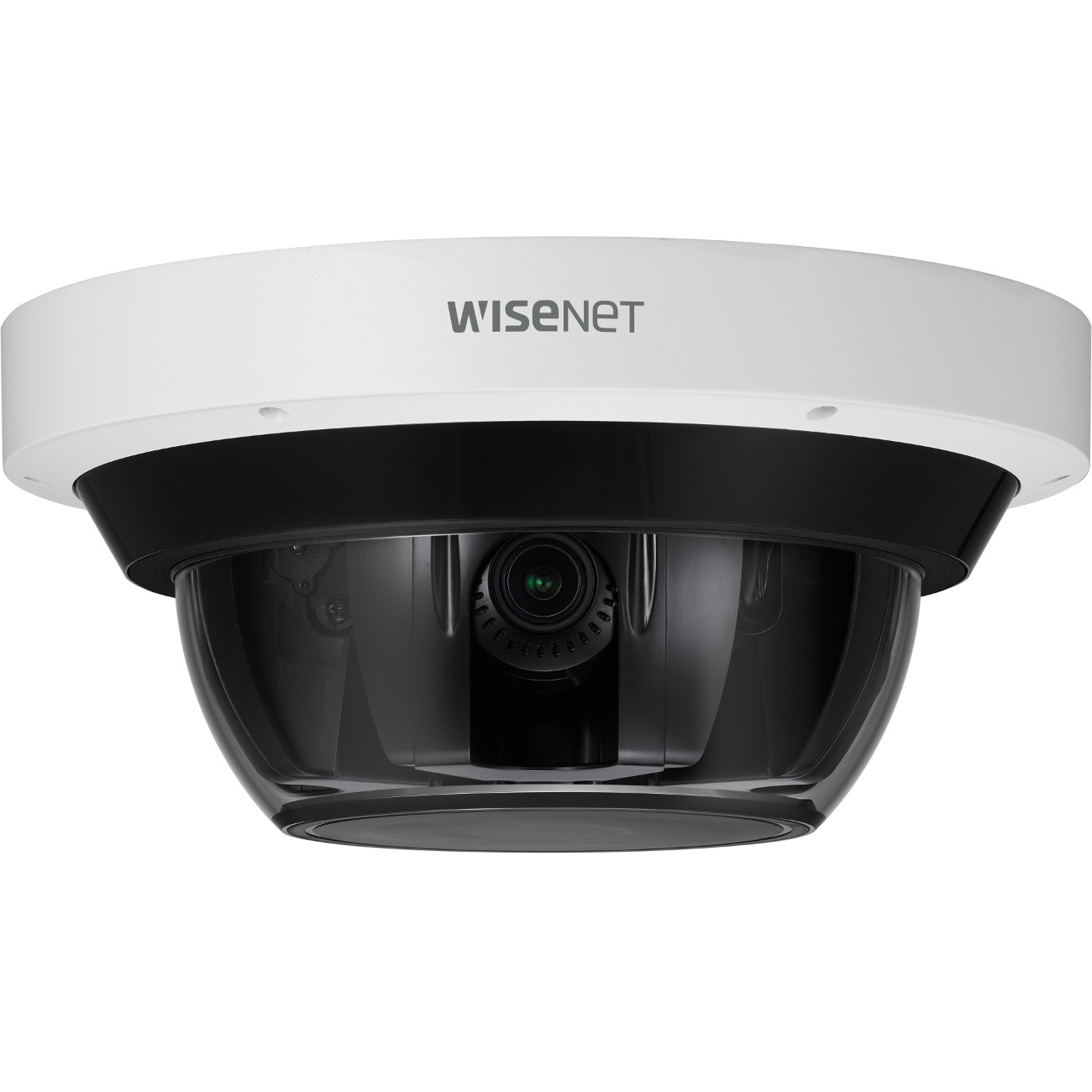

HANWHA TECHWIN PNM-9085RQZ1 Wisenet P series network vandal outdoor Multi-sensor Multi-Directional dome camera 5MP x 4ch multi-directional camera Motorized PTRZ support Max. 30fps@5MP(H.265 H.264) 4.13~9.4mm(2.3x) motorized varifocal lens
Mfg Part Number: PNM-9085RQZ1 , Item #: 4630079
Image may not reflect the actual item.
Price: $2,960.40
+ Free Shipping
Quantity:
In Stock: 5
Last Updated: Jun 07, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM9085RQZ1 |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNM-9085RQZ1 |
| Product Name | 5MP x 4CH IR PTRZ Multi-directional Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) / D: 112.46°(Wide)~46.85°(Tele) |
| Effective Camera Resolution | 20 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.265H |
| Video Formats | H.264H |
| Video Formats | MJPEG |
| Video Formats | H.265B |
| Video Formats | H.265M |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | H.264B |
| Video Formats | H.264M |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.13 mm |
| Maximum Focal Length | 9.40 mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.67 |
| Maximum Aperture | f/1.9 |
| Optical Zoom | 2.3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | DC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Hanging Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Diameter | 12.4" |
| Weight (Approximate) | 11.46 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Automatic White Balance |
| Features | Digital Wide Dynamic Range (D-WDR) |
| Features | Back Light Compensation (BLC) |
| Features | Gain Control |
| Features | Highlight Compensation (HLC) |
| Features | Alarm Triggering |
| Features | Wide Dynamic Range |
| Features | Password Protection |
| Features | Digital Image Stabilization |
| Features | Day/Night |
| Features | Defog |
| Features | SD Card Local Storage |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
