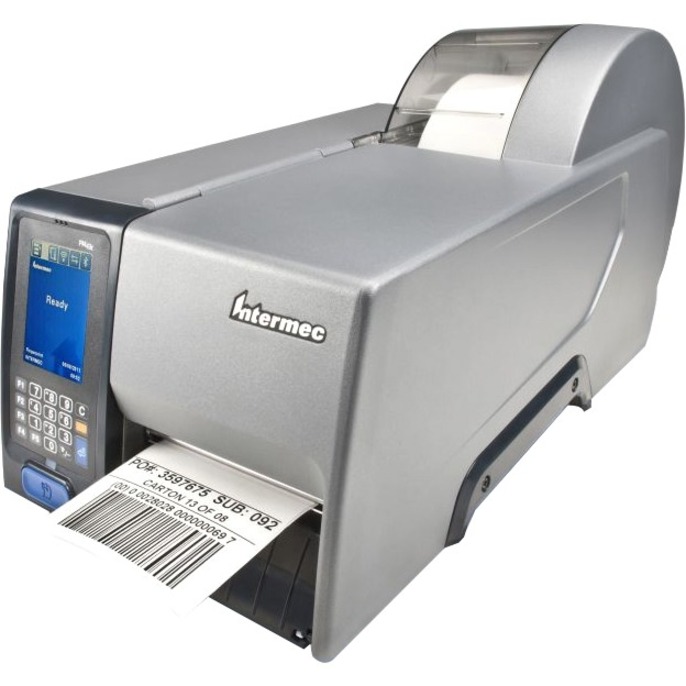

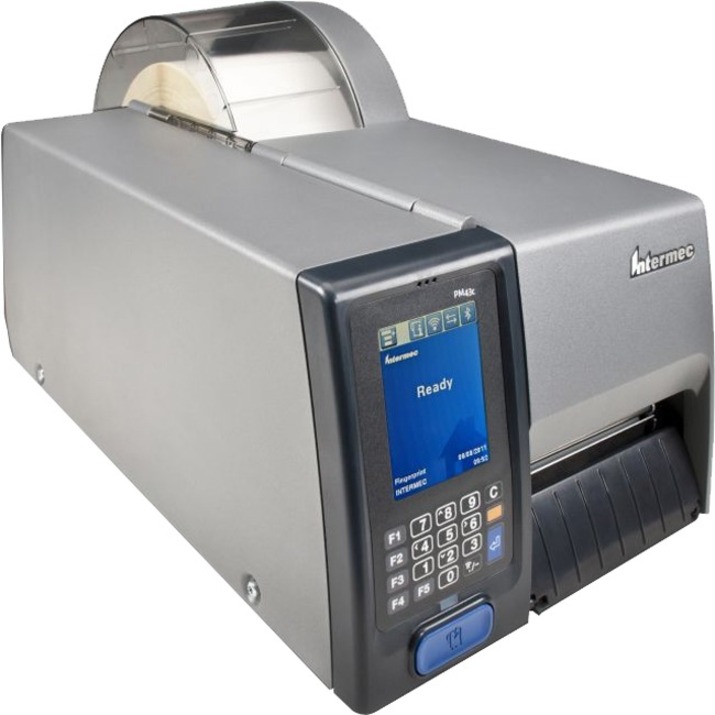

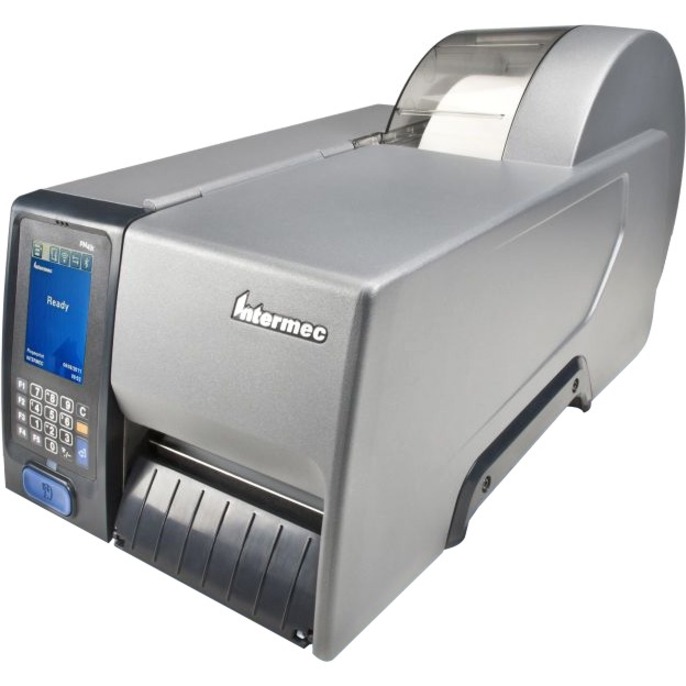

PM43CA1130000200 HONEYWELL, PM43CA PRINTER, FULL TOUCH DISPLAY, ETHERNET, LONG DOOR+FRONT DOOR, F

Programmable PM series smart printers offer you reliable performance for uptime assurance, quick deployment and integration, and the fastest throughput in their class -: no PC required. The PM series are available in a variety of enclosure sizes and door types to fit your exact application.

• Fast printing speed of up to 12 inches per second.
• Run sophisticated apps right in the printer with industry-leading Honeywell Smart Printing supporting C#.
• Comprehensive printer command language support, including ZSim2, makes upgrading easy.
• Large color, multilingual, tamperproof touchscreen or icon user interface.
• Ready for the future, with IPv6 support, plus CCX and Wi-Fi certifications.

The PM series Mid-Range Industrial Printers deliver proven reliability, fast drop-in deployment and integration, and advanced connectivity to maximize your uptime. They&apos:re ideal for applications in distribution centers, warehouses, manufacturing operations, and transportation centers. The PM series was designed for easy integration and fast deployment. Minimize workforce training and device support needs with intuitive features like a vibrant color touchscreen or intuitive icon user interface. Notifications are displayed right on screen, and the interface can be locked down to eliminate tampering. And with the broadest connectivity options in their class -: including Wi-Fi and Cisco CCX certifications, plus additional Bluetooth®: connectivity -: PM series quickly interface with virtually any IPv4 or IPv6 network. PM printers offer outstanding performance in harsh environments thanks to a rugged metal enclosure and the top print speed in their class at 304 mm/s (12 ips). Beyond the productivity of speed, PM printers also enable you to work smarter by reducing labeling errors and increasing process efficiency. Plus, in-printer apps can directly control other devices such as scanners, scales, keyboard and other peripherals -: without the need for an attached computer.

General Information
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	PM43CA1130000200
Manufacturer Website Address	http://www.honeywell.com
Brand Name	Honeywell
Product Series	PM
Product Model	PM43C
Product Name	PM43C Industrial Printer
Product Type	Thermal Transfer Printer
Technical Information
Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	11.81 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	15.75 ft
Maximum Print Width	4.25"
Application/Usage	Industrial
Features	Rugged
Connectivity Technology	Wired
Print Technology	Thermal Transfer
Memory
Standard Memory	128 MB
Interfaces/Ports
Serial Port	Yes
USB Host	Yes
USB	Yes
Network & Communication
Network Ready	Yes
Ethernet	Yes
Ethernet Technology	Fast Ethernet
Media Types & Handling
Media Type	Linered Media
Media Type	Label
Media Type	Tag
Media Type	Linerless
Media Sensor	Black Mark Sensor
Media Thickness	10.40 mil
Maximum Roll Diameter	6"
Maximum Label Width	4.50"
Fonts & Emulation
Language Emulation	DPL
Language Emulation	ZPL II
Language Emulation	XML
Language Emulation	IPL
Language Emulation	Direct Protocol (DP)
Power Description
Power Source	AC Supply
Input Voltage	230 V AC
Input Voltage	120 V AC
Environmental Conditions
Operating Temperature	41°F (5°C) - 104°F (40°C)
Operating Relative Humidity	20% - 80%
Storage Temperature	-4°F (-20°C) - 158°F (70°C)
Physical Characteristics
Form Factor	Tabletop
Height	7.1"
Width	10"
Depth	17"
Weight (Approximate)	27.56 lb
Miscellaneous
Platform Supported	PC
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
