HPE

R9G17A#ABA ARUBA 8360-24XF2CV2 PWRPRT Bundle HPE US EN

Mfg Part Number:  R9G17A#ABA

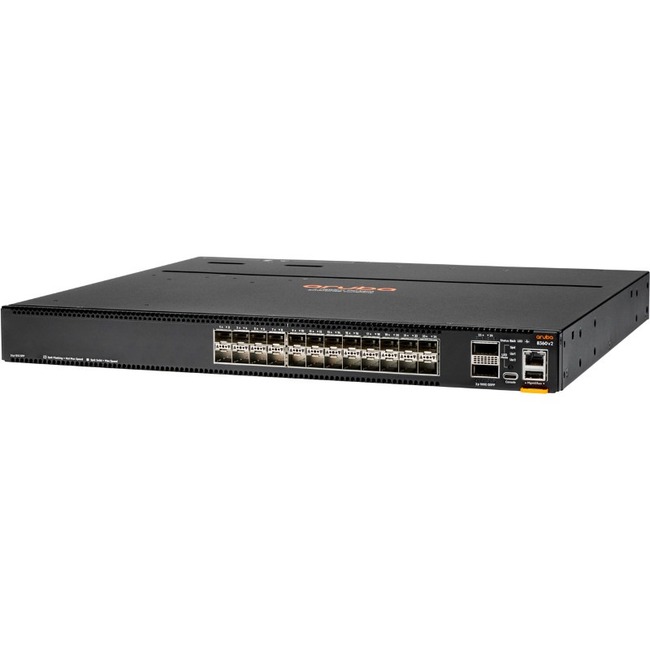

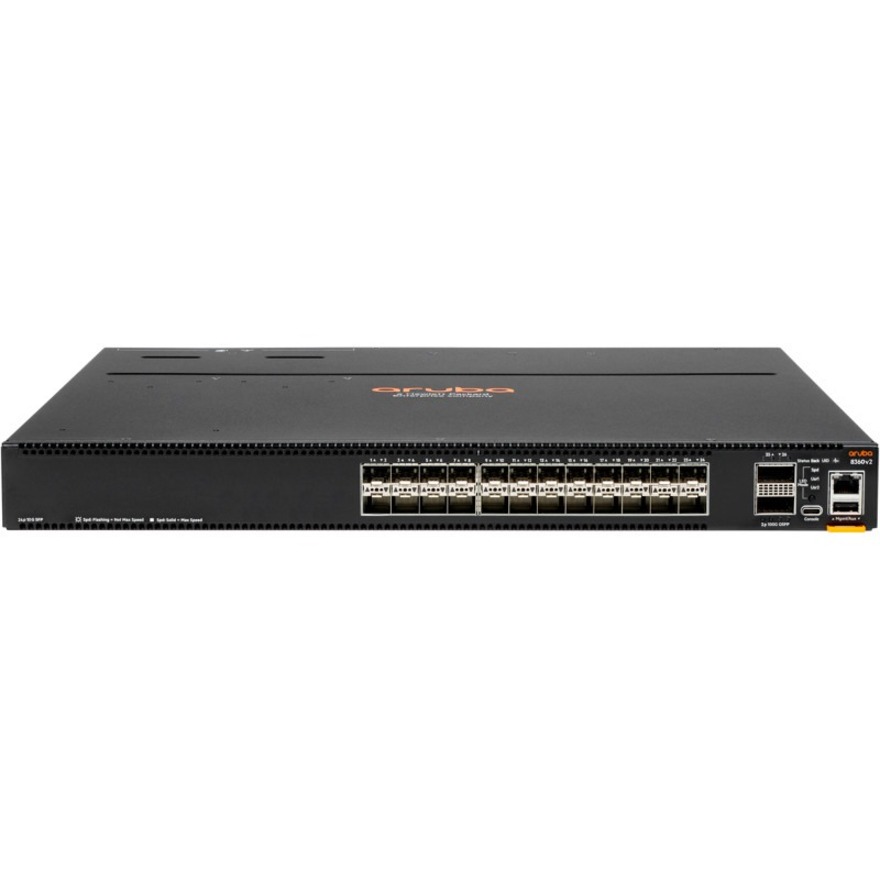

Image may not reflect the actual item.
Price: $22,700.37 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 04, 2025
No Sales Tax except these states
, PO and Wire.

Aruba CX 8360 v2 Switch Series

The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps

The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains

Main Specification
General Information
Manufacturer Hewlett Packard Enterprise
Manufacturer Part Number R9G17A#ABA
Manufacturer Website Address http://www.hpe.com
Brand Name HPE
Product Series CX 8360v2
Product Model 8360v2-24XF2C
Product Name 8360v2-24XF2C Ethernet Switch
Product Type Ethernet Switch
Interfaces/Ports
Uplink Port Yes
Modular Yes
Port/Expansion Slot Details 24 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details 2 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 10 Gigabit Ethernet
Ethernet Technology 100 Gigabit Ethernet
Network Technology 100GBase-X
Network Technology 10GBase-X
I/O Expansions
Total Number of Expansion Slots 26.0
Expansion Slot Type QSFP+
Expansion Slot Type SFP
Expansion Slot Type SFP+
Expansion Slot Type QSFP28
Number of SFP+ Slots 24
Network & Communication
Layer Supported 3
Networking Standards IEEE 802.1s
Networking Standards IEEE 802.1Qbb
Networking Standards IEEE 802.3by
Networking Standards IEEE 802.3an
Networking Standards IEEE 802.3ae
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1ae
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.3ad
Networking Standards IEEE 802.3cc
Networking Standards IEEE 802.1ak
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.3z
Networking Standards IEEE 802.1AX
Networking Standards IEEE 802.1AEbw
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1t
Networking Standards IEEE 802.1AEbn
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.3ba
Networking Standards IEEE 802.1v
Networking Standards IEEE 802.1x
Management & Protocols
Manageable Yes
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Frequency 60 Hz
Frequency 50 Hz
Power Source Power Supply
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Power Consumption 375 W
Physical Characteristics
Color Family Black
Product Color Black
Compatible Rack Unit 1U
Form Factor Rack-mountable
Form Factor Cabinet Mount
Form Factor Surface Mount
Height 1.7"
Width 17.4"
Depth 16"
Weight (Approximate) 17.79 lb
Miscellaneous
Package Contents
  • 8360v2-24XF2C Ethernet Switch
  • 2 x Port-to-Power Power Units (R9G19A)
  • 3 x Port-to-Power Fan Trays (R9G20A)
  • 2-post Rack Kit
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
