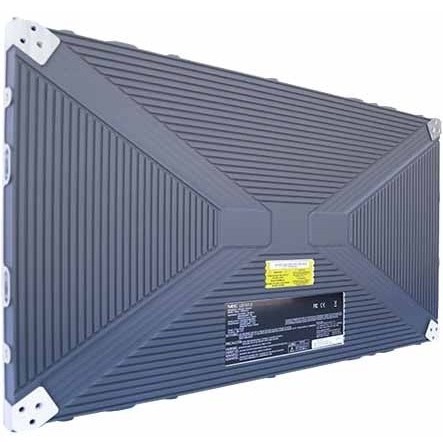

The NEC E Series provides cost conscience customers impressive LED imaging without compromising on the service and support expected from the Sharp/NEC brand. This 217" UHD kit is built with NEC's 1.25mm LED-E012i module designed to deliver all the advantages of a seamless LED display in a cost effective package. Boardrooms, auditoriums, retail, and education are just some of the applications where the NEC E series is designed to be integrated. The front serviceable design allows easy access and quick maintenance when needed. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important - your business.
- 217" diagonal screen size
- UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz for excellent image quality
- Kit includes everything needed for a LED installation, including LED modules, power bar, LED controller, mounting structure, overframe kit, as well as spare parts
- Front serviceable modules allowing for installation in difficult to access areas
- Pixel cards are hot-swappable and can be replaced without turning the display off
- Thin and lightweight design allow for greater installation flexibility and also meet ADA requirements
| General Information | |
| Manufacturer | Sharp |
| Manufacturer Part Number | LEDE012I217 |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Brand Name | Sharp NEC Display |
| Product Series | E |
| Product Model | LED-E012I-217IN |
| Product Name | 217" E Series UHD LED Kit |
| Product Type | Digital Signage Display |
| Technical Information | |
| Video Wall Compatible | Yes |
| Ingress Protection (IP) Rating | IP20 |
| Display & Graphics | |
| Number of Screens | 1 |
| Screen Size | 217" |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| Graphics Modes | 4K UHD |
| Pixel Pitch | 49.2 mil |
| Aspect Ratio | 16:9 |
| Backlight Technology | Direct View LED |
| Orientation | Landscape |
| Maximum LED Life | 11.4 Year |
| Video | |
| Scan Format | 2160p |
| Native Contrast Ratio | 5,000:1 |
| Color Depth | 16-bit |
| Brightness | 660 Nit |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 1 |
| RS-232C Input | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI-D Ports | 1 |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 85% |
| Physical Characteristics | |
| Mount Type | Wall Mountable |
| Height | 106.3" |
| Width | 15.7 ft |
| Depth | 1.1" |
| Weight (Approximate) | 663.15 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Retail |
| Application/Usage | Education |
| Application/Usage | Business |
| Application/Usage | Boardroom |
| Application/Usage | Indoor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
