Panduit

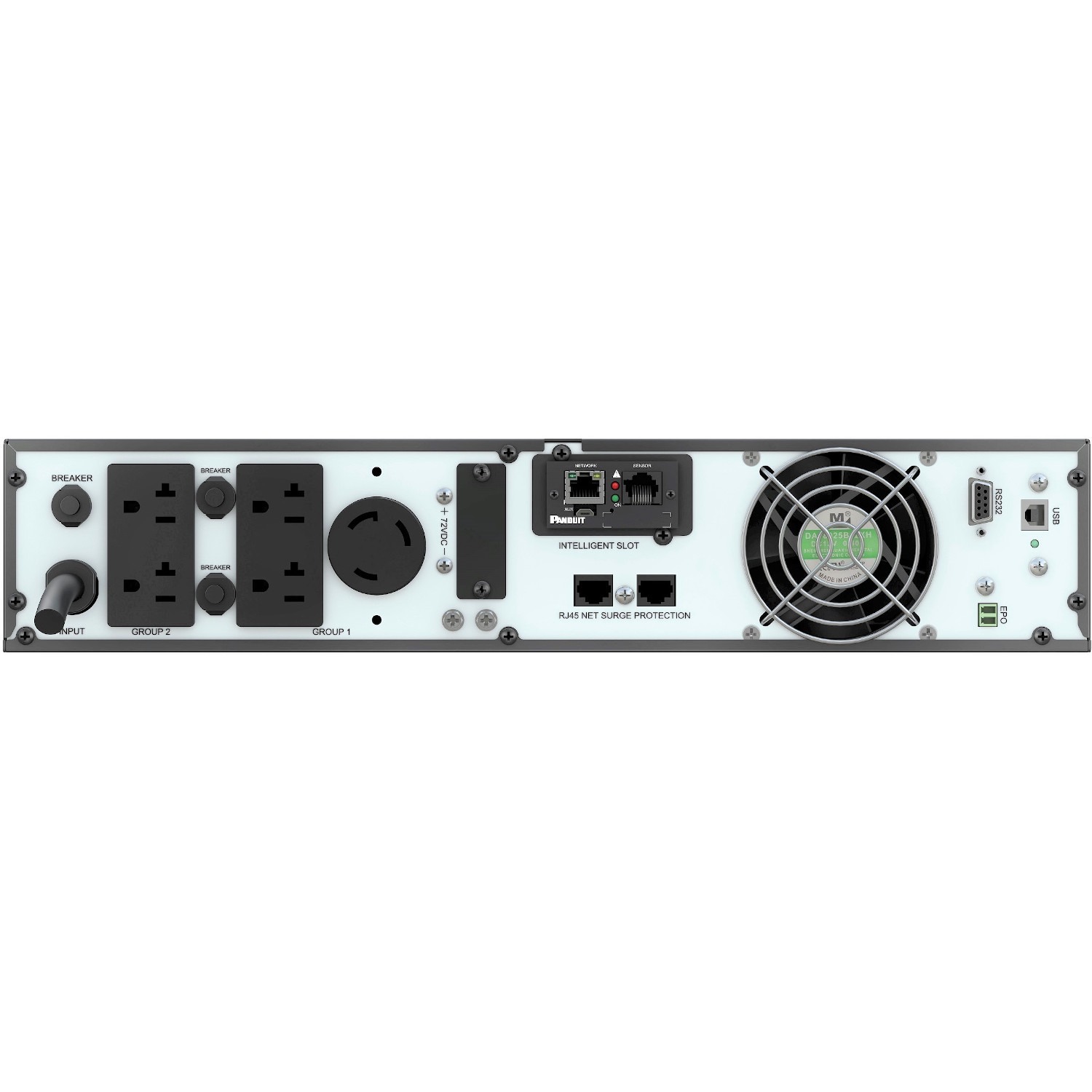

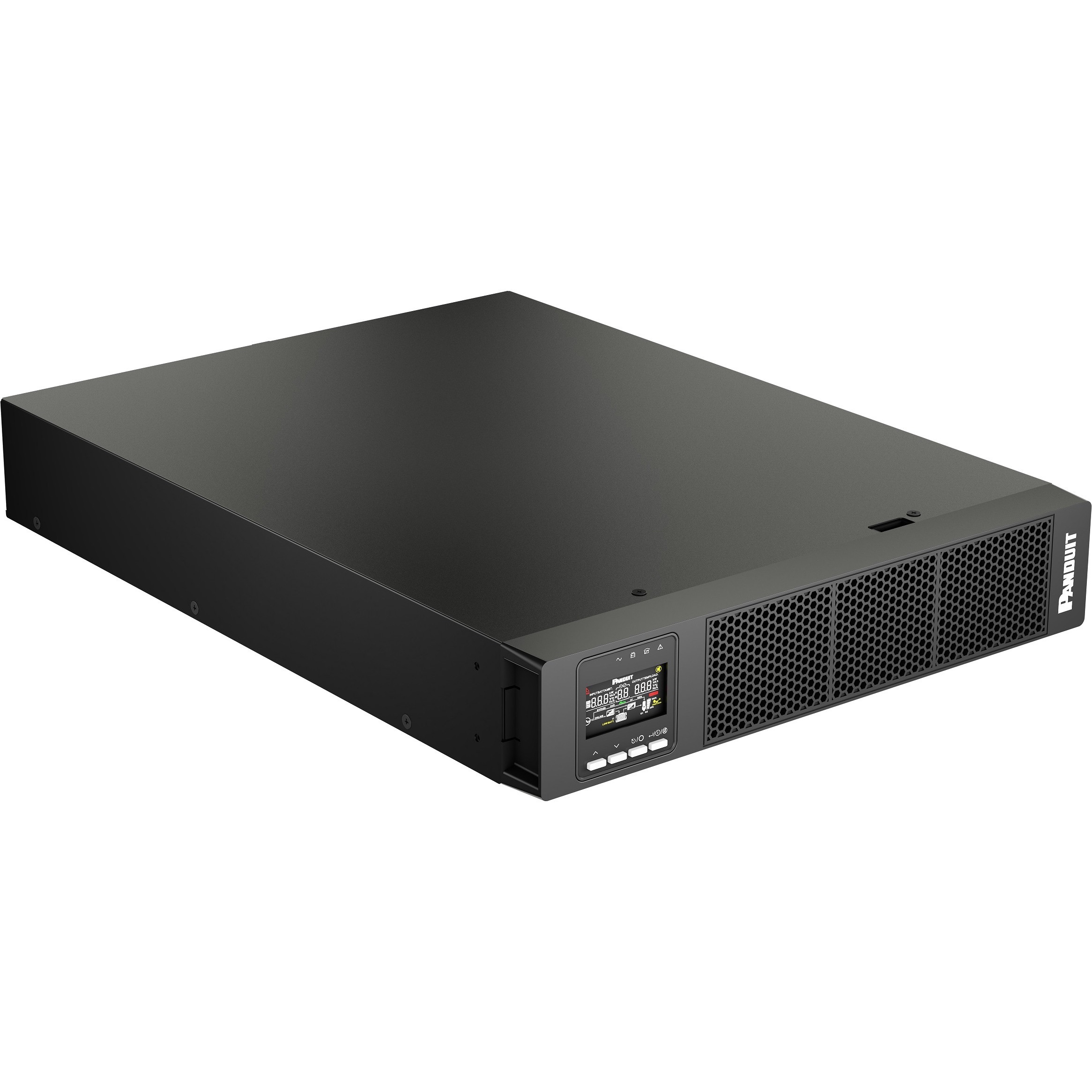

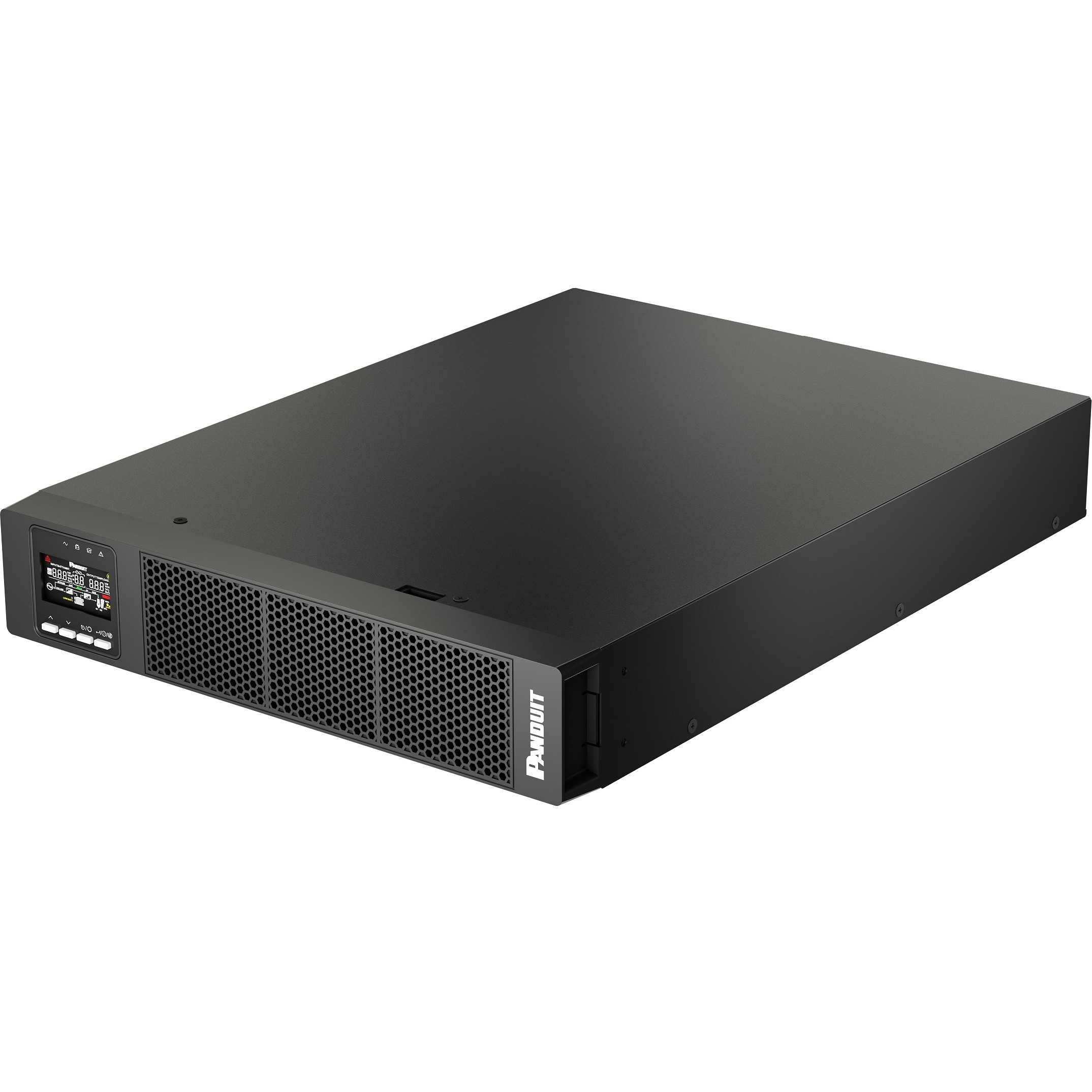

Panduit U03N11V STEADYSINE ON-LINE DOUBLE CONVERSION UPS, 3KVA, VRLA, 120V, NC
Mfg Part Number: U03N11V , Item #: 4625620
Image may not reflect the actual item.
Price: $2,282.89
Quantity:
More to Come
Last Updated: Oct 17, 2026
No Sales Tax except these states
, PO and Wire.
The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Main Specification
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U03N11V |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U03N11V |
| Product Name | SmartZone U03N11V 3000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 4 x NEMA 5-20R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Computer |
| Application/Usage | Edge Computing |
| Application/Usage | IT Equipment |
| Application/Usage | Data Center |
| Application/Usage | Enterprise |
| Power Description | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 3000 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 125 V AC |
| Output Voltage | 100 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 72 V DC |
| Number of Batteries | 6 |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 4.60 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 14.10 Minute |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Sound Emission | 55 dB |
| Thermal Dissipation | 234.75 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 3.41" |
| Width | 17.32" |
| Depth | 23.62" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Form Factor | Rail Mountable |
| Weight (Approximate) | 56.66 lb |
| Miscellaneous | |
| Package Contents |
|
| Software Included | SmartZone Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information |
|
