AIC (ADVANCED INDUSTRIAL COMPUTER)
AIC (ADVANCED INDUSTRIAL COMPUTER) AIC Server XP1-S101A602 1U Xeon 4x3.5 2.5 tri-mode hot-swap 1200W Retail
Mfg Part Number: XP1-S101A602 , Item #: 4621332
Image may not reflect the actual item.
Price: $3,233.70
+ Free Shipping
Quantity:
More to Come
Last Updated: Feb 04, 2026
No Sales Tax except these states
, PO and Wire.

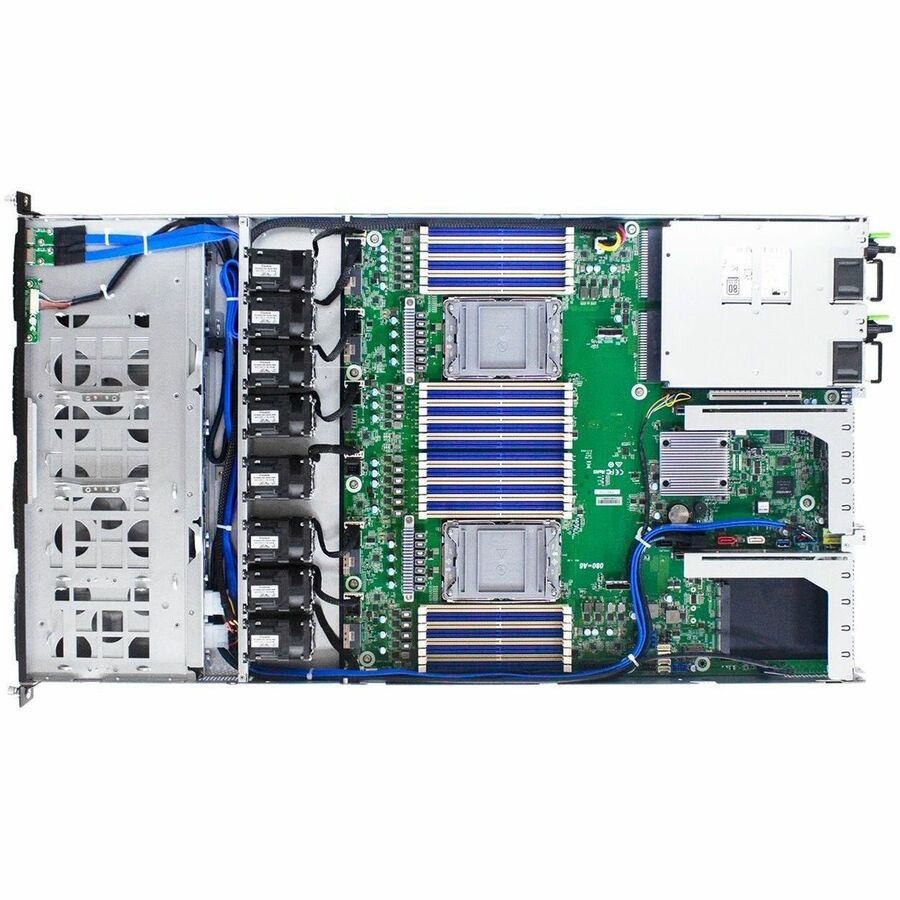

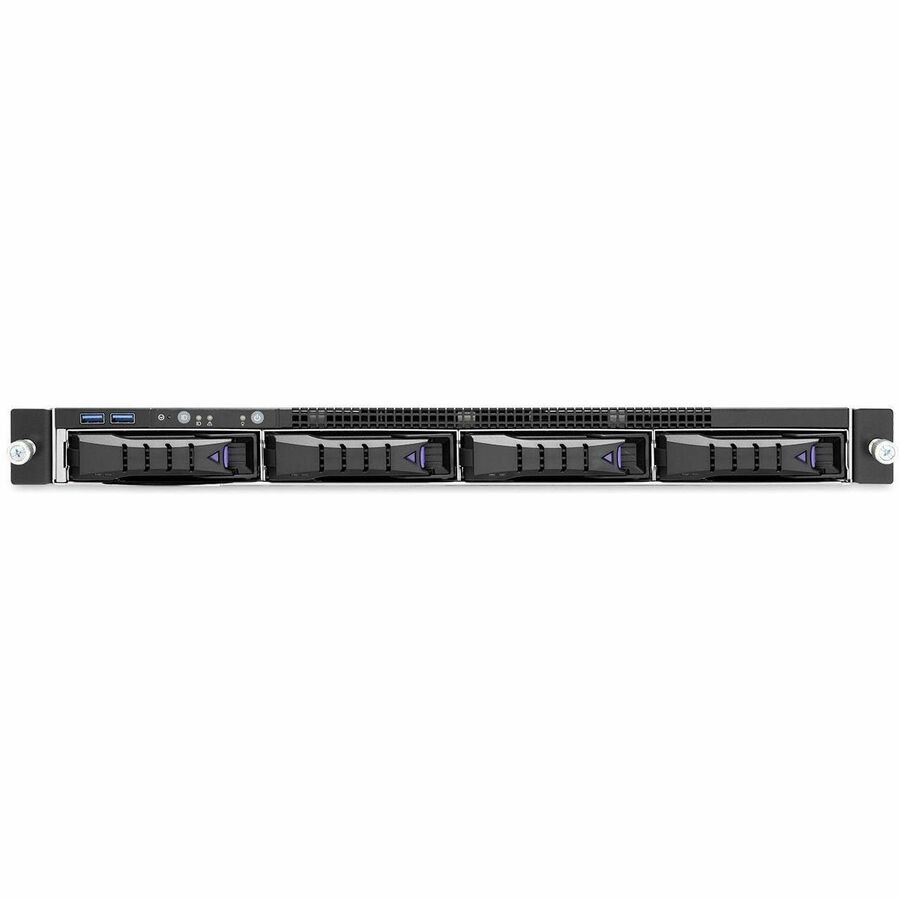

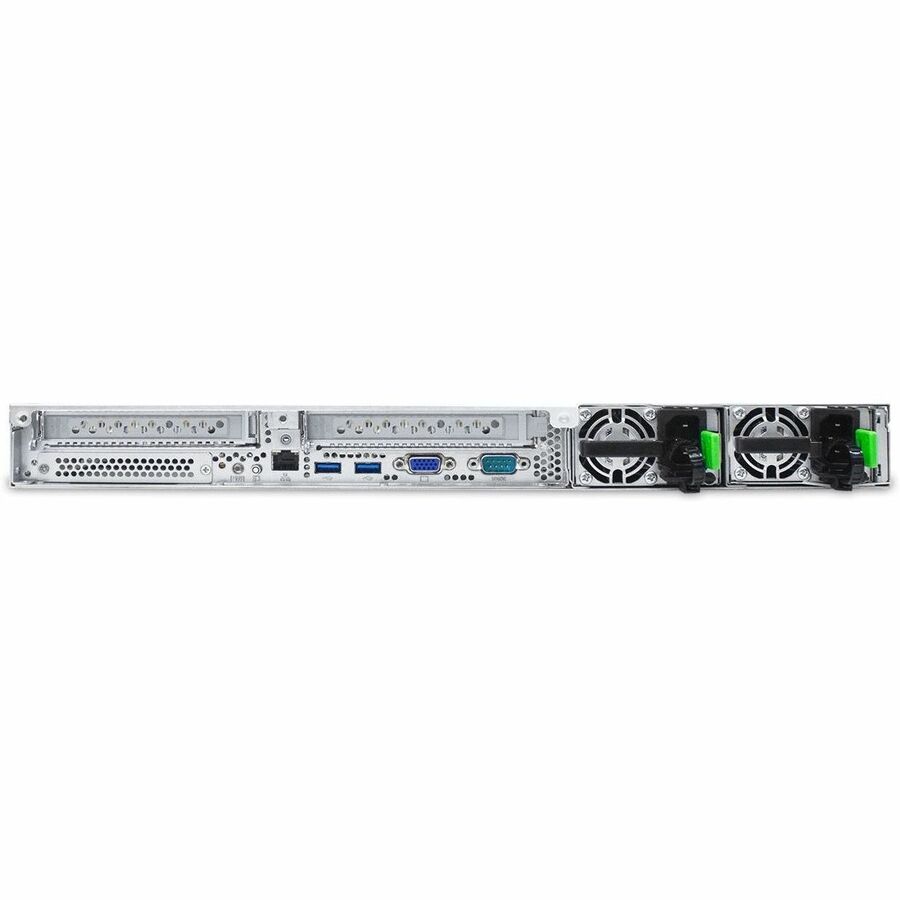

SB101-A6, a 1U 4-Bay Storage Server Solution, supports dual 3rd Gen Intel® Xeon® Scalable Processors (codename Ice Lake). SB101-A6 has 4 x 3.5" (front) hot-swappable and 2x 2.5" internal OS HDD/SSD bays to provide high storage density.
Main Specification
| General Information | |
| Manufacturer | Advanced Industrial Computer, Inc |
| Manufacturer Part Number | XP1-S101A602 |
| Manufacturer Website Address | http://www.aicipc.com |
| Brand Name | AIC |
| Product Model | SB101-A6 |
| Product Name | SB101-A6 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 12 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Supported Storage Drive Interfaces | SAS |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | PCI Express NVMe |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 14 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1200 W |
| Thermal Design Power | 270 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 31.5" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
