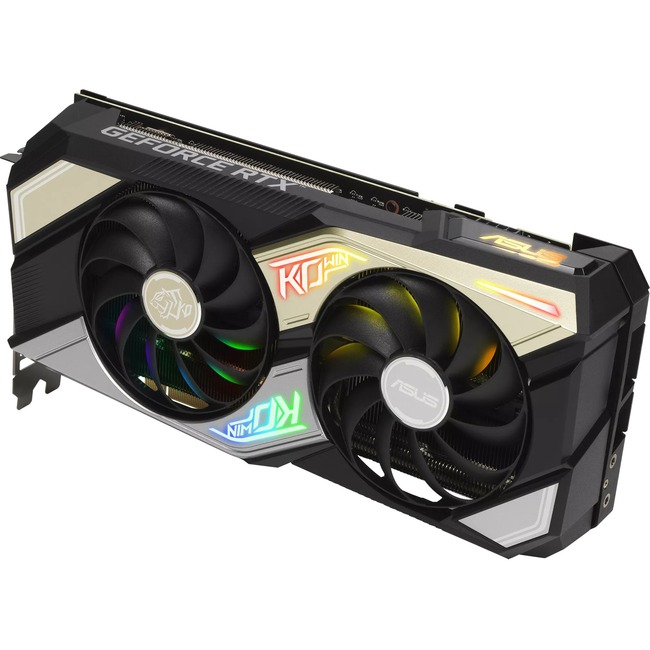

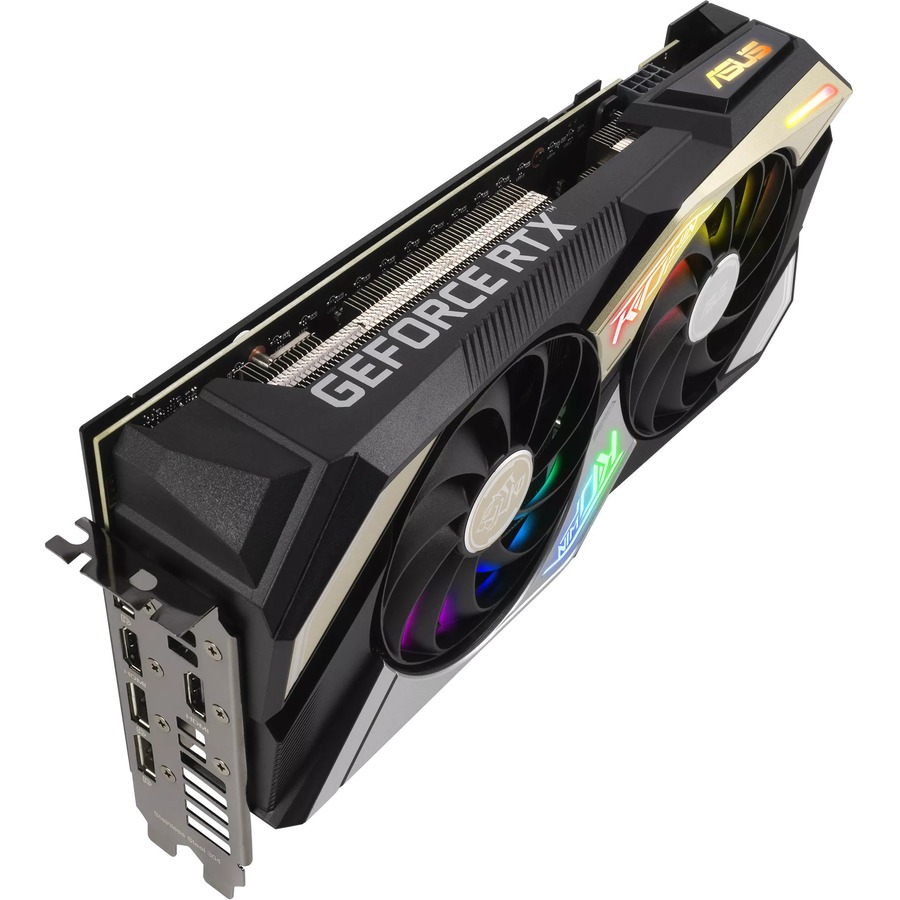

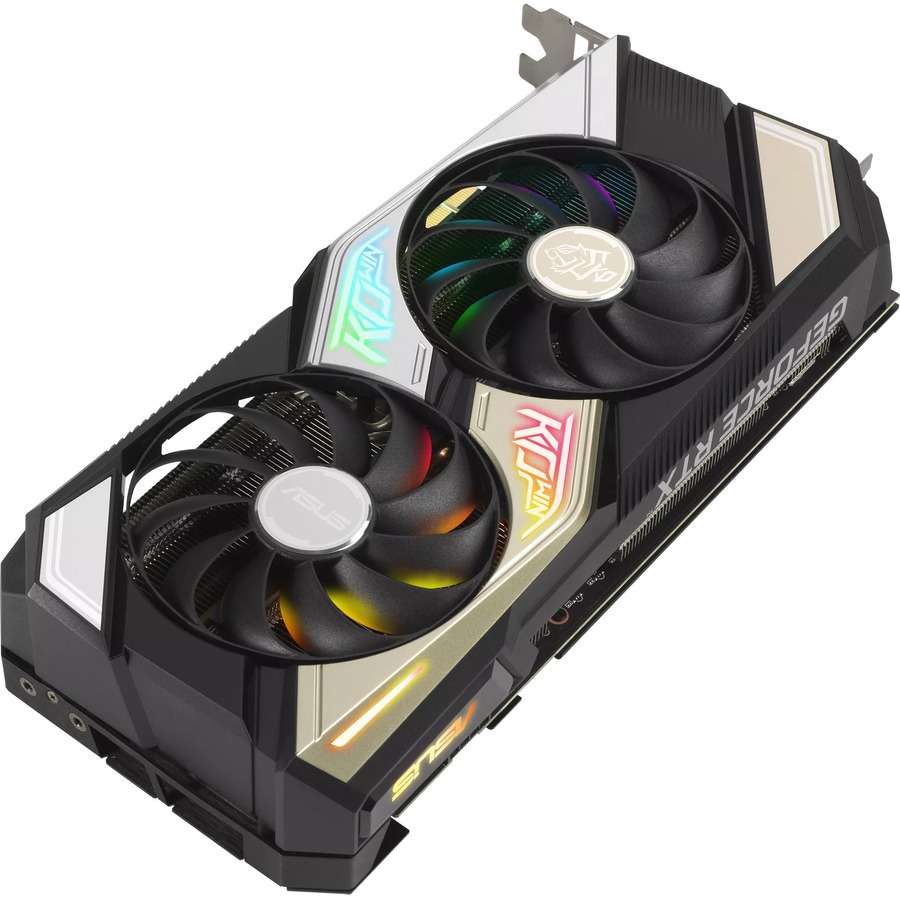

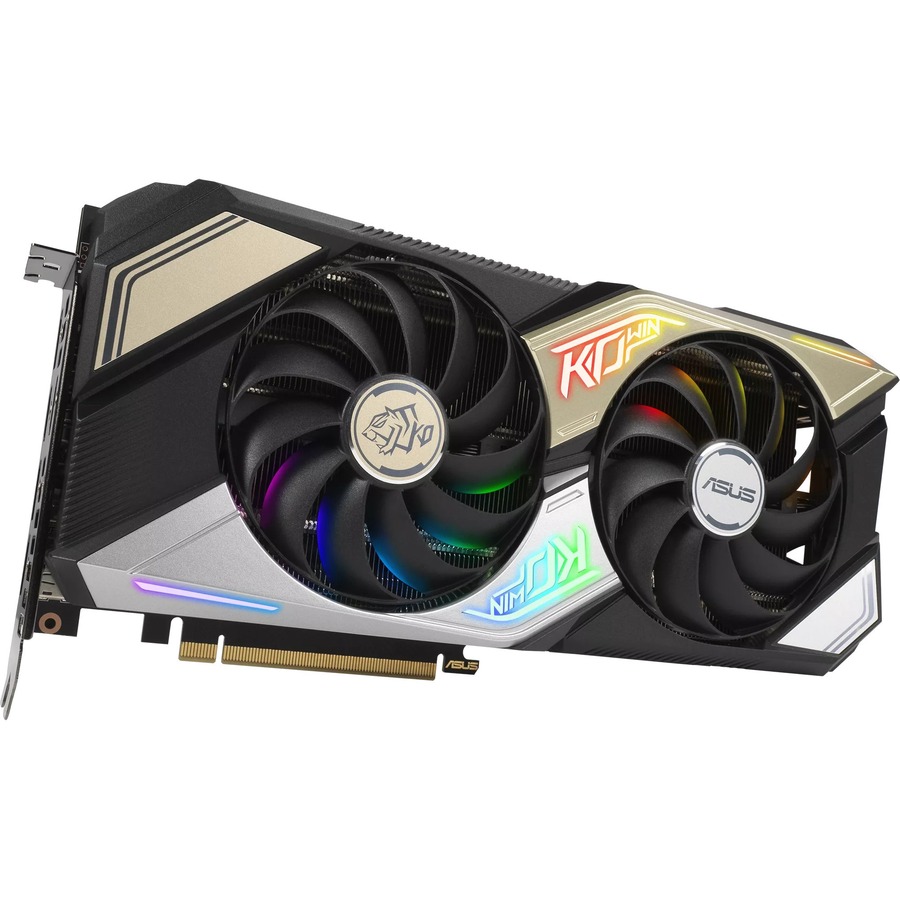

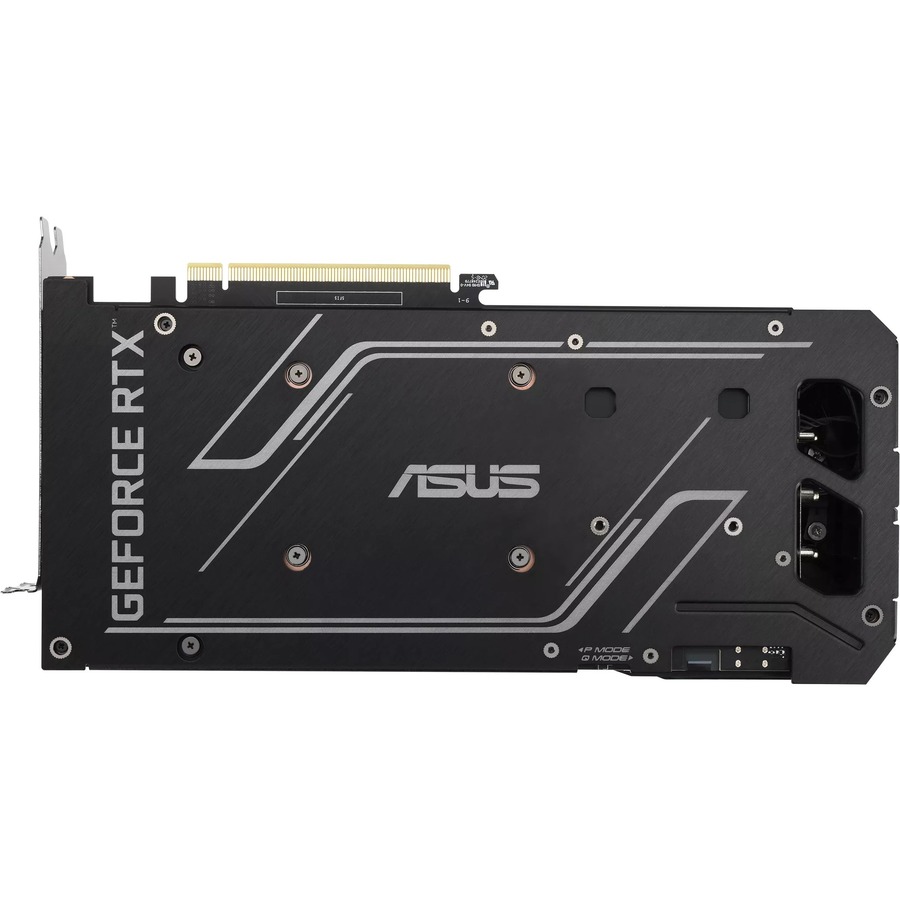

ASUS KO GeForce RTX 3060 V2 12GB GDDR6 adds a touch of flair to the next-gen gaming experience
A Touch of Flair
ASUS KO GeForce RTX™ 30 Series graphics cards host the new NVIDIA Ampere architecture with some extra shine on performance and durability. Twin fans leverage our Axial-tech design for efficient cooling at low dB levels. Enhancements such as space-grade lubricant, Auto-Extreme Technology, and enduring capacitors keep KO composed for the most demanding scenarios. And a unique shroud takes on gold and silver faceplates with fully-customizable ARGB accents.

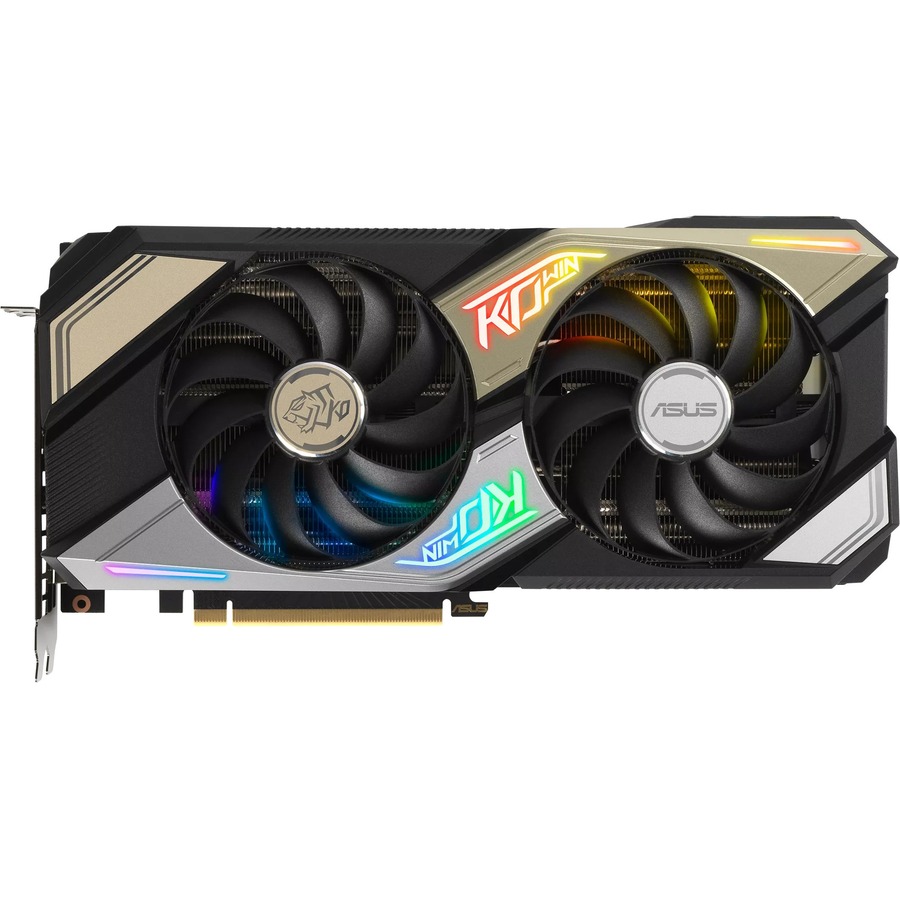

COOLING | Axial-tech Fan Design | Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
COOLING | 0dB Technology |Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
COOLING | Space-grade Lubricant | Improved lubricity
Infused with a durable lubricant often found in aerospace applications, these sleeve bearings deliver a quieter acoustic profile than dual ball bearing designs and match their durability.
COOLING | 2.7-slot Design | Sink your heat into this
The KO leverages a 2.7-slot design to gain more heatsink surface area. The extra thermal headroom increases overclocking potential and allows fans to run at lower speeds during light loads

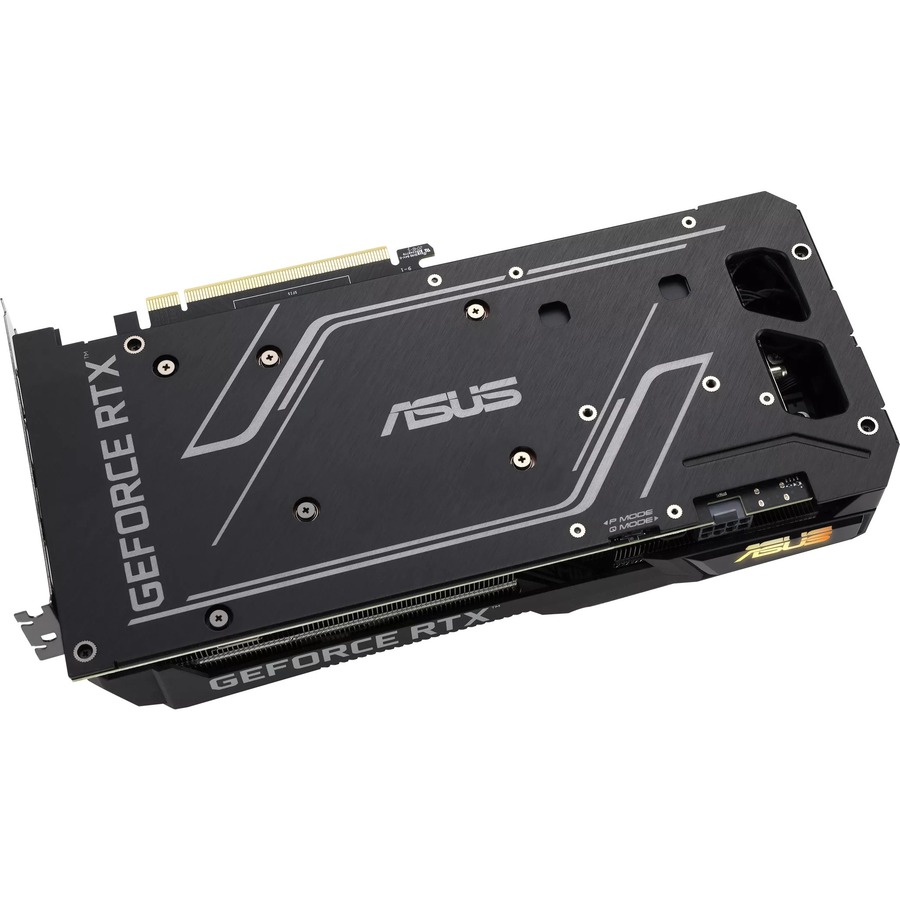

COOLING | Dual BIOS | Choose wisely
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak II software.
General Information | |
Manufacturer | ASUS Computer International |
Manufacturer Part Number | KO-RTX3060-12G-V2-GAMING |
Manufacturer Website Address | http://usa.asus.com |
Brand Name | Asus |
Product Line | KO |
Product Model | KO-RTX3070-8G-V2-GAMING |
Product Name | KO GeForce RTX 3060 V2 Graphic Card |
Product Type | Graphic Card |
Technical Information | |
API Supported | OpenGL 4.6 |
API Supported | DirectX 12 Ultimate |
Multi-GPU Technology | No |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 3584 |
Processor & Chipset | |
Chipset Manufacturer | NVIDIA |
Chipset Line | GeForce |
Chipset Series | RTX |
Chipset Model | RTX 3060 |
GPU Boost Clock | 1.81 GHz |
Memory | |
Standard Memory | 12 GB |
Memory Technology | GDDR6 |
Bus Width | 192 bit |

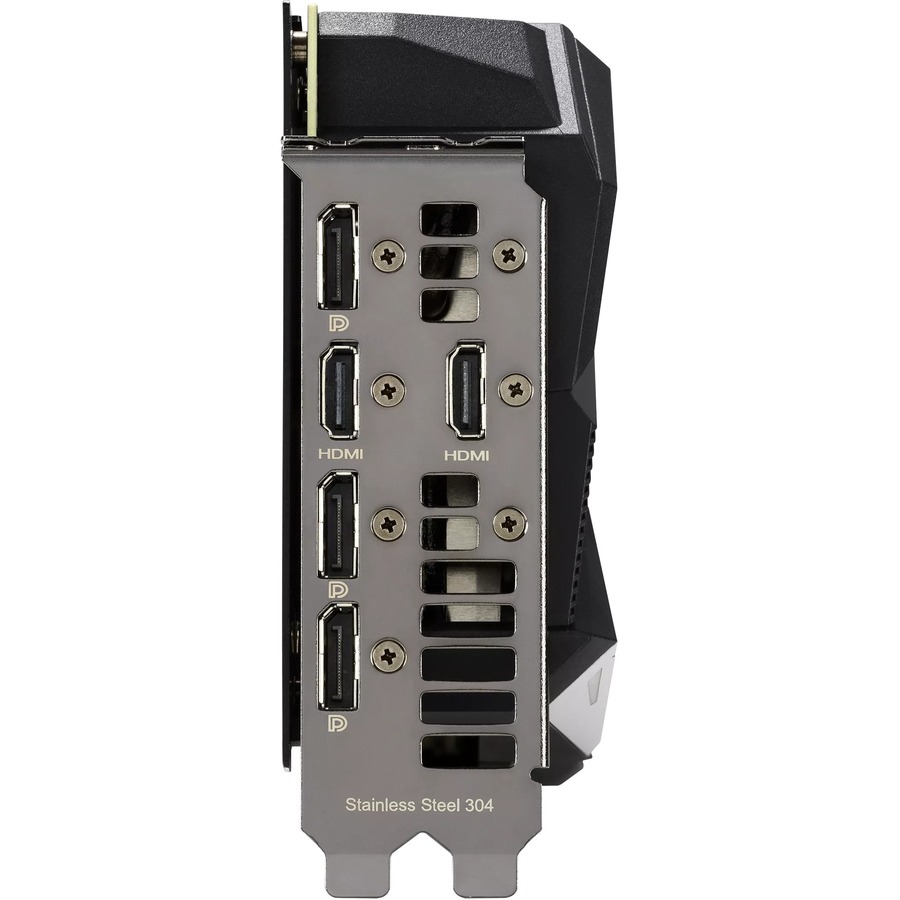

Interfaces/Ports | |
Host Interface | PCI Express 4.0 |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
HDMI | Yes |
Number of HDMI Outputs | 2 |
Power Description | |
Power Supply Wattage | 650 W |
Power Connector | 1x 8-pin |
Physical Characteristics | |
Slot Space Required | Triple |
Form Factor | Plug-in Card |
Cooler Type | Fan Cooler |
Height | 2.1" |
Width | 5.3" |
Length | 10.8" |
Miscellaneous | |
Platform Supported | PC |
