AddOn

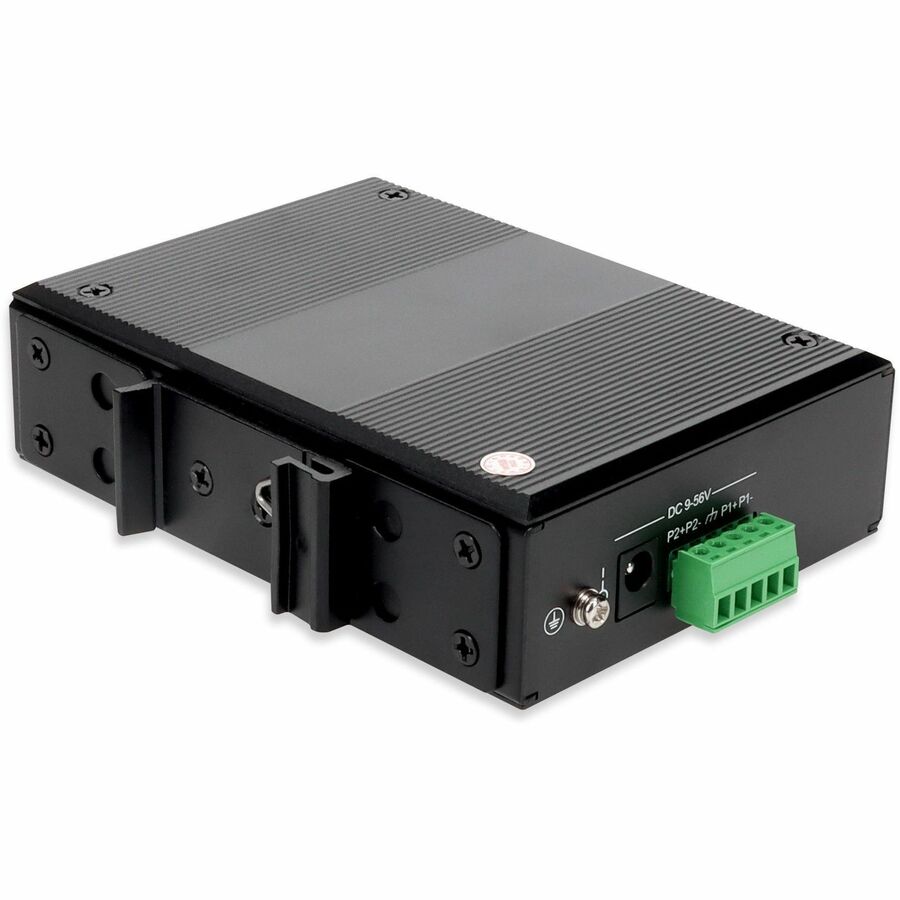

AddOn ADD-IMGMC-4RJ2SFP INDUSTRIAL MANAGED 10/100/1000BASE-TX(RJ-45) X4 TO 2 OPEN SFP PORT MEDIA CONVERT
Mfg Part Number: ADD-IMGMC-4RJ2SFP , Item #: 4618534
Image may not reflect the actual item.
Price: $398.60
Quantity:
In Stock: 11
Last Updated: Jan 17, 2026
No Sales Tax except these states
, PO and Wire.
This is a six port media converter that converts and supports four 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from four 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the four 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
Main Specification
| General Information | |
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-IMGMC-4RJ2SFP |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Multi-mode |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.10 km |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-TX |
| Power Description | |
| Power Source | AC |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | Rail-mountable |
| Height | 5.5" |
| Width | 9.5" |
| Depth | 3.8" |
| Weight (Approximate) | 8 oz |
| Miscellaneous | |
| Application/Usage | Industrial |
| Additional Information | |
| Compatibility | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
