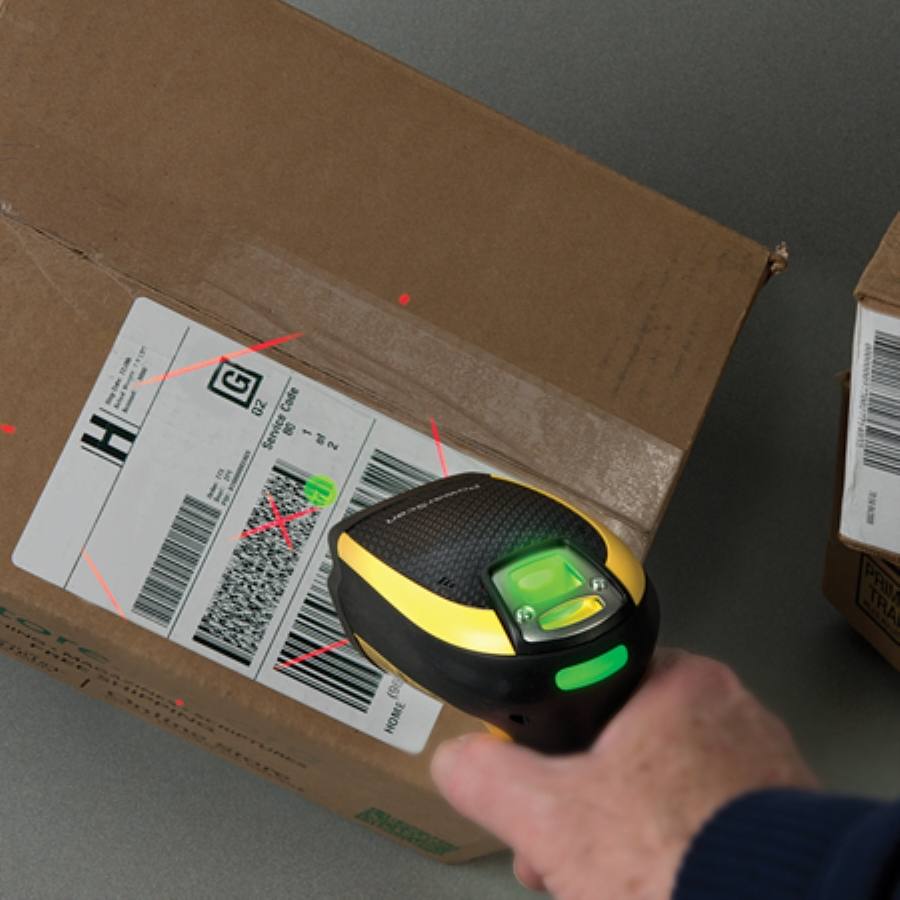

AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the PowerScan 9501 series. They combine omnidirectional reading capabilities, typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.
MOBILITY ENHANCES PRODUCTIVITY

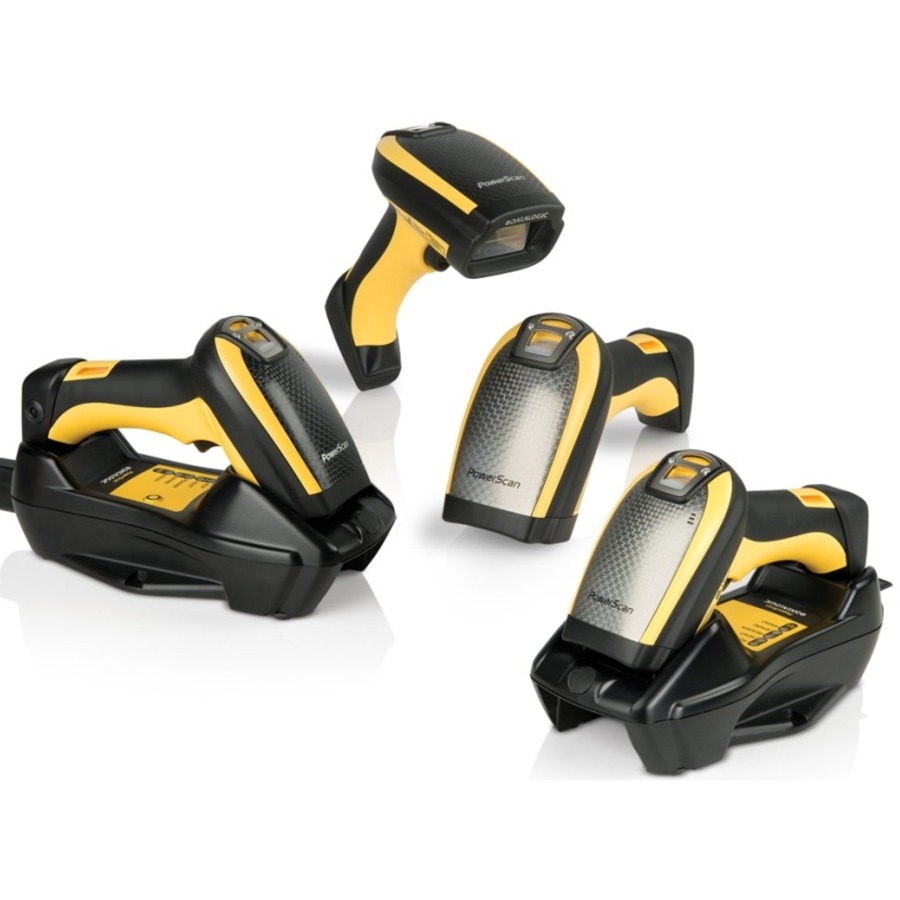

The PowerScan 9501 further enhances operator efficiency and safety with Bluetooth wireless technology; no matter if you need 1 or 100 meters of freedom: you never need to worry about getting tangled up in the cable. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. Should you need to operate 24/7, a quick 3-second battery replacement combined with a single or multi-slot battery charger allows for continuous operation without interruption.
DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.

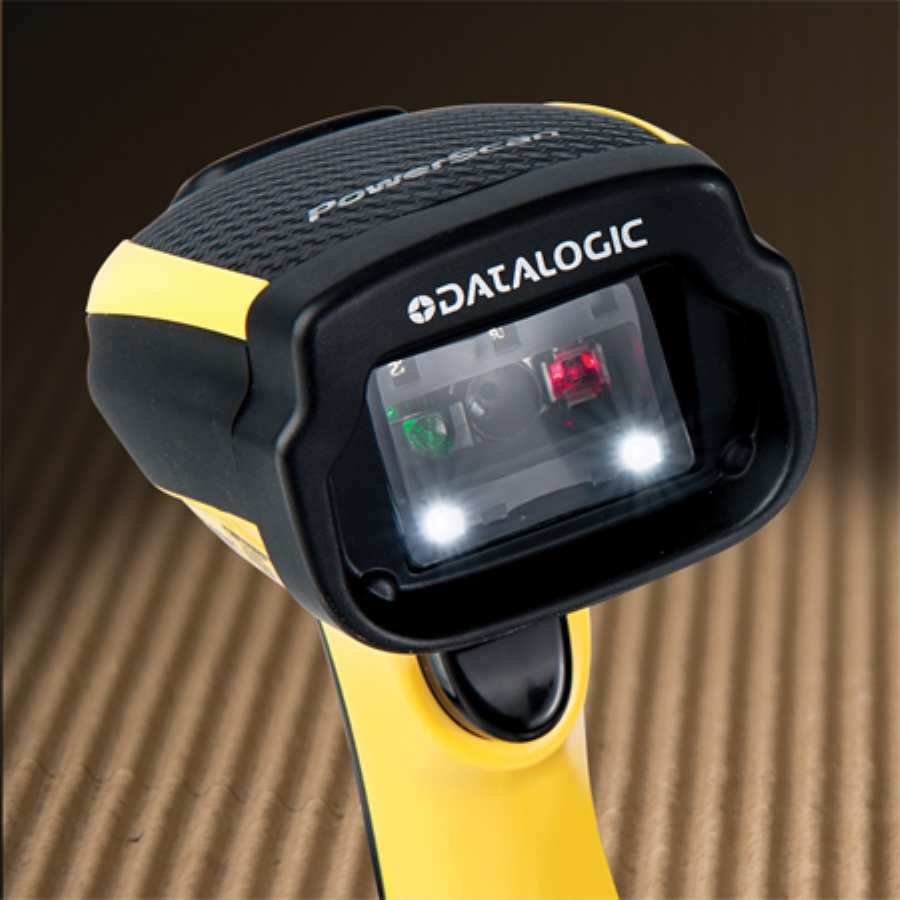

The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scanintensive applications.
BUILT TO LAST
The rugged mechanics of the PowerScan brand guarantees reliable, long term operation. Repeated shocks and indoor / outdoor usage in the toughest environmental conditions do not impact its performance or reliability.
General Information | |
Manufacturer | Datalogic S.p.A |
Manufacturer Part Number | PM9501-DHP910RBK20 |
Manufacturer Website Address | http://www.datalogic.com |
Brand Name | Datalogic |
Product Line | PowerScan |
Product Series | 9500 |
Product Model | PM9501 |
Product Name | PowerScan 9500 PM9501 Barcode Scanner Kit |
Product Type | Barcode Scanner Kit |
Technical Information | |
Connectivity Technology | Wireless |
Scanning Capability | 2D |
Scanning Capability | 1D |
Barcode Symbology Supported | 1D:
2D:
Postal Codes:
Stacked Codes:
|
Light Source | LED |
Image Sensor Type | Imager |
Scan Mode | Trigger |
Scan Pattern | Area |
Scanning Distance | 43.30" |
Features | 3GL |
Features | Ergonomic Design |
Features | Beep |
Features | Notification LED |
Display Screen | Yes |
Number of Keys | 4 |
Cable Type Included | USB |
Stand Included | Yes |
Reading Angle (Skew) | 40° |
Reading Angle (Pitch) | 40° |
Reading Angle (Roll) | 360° |
Maximum Ambient Light | 100000 lux |
Drop Specification |
|
Minimum Print Contrast | 15% |
Minimum Element Resolution (DataMatrix) | 4 mil |
Maximum Element Resolution (DataMatrix) | 10 mil |
Minimum Element Resolution (PDF417) | 10 mil |
Image Sensor Resolution | 1280 x 1024 |
Illumination Type | LED |
Illumination Color | White |
Air Electrostatic Discharge (+/-) | 20kV |
Network & Communication | |
Radio Frequency | Yes |
Interfaces/Ports | |
Host Interface | USB |
Host Interface | Serial |
Battery Information | |
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Capacity | 3350 mAh |
Maximum Battery Recharge Time | 10 Hour |
Environmental Conditions | |
Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
Humidity (Non-condensing) | 95% |
Physical Characteristics | |
Form Factor | Handheld |
Rugged | Yes |
Color Family | Dual Color |
Product Color | Black |
Product Color | Yellow |
Durability | Water Resistant |
Durability | Dust Resistant |
Weight (Approximate) | 15.52 oz |
Miscellaneous | |
Package Contents |
|
Ingress Protection (IP) Rating | IP65 |
Application/Usage | Assembly Line |
Application/Usage | Warehouse |
Application/Usage | Sorting |
Application/Usage | Picking |
Application/Usage | Ticketing |
Application/Usage | Manufacturing |
Application/Usage | Entertainment |
Application/Usage | Industrial |
Application/Usage | Logistics |
Application/Usage | Inventory |
Application/Usage | Component Tracking |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Warranty | |
Limited Warranty | 3 Year |
