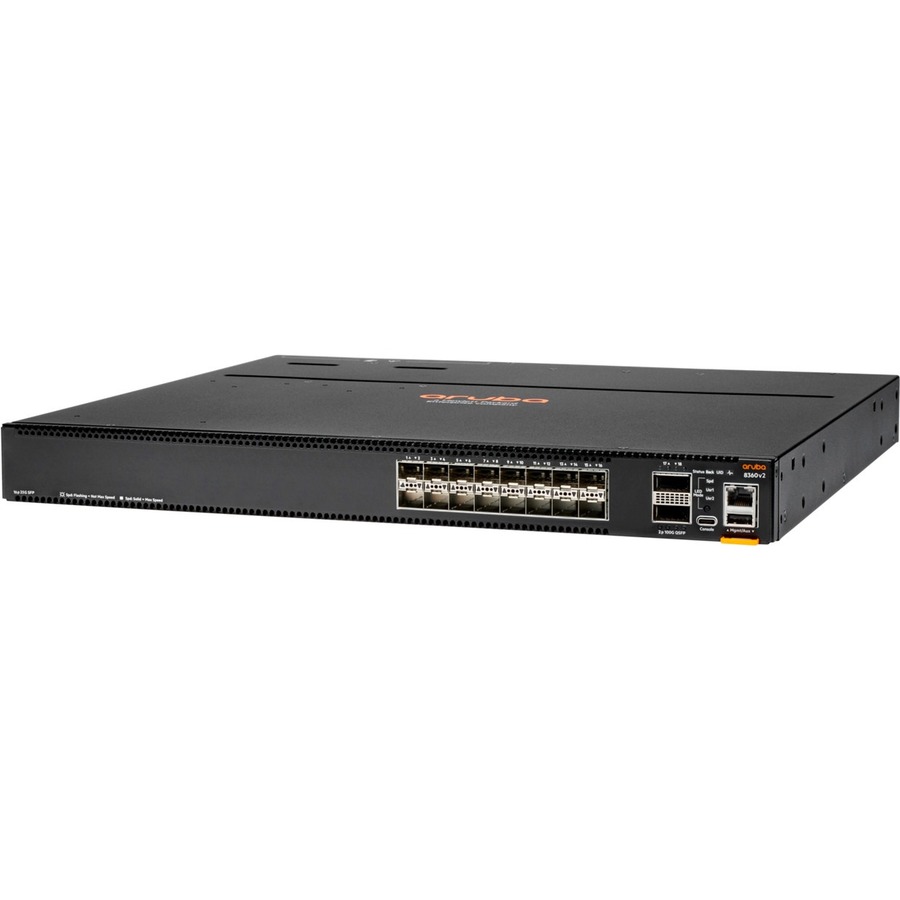

HPE JL703C#ABA ARUBA 8360-16Y2C V2 BF 3F 2AC Bundle U.S. - ENGLISH LOCALIZATION

Aruba CX 8360 Switch Series

The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.

The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	JL703C#ABA
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Series	CX 8360
Product Model	8360v2- 32Y4C
Product Name	8360v2- 32Y4C Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	4 x 100 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	32 x 25 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Optical Fiber
Ethernet Technology	25 Gigabit Ethernet
Ethernet Technology	100 Gigabit Ethernet
Network Technology	25GBase-X
Network Technology	100GBase-X
I/O Expansions
Total Number of Expansion Slots	36.0
Expansion Slot Type	SFP28
Expansion Slot Type	QSFP28
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.3ba
Networking Standards	IEEE 802.1v
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3cc
Networking Standards	IEEE 802.1ak
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1AX
Networking Standards	IEEE 802.1AEbw
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.1ae
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3an
Networking Standards	IEEE 802.3by
Networking Standards	IEEE 802.1t
Networking Standards	IEEE 802.1Qbb
Networking Standards	IEEE 802.1AEbn
Management & Protocols
Manageable	Yes
Power Description
Frequency	60 Hz
Frequency	50 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Power Consumption	425 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	16"
Weight (Approximate)	18.06 lb
Miscellaneous
Package Contents	8360v2- 32Y4C Ethernet Switch 2 x PSU 3 x Fans 2 x Post Rack Kit
TAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
