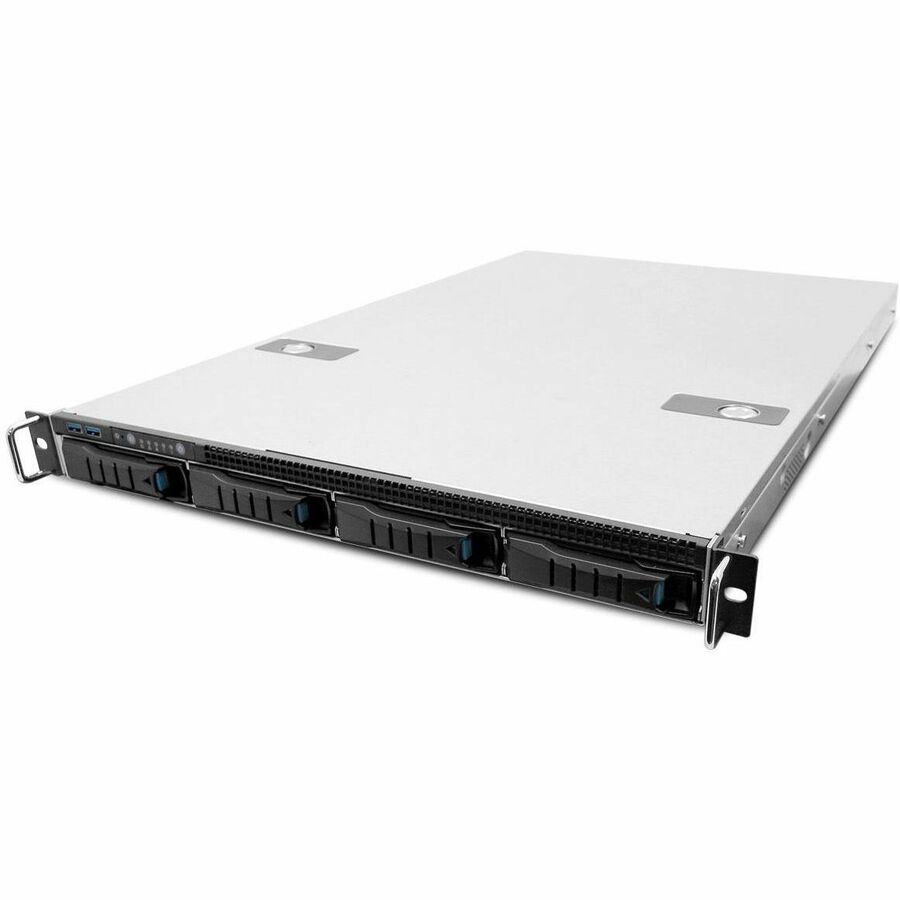

RSC-1DT is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
| General Information | |
| Manufacturer | Advanced Industrial Computer, Inc |
| Manufacturer Part Number | XE1-1DT00-02 |
| Manufacturer Website Address | http://www.aicipc.com |
| Brand Name | AIC |
| Product Series | T-series |
| Product Name | Server Case |
| Package Type | Retail |
| Product Type | Server Case |
| Technical Information | |
| Number of Fans Supported | 5 |
| Bays | |
| Number of Internal 3.5" Bays | 4 |
| Number of Internal 2.5" Bays | 4 |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Port Details | 2 x USB 3.0 |
| Front USB | Yes |
| Power Description | |
| Power Supply Installed | Yes |
| Power Supply Wattage | 450 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 26.8" |
