, PO and Wire.

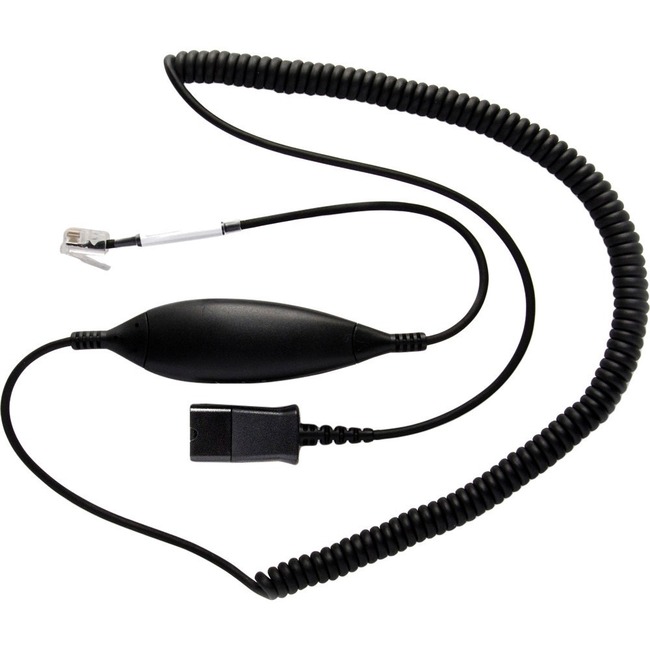

Quick Disconnect cable required for telecom headsets to enable direct connection to most standard telephone system handsets.
PRODUCT FEATURES
- Universal Connection Lead
- Fits most standard RJ11 Headset sockets
- 80-200cm coiled cable
- Compatible with JPL and Plantronics QD corded headsets
- The Plantronics compatible Quick Disconnect (QD) capability allows the headset to detach without losing the call
- EAN: 5060126951858
The BL-10+P Geni lead is perfect for offices where there is more than one type of phone system in use - the BL-10+P Geni lead comes with a compatibility switch which allows you to adjust to the correct type of handset quickly, rather than having to have two separate leads for your phones.
Simple 8-position slide adjustment - no need for a user manual. Simply slide the switch until a dial tone is heard. Standard RJ11 connector connects to virtually all telephones using a standard modular plug. Standard Plantronics compatible Quick Disconnect plug to headset.
Works with any JPL or Plantronics headset equipped with Quick Disconnect. Built-in low-current microphone amplifier enables perfect operation with telephones that require extra signal gain.
AC Output Voltage: 30mV
Insertion Gain: 11.5dB Nom Min 10.5dB, Max 12.5dB
Bias Voltage: 1.58v DC Nom, Min 1.53v DC, Max 1.76v DC
Bias Voltage: 1.49v DC Nom, Min 1.38v DC, Max 1.71v DC
| General Information | |
| Manufacturer | James Products, Ltd |
| Manufacturer Part Number | 575-099-009 |
| Manufacturer Website Address | http://www.jpltele.com |
| Brand Name | JPL |
| Product Model | BL-10+P |
| Product Name | BL-10+P Quick Disconnect/RJ-11 Phone Cable |
| Product Type | Phone Cable |
| Technical Information | |
| Cable Type | Quick Disconnect/RJ-11 |
| Cable Length | 6.56 ft |
| Connector Type on First End | RJ-11 Phone |
| Connector on First End Details | 1 x RJ-11 Phone |
| Connector Type on Second End | Quick Disconnect |
| Connector on Second End Details | 1 x Quick Disconnect |
| Device Supported | Telephone |
| Device Supported | Phone |
| Device Supported | Headphone |
| Device Supported | Headset |
| Features | Coiled |
| Miscellaneous | |
| Compatibility | JPL and Plantronics QD Corded Headsets |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
