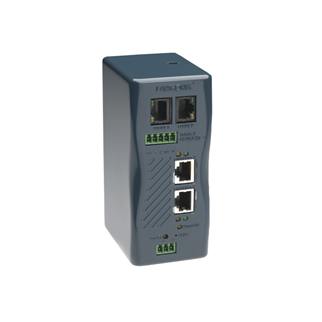

XSDR22000-01 Lantronix XPress-DR+ Device Server

The XPress-DR+ Device Server enables users to remotely configure, monitor and control PLCs, drives, motion controllers, power equipment, barcode scanners and other serial devices from anywhere over the Net. A versatile, powerful tool for remote management of automation and assembly/packaging equipment at manufacturing sites, automated distribution centers, refinery plants or any industrial setting. It provides complete access and control of virtually any type of equipment with a serial port.

General Information
Manufacturer	Lantronix, Inc
Manufacturer Part Number	XSDR22000-01
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Line	XPress-DR+
Product Model	XSDR22000-01
Product Name	XPress-DR+ Device Server
Product Type	Device Server
Processor & Chipset
Processor Speed	48 MHz
Memory
Standard Memory	256 KB
Memory Technology	SRAM
Network & Communication
Ethernet Technology	Fast Ethernet
Interfaces/Ports
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4
Power Description
Input Voltage	30 V DC
Power Consumption	2.30 W
Physical Characteristics
Height	2.2"
Width	4.8"
Depth	3.5"
Weight (Approximate)	7.41 oz
Miscellaneous
Additional Information	ModBus TCP, ModBus ASCII/RTU, DF1 Multi-Master Modem Control DTR, DSR 9-30 VDC or 9-24 VAC with chassis ground 8 KV direct contact, 15KV air discharge, ESD protection on all Serial ports
Certifications & Standards	UL CSA TUV FCC CE FM Class I Div. 2 IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3 d
Warranty
Limited Warranty	2 Year

Mechanical
Dimensions: WxHxD (mm)	88 x 57 x 123
Mounting	Din Rail Mount
Enclosure	Metal
Interface
Serial interface	RS232/RS422/RS485
Serial interface number of ports	2
Serial Interface type of connector	DB9 for RS232/Terminal Block for RS-422/485
Network interface	2 Port Ethernet RJ45 Connector
Network interface number of ports	2
Network interface type of connector	RJ45
Power
Power Input Type	Single AC or DC / Terminal Block
Operating Supply Voltage	9 to 30VDC/9 to 24VDC
Power Consumption	2.3W
Reliability
Operating Temperature	-40 to 70C
Isolation Protection	Yes
Surge Protection	-
Standards and Certifications	-

For demanding factory applications, Lantronix introduces the XPress-DR+ industrial device server. The XPress-DR+ enables users to remotely configure, monitor and control PLCs, drives, motion controllers, power equipment, barcode scanners and other serial devices from anywhere over the Net.

A versatile, powerful tool for remote management of automation and assembly/packaging equipment at manufacturing sites, automated distribution centers, refinery plants  -  or any industrial setting  -  it provides complete access and control of virtually any type of equipment with a serial port!

• Cascade multiple devices from a single network connection
• Connects enterprise systems to non-networked factory floor devices
• Enables remote firmware upgrades, saving time and money
• Supports industrial protocols
• Maximizes flexibility with an internal 2-Port 10Base-T/100Base-TX Ethernet switch
• 15kV serial ESD protection and 2.5kV Ethernet isolation
• Wide -40° -  70°C operational temperature range
• RoHS compliant

Serial Interface
2 RJ45 RS-232 Serial Ports Baud rate selectable from 300 to 230 Kbps 1 screw terminal RS-422/485 interface on Serial Port 2 (2 and 4-wire support) LED indicators for TXD and RXD activities
Serial Line Formats
Characters	7 or 8 data bits
Stop Bits	1 or 2
Parity	odd, even, none
Flow Control
Hardware	RTS/CTS
Software	XON/XOFF
Modem Control
DTR, DSR
Network Interface
2 RJ45 10Base-T/100Base-TX Ethernet ports Embedded, unmanaged, fully compliant 802.3u non-blocking Ethernet switch Store and forward architecture with 1K MAC address lookup table Automatic MDI/MDI-X crossover Full duplex IEEE 802.3x flow control Half duplex back pressure flow control IEEE 802.1d spanning tree
LED Indicators
TX/RX activity per serial Link/Activity per Ethernet port Power/System OK
Management
Internal web server (standard tunneling firmware only) SNMP (read only) Serial login Telnet login DeviceInstaller software
Isolation
8 kV direct contact, 15kV air discharge, ESD protection on all Serial ports (IEC 1000-4-2, IEC 61000-4-2) 2 K VAC / 2.8K VDC galvanic isolation between Power Input port to Ethernet ports (except Chassis ground) 2 K VAC / 2.8K VDC galvanic isolation between Power Input port to Serial ports Transient Voltage protection and ESD with max non-repetitive surge current 800 Amp (8/20 ?s) (IEC 61000-4-2) 2 K VA / 2.8K VDC galvanic isolation between Ethernet ports (except chassis ground) 2 K VA / 2.8K VDC galvanic isolation between Ethernet ports to Serial ports 40 A (5/50 ns) EFT protection (IEC 61000-4-4), 12 A (8/20 ?s) lightning protection (IEC 61000-4-5) on all Ethernet ports
Power Input
Removable screw terminal block connector 9-30 VDC or 9-24 VAC with chassis ground 2.3 Watts maximum
Environmental (Operating)
Temperature	-40°C to +70°C (-40 to 158°F)
Humidity	20% to 90% relative humidity, noncondensing
Agency Approvals
UL, CSA, FCC, CE, TUV, CTick, VCCI, FM Class 1, Div. 2
Protocols Supported
ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, and HTTP
Installable Industrial Application Protocols
ModBus TCP, ModBus ASCII/RTU, DF1 Multi-Master
CPU
Lantronix DSTNI-EX 48 MHz clock, 256 KB SRAM Internal CPU Memory
Flash Memory
2 MB Flash
EEPROM
2 KB
Reset
Front panel recessed push button
Packaging
Case	High-impact plastic case with integrated DIN Rail (35 mm) mount - IP30 enclosure rating
Dimensions (L x W x H)	8.76 x 5.7 x 12.3 cm (3.45 x 2.25 x 4.85 in), terminal blocks included
