BLACK BOX

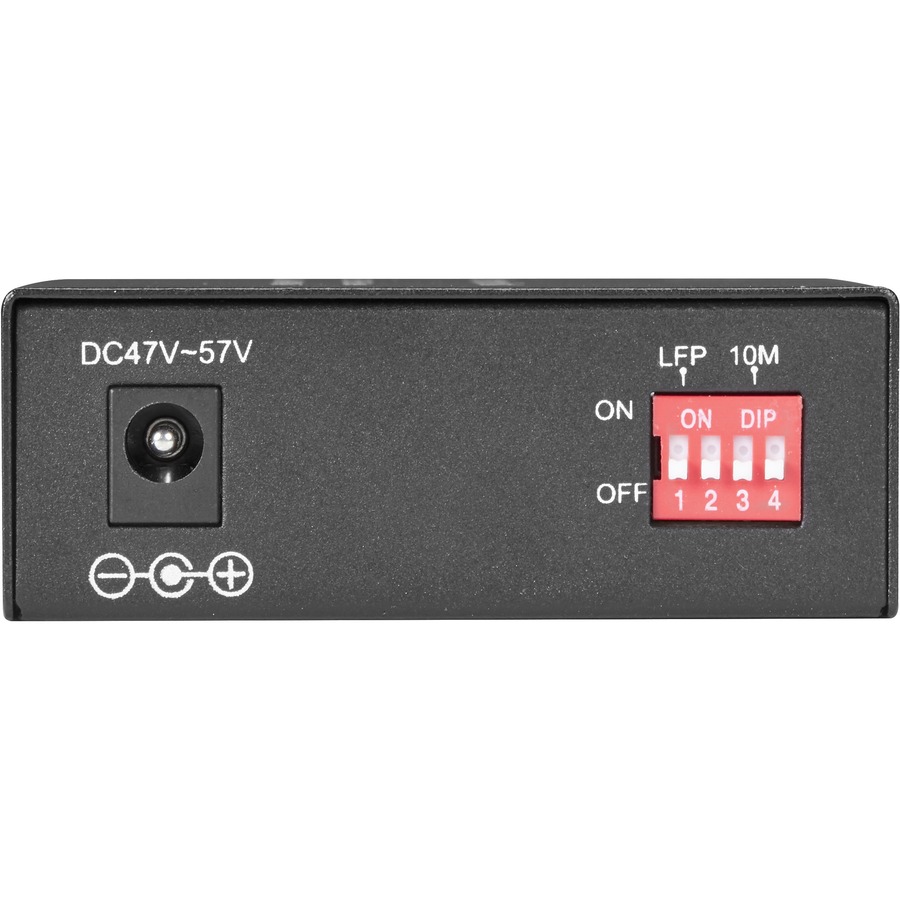

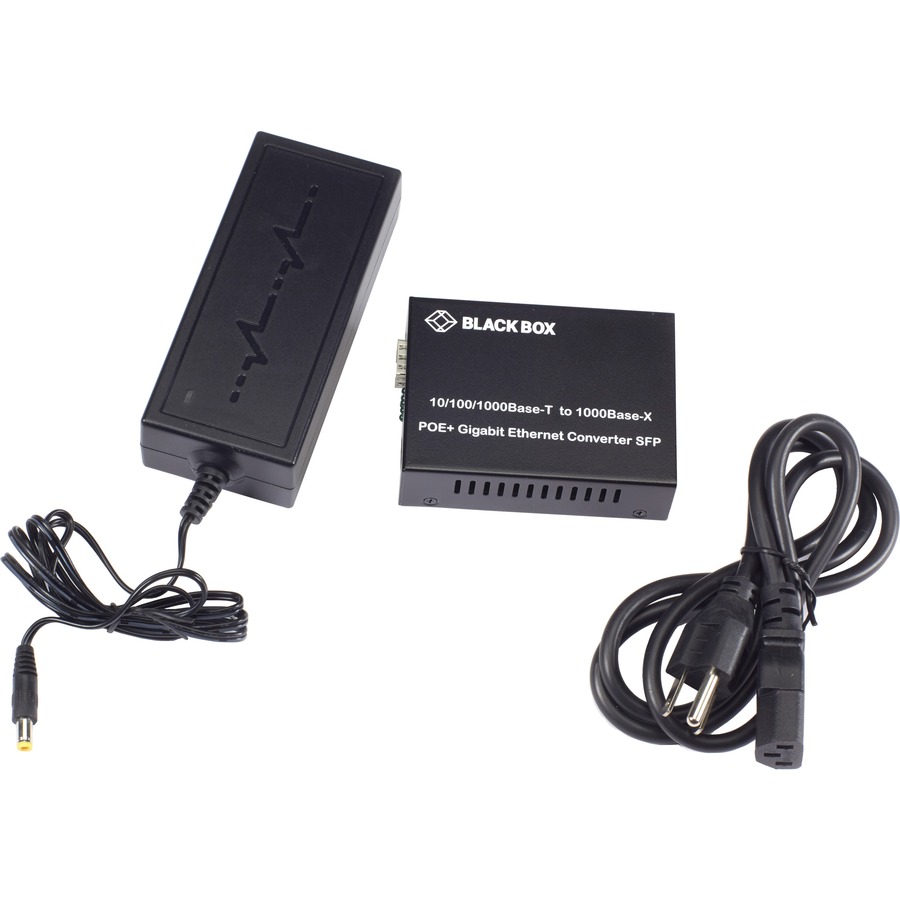

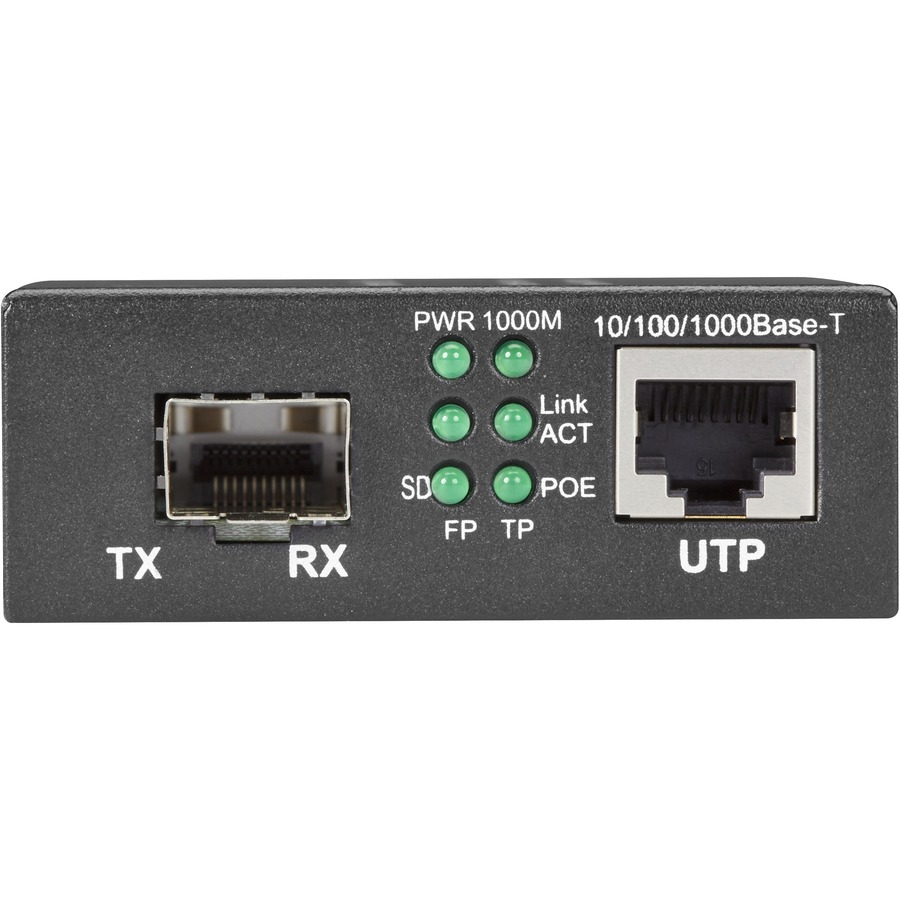

BLACK BOX LGC215A-R2 GIGABIT ETHERNET (1000-MBPS) POE+ MEDIA CONVERTER - 10/100/1000-MBPS COPPER TO 1
Mfg Part Number: LGC215A-R2 , Item #: 4610488
Image may not reflect the actual item.
Price: $234.99
+ Free Shipping
Quantity:
In Stock: 28
Last Updated: Oct 23, 2025
No Sales Tax except these states
, PO and Wire.
10/100/1000BASE-T to 1000BASE-X 802.3af/at
Easily convert 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet with this PoE converter.
Easily convert 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet with this PoE converter.
Know link media issues immediately
Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
Know where connections are down
Link Loss Carry Forward (LLCF) informs you of failing links. LLCF means when a device connected to the converter and the TP line lose the link, the converter's fiber will disconnect the link of transmit.
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC215A-R2 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Pure Networking |
| Product Name | Pure Networking Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PD |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 0.10 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 8.3/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 10/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 100Base-FX |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 33 W |
| Plug/Connector Type | C13/C14 |
| Plug/Connector Type | Barrel |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Standalone |
| Height | 1" |
| Width | 3.7" |
| Depth | 2.7" |
| Weight (Approximate) | 11.20 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 45 Day Standard Returns Policy |
Modules
BLACK BOX
(LFP411)
Black Box SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m
Black Box SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m
$52.90
$68.99
BLACK BOX
(LFP413)
Black Box SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km
Black Box SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km
$89.99
$104.99
