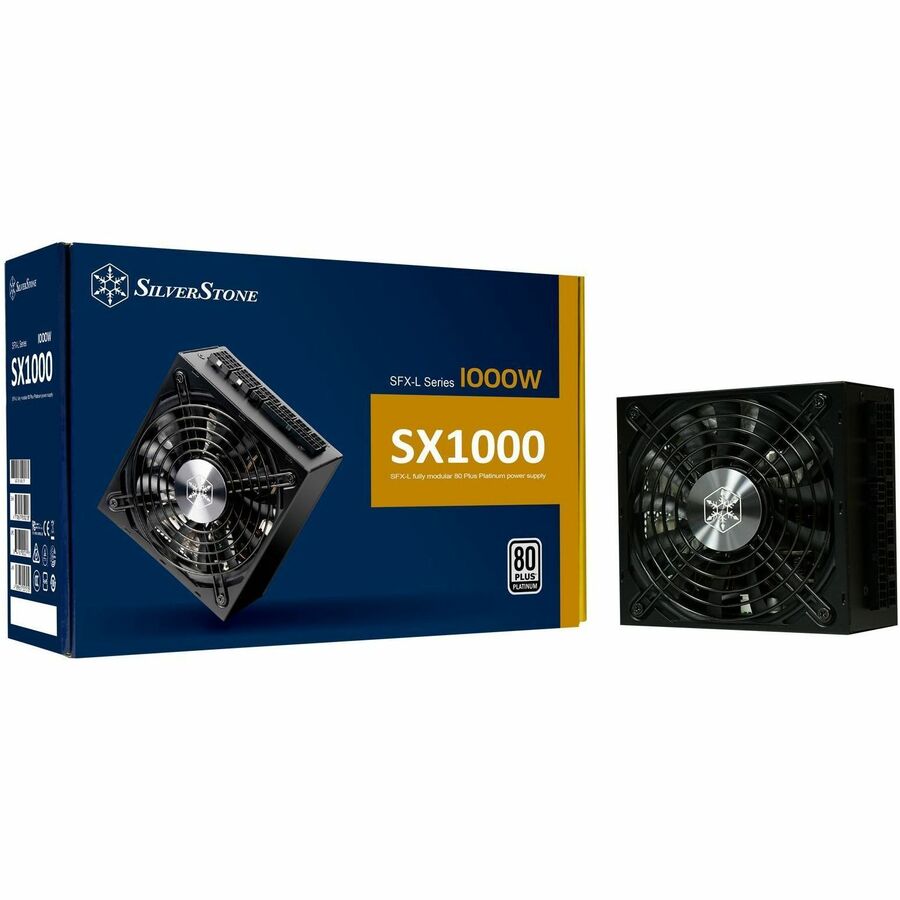

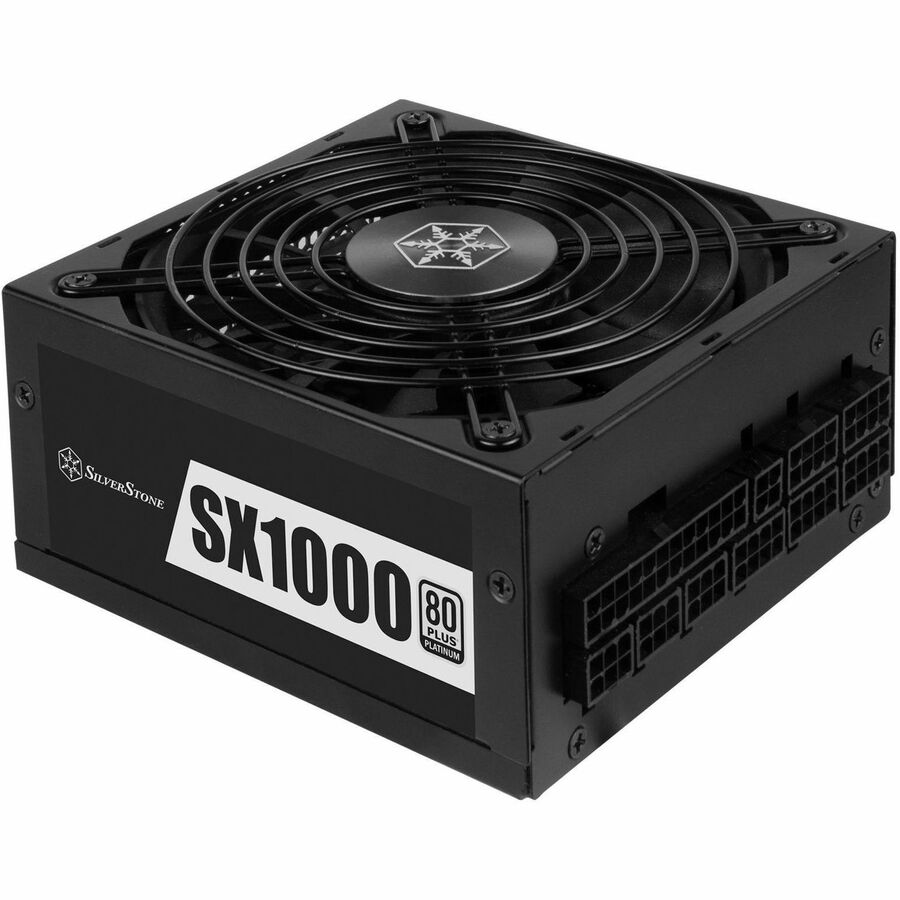

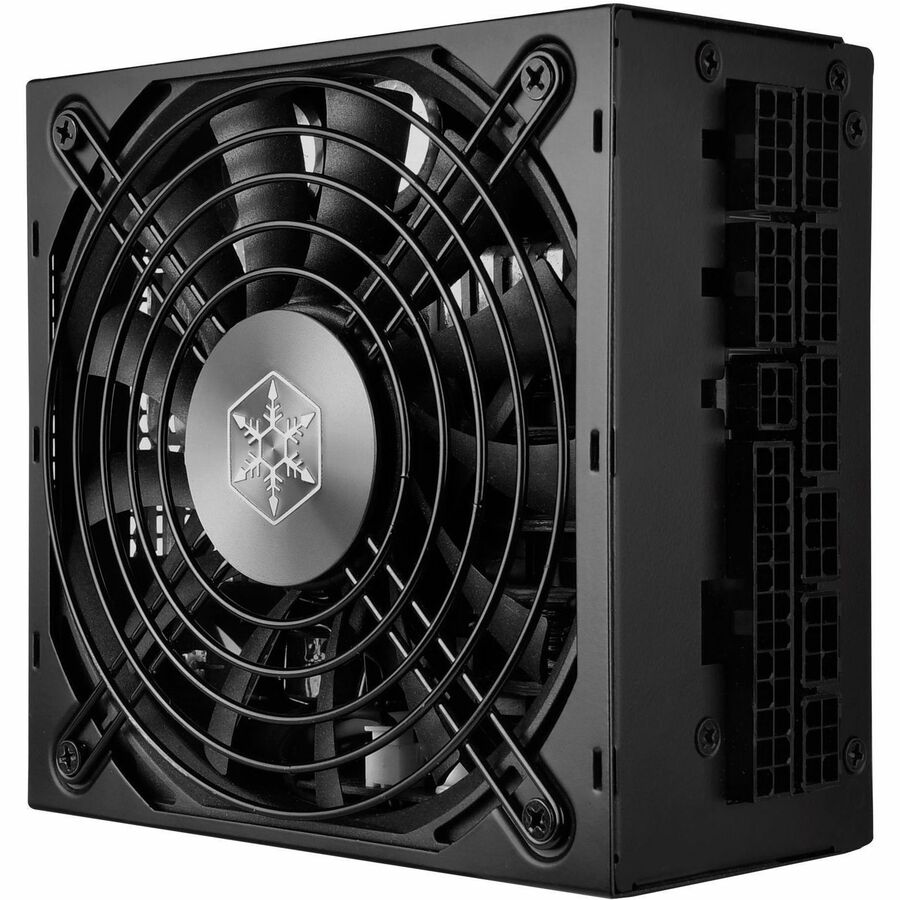

SilverStone SST-SX1000-LPT 1000W 80 PLUS Platinum Fully Modular SFX-L Power Supply
Mfg Part Number: SST-SX1000-LPT , Item #: 4607655
Image may not reflect the actual item.
Price: $425.02
+ Free Shipping
Quantity:
In Stock: 2
Last Updated: Nov 21, 2025
No Sales Tax except these states
, PO and Wire.
Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.

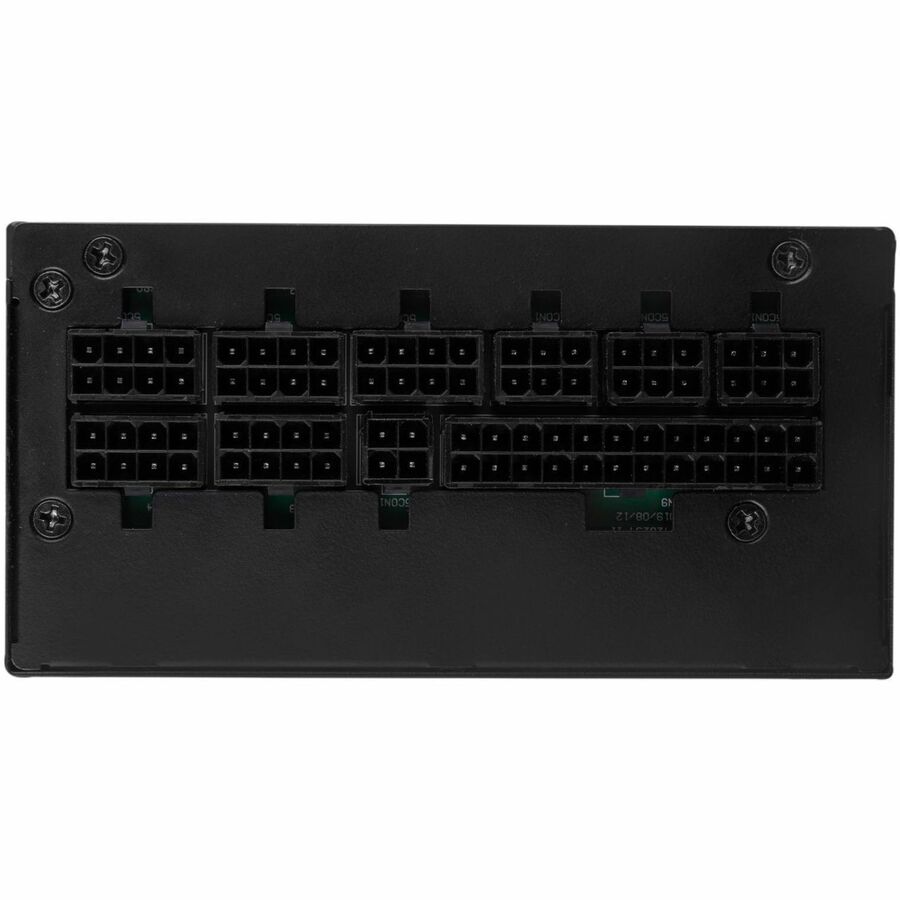

100% modular cable design
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.

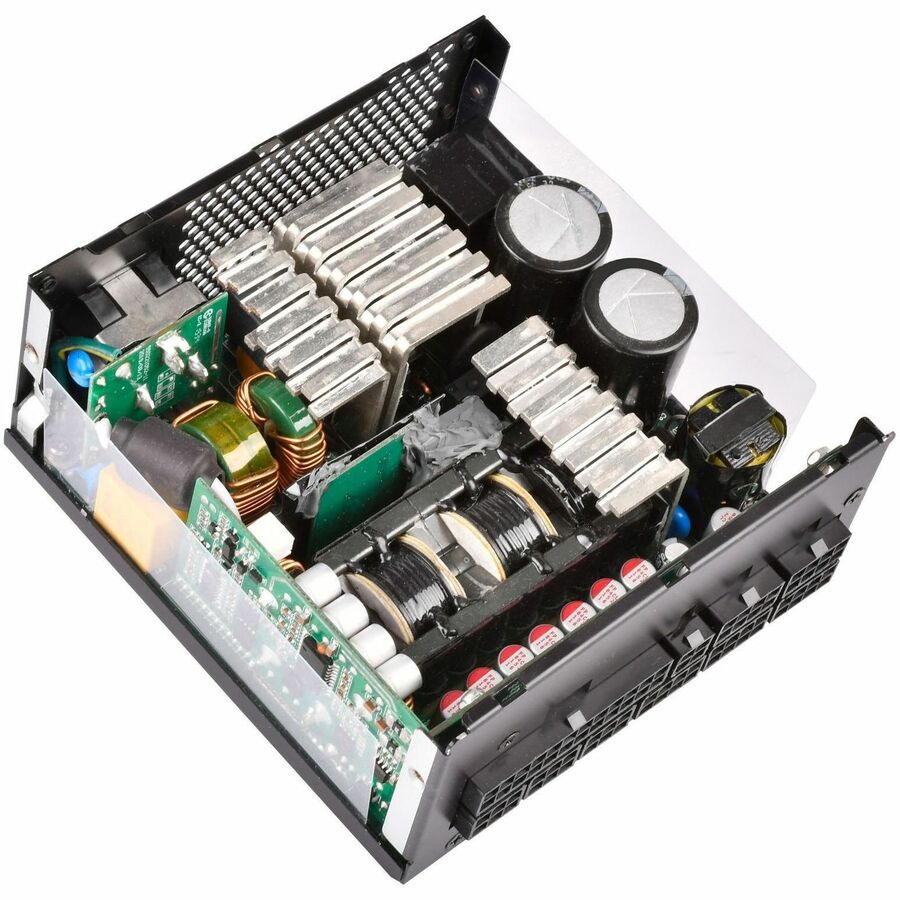

High quality construction with all Japanese capacitors.

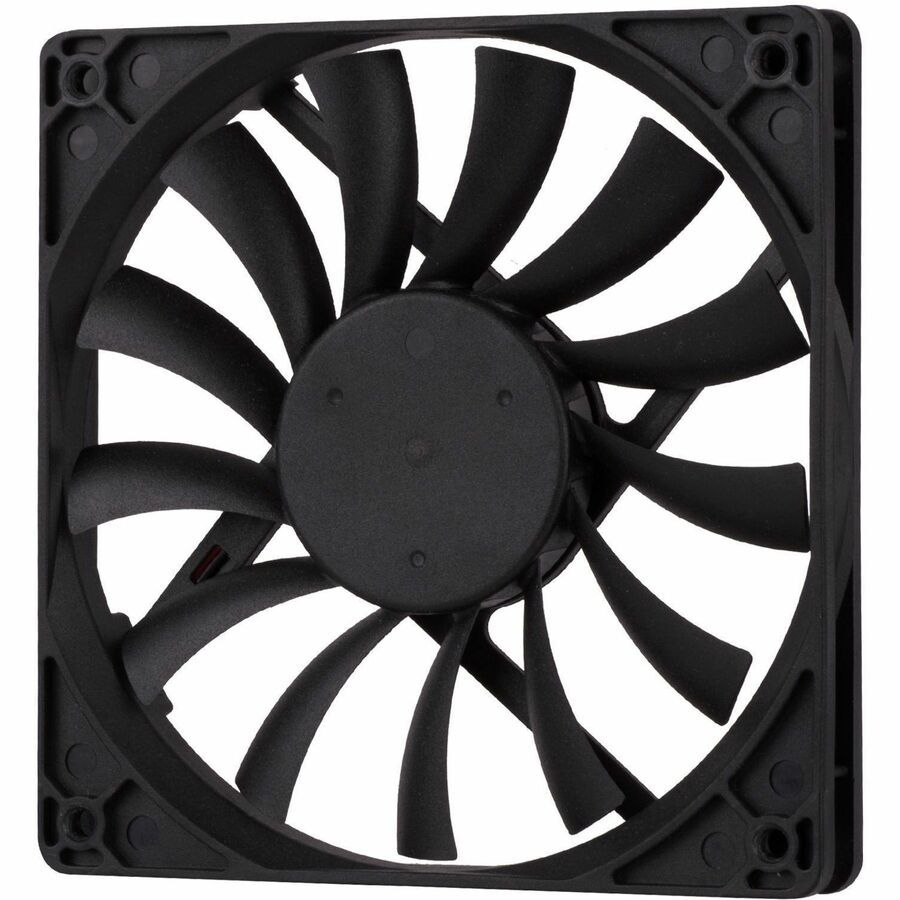

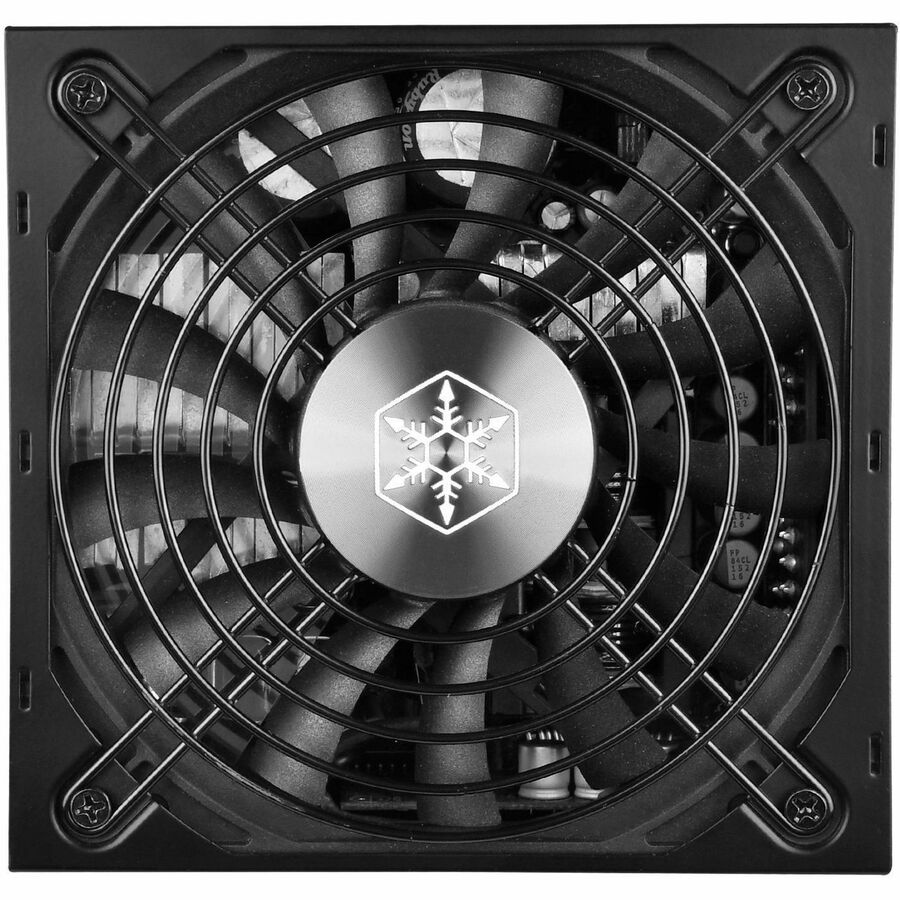

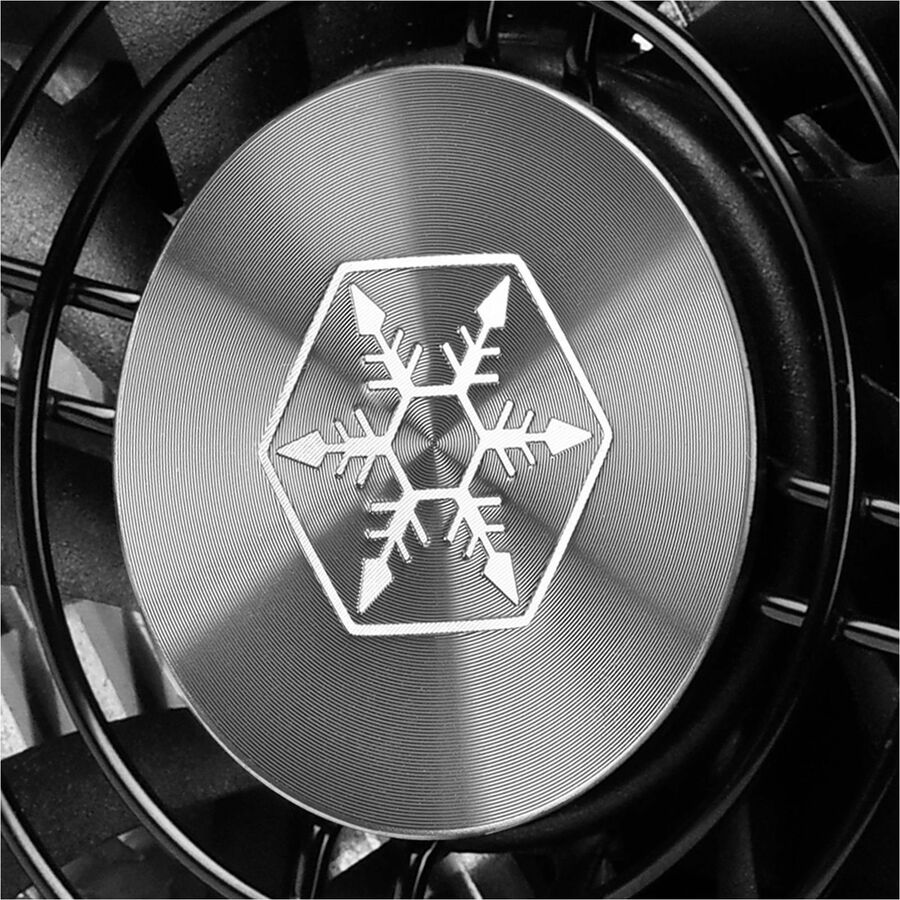

Ultra-quiet 120mm fan with intelligent RPM control guarantees cool performance and silent operation with minimum of 18dBA during fan operation. The fanless mode operation deactivates when PSU's loading reaches 20%.
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection
Main Specification
| General Information | |
| Manufacturer | SilverStone Technology, Inc |
| Manufacturer Part Number | SSTSX1000LPT |
| Manufacturer Website Address | http://www.silverstonetek.com |
| Brand Name | SilverStone |
| Product Series | Platinum |
| Product Model | SST-SX1000-LPT |
| Product Name | SX1000 Platinum 80 PLUS Platinum 1000W fully modular SFX-L power supply |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 92% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 120 mm |
| Protection Type | Over Current |
| Protection Type | Over Temperature |
| Protection Type | Short Circuit |
| Protection Type | Over Power |
| Protection Type | Over Voltage |
| Modular | Yes |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 5 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 12 V DC |
| Output Voltage | 3.3 V DC |

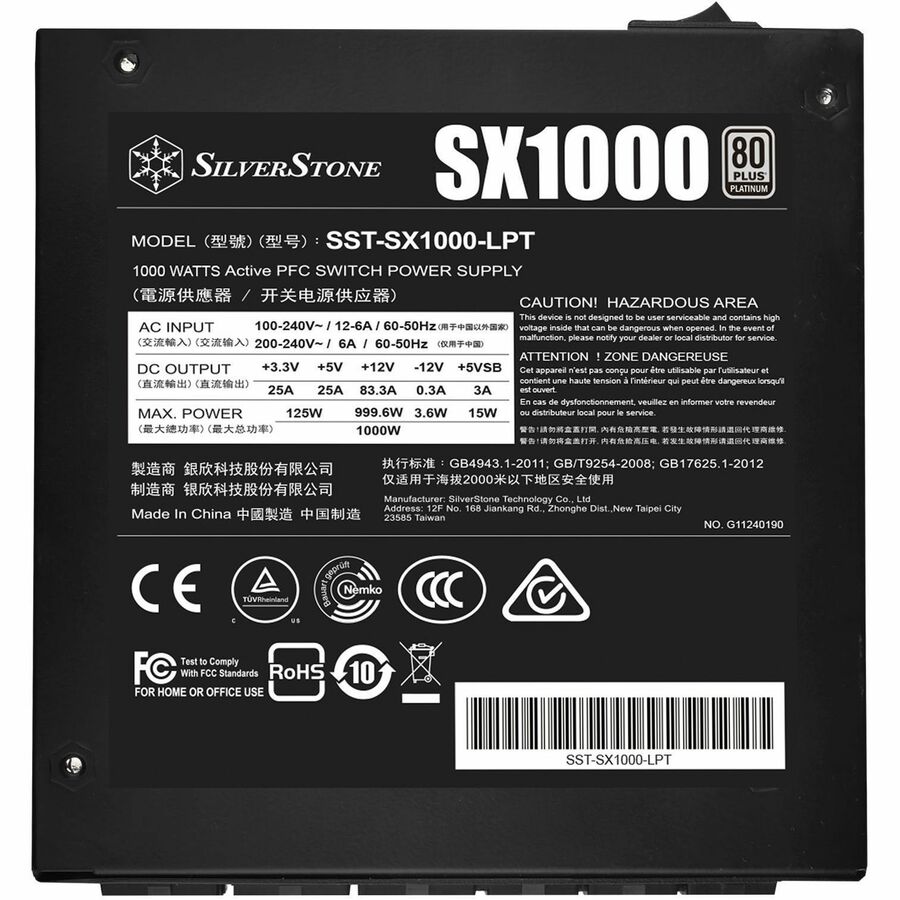

| Output Voltage Detail | 12 V DC @ 83.3 A |
| Output Voltage Detail | 5 V DC @ 25 A |
| Output Voltage Detail | 3.3 V DC @ 25 A |
| Output Voltage Detail | 5 V SB @ 3 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Power | 1000 W |
| Input Frequency | 63Hz |
| Interfaces/Ports | |

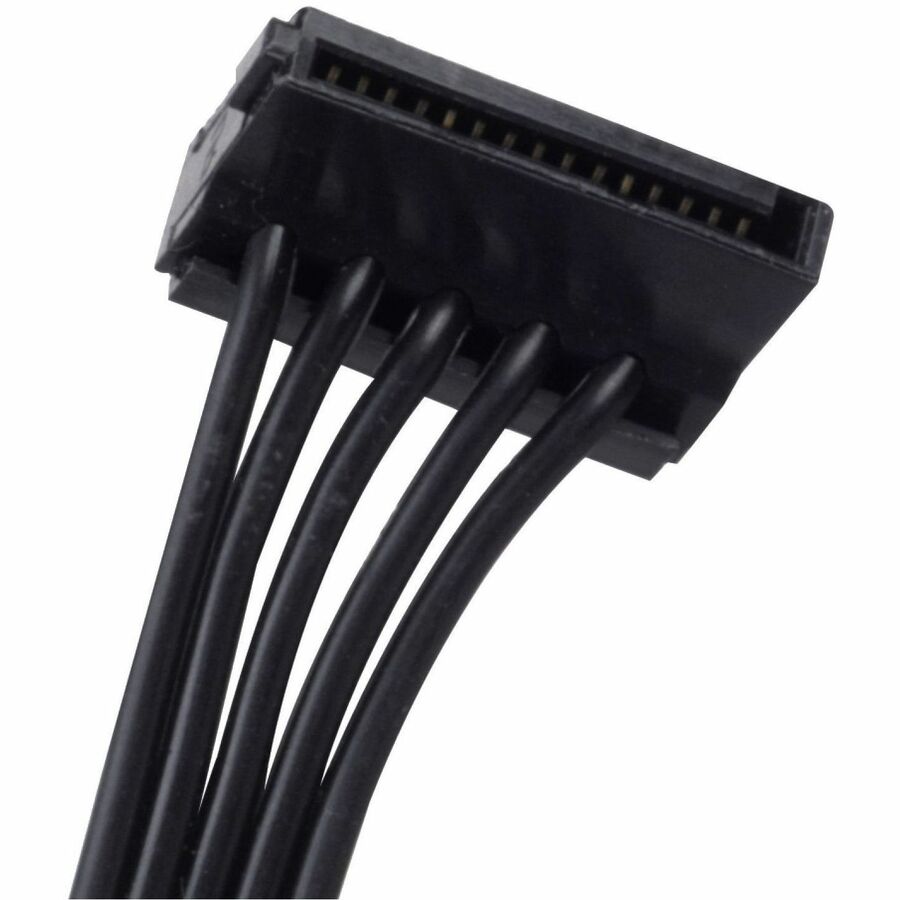

| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |

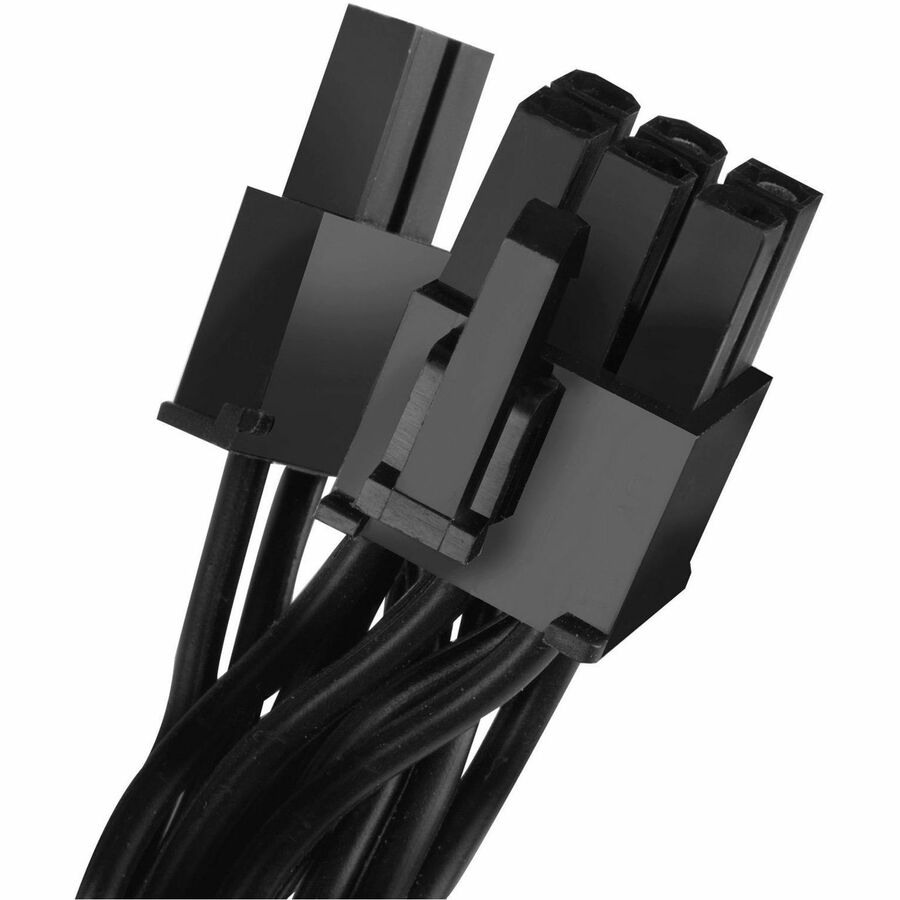

| Number of (6+2 pin) PCI Express Power Connectors | 6 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | SFX-L |
| Height | 2.5" |
| Width | 4.9" |
| Depth | 5.1" |
| Weight (Approximate) | 3.06 lb |
| Miscellaneous | |
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Platinum |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
