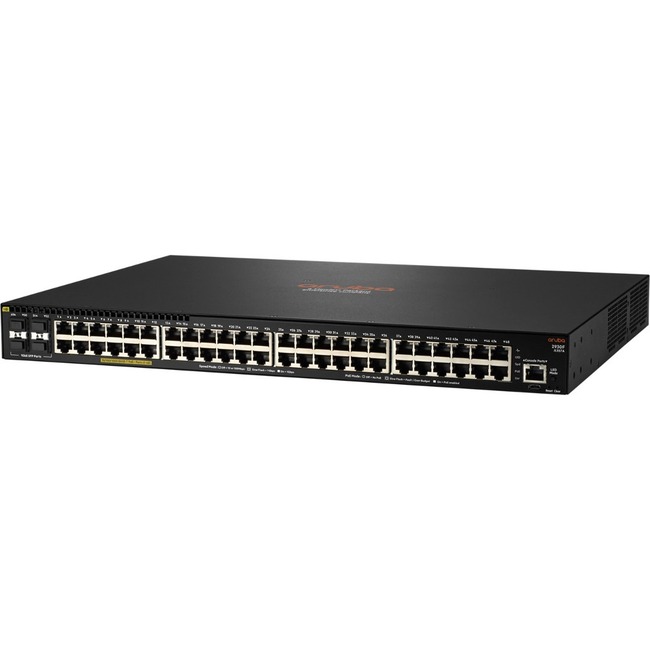

HPE JL557A#ABG ARUBA 2930F 48GPOE+4SFP 740W SWCH PL-35

The Aruba 2930F Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and flexibility to meet the needs of today and tomorrow's network programmability and automation requirements. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Tunnel Node, robust QoS, RIP routing, and IPv6 with no software licensing required.

The Aruba 2930F Switch Series provides a convenient and costeffective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust Layer 3 feature set includes a limited lifetime warranty

FEATURES AND BENEFITS | Unified Wired and Wireless ?

• Aruba ClearPass Policy Manager supports unified wired and wireless policies using Aruba ClearPass Policy Manager ?
• Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected ?
• User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass ?
• Tunnel Node provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally ?
• HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution ?
• Static IP visibility allows ClearPass to do accounting for clients with static IP address

Software-defined networks ?

• Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting

Quality of Service (QoS) ?

• Traffic prioritization (IEEE 802.1p) Allows real-time traffic classification into eight priority levels mapped to eight queues ?
• Layer 4 prioritization enables prioritization based on TCP/ UDP port numbers ?
• Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
• Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums ?
• Large buffers provide graceful congestion management ?
• Unknown Unicast Rate Limiting throttles unicast packets with unknown destination addresses and limits flooding on the VLAN

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	JL557A#ABG
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Series	2930F
Product Model	2930F 48G PoE+ 4SFP
Product Name	2930F 48G PoE+ 4SFP 740W Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	48 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network Technology	10GBase-X
I/O Expansions
Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP
Number of SFP Slots	4
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.1v
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.3ad
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	740 W
Power Source	Power Supply
Power Source	PoE+
Power Consumption	980 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	12.8"
Weight (Approximate)	10.56 lb
