GIGABYTE

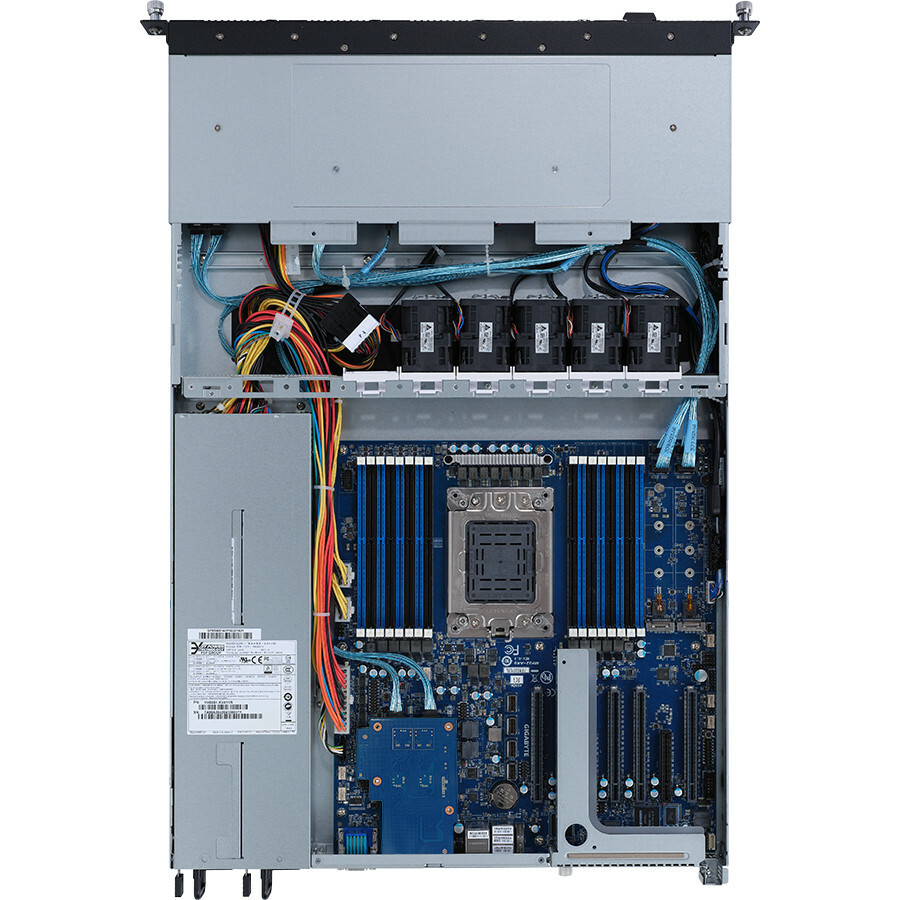

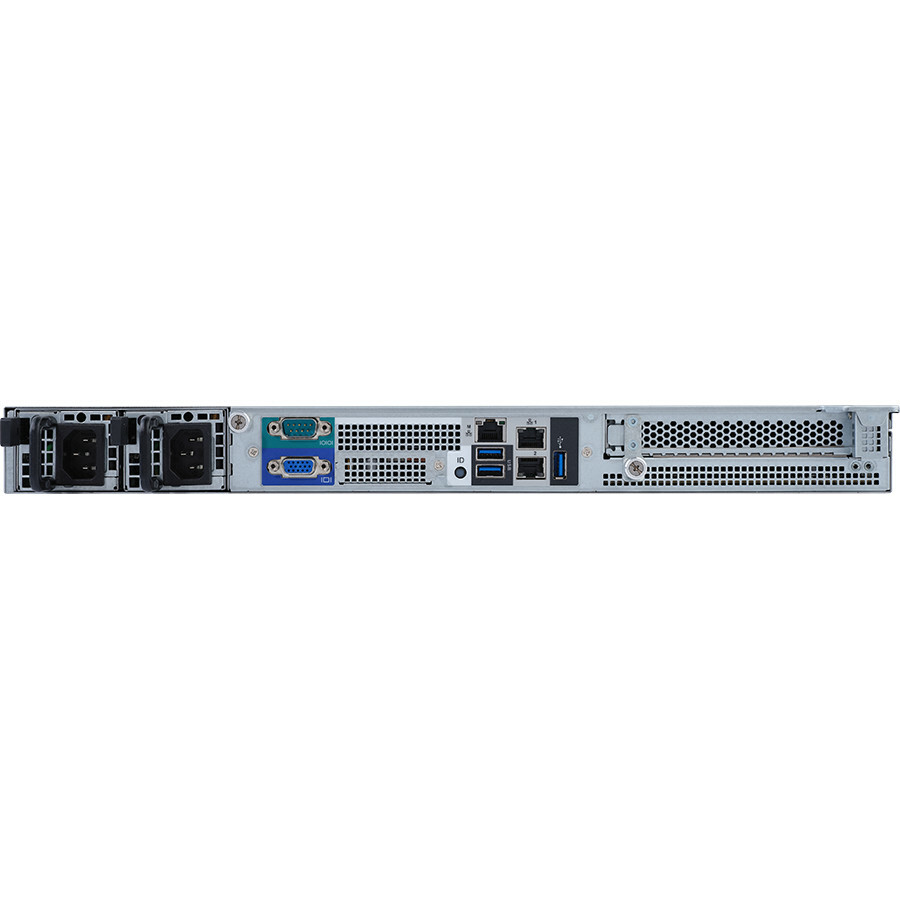

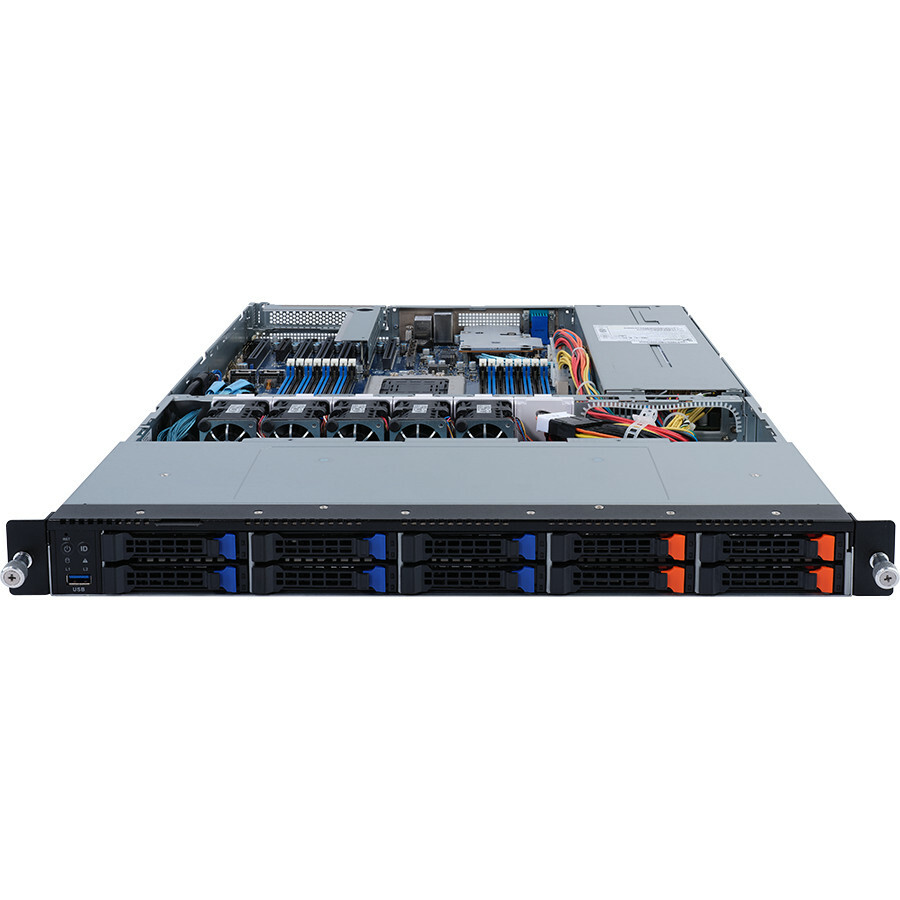

Gigabyte SV R152-P31 Ampere Altra 2U ARM MP32-AR1 DDR4 10x2.5HS SATA 2x650W
Mfg Part Number: R152-P31 , Item #: 4602126
Image may not reflect the actual item.
Price: $2,645.90
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 20, 2025
No Sales Tax except these states
, PO and Wire.
1U | Rack Server
For a low cost and easy to install server, these 1U rack servers have either a 1-socket or 2-socket configuration, while coming in a comprehensive range of servers around AMD, Intel, and Ampere processors. Measuring in at 1.75" (44.45mm) in height and 19" (482.6mm) in width, these servers are easy to deploy.
Main Specification
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R152-P31 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Model | R152-P31 (Rev. 100) |
| Product Name | R152-P31 (Rev. 100) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4926 |
| Processor Supported | Altra |
| Processor Manufacturer | Ampere |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Fedora 33 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 x64 |
| Operating System Supported | CentOS 8.3 |
| Operating System Supported | Oracle Linux |
| Operating System Supported | Ubuntu 20.04.1 LTS x64 |
| Operating System Supported | Debian 10.9 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 x64 |
| Operating System Supported | Ubuntu 18.04 LTS x64 |
| Operating System Supported | FreeBSD 13.0 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 650 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 26" |
| Miscellaneous | |
| Package Contents |
|
