BIXOLON

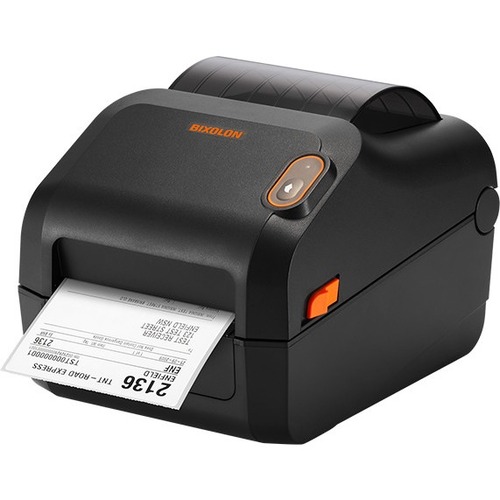

BIXOLON XD3-40DDK BLK USB I/F 5IPS PRINT SPEED PEELER DIRECT THERMAL 203DPI 118MM
Mfg Part Number: XD3-40DDK , Item #: 4599302
Image may not reflect the actual item.
Price: $242.38
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 08, 2025
No Sales Tax except these states
, PO and Wire.
Following in the footsteps of the industry recognised SRP-E770 series, the entry-level XD3-40d is a new Direct Thermal 4-inch (118mm) Desktop workhorse offering day-to-day quality 203 dpi output across your logistics, warehousing and manufacturing installations. Simple to setup and use, the XD3-40d also benefits from tool-less printhead and platen replacement to ensure uptime is maximised. Product or asset labelling, Document management, patient and quest identification, Shipping and logistics printing, the XD3-series offers a balance of cost and performance, including print speed, tear and peel media handling, plus networked options.
Main Specification
| General Information | |
| Manufacturer | Bixolon America, Inc |
| Manufacturer Part Number | XD3-40DDK |
| Manufacturer Website Address | http://www.bixolon.com |
| Brand Name | Bixolon |
| Product Series | XD3-40 |
| Product Model | XD3-40d |
| Product Name | 4 inch Direct Thermal Label Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 39.37" |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | UPC/EAN |
| Barcode Symbology Supported | UPC-E |
| Barcode Symbology Supported | Data Matrix |
| Barcode Symbology Supported | TLC 39 |
| Barcode Symbology Supported | Interleaved 2 of 5 |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | Aztec Code |
| Barcode Symbology Supported | Maxi Code |
| Barcode Symbology Supported | Code 11 |
| Barcode Symbology Supported | GS1 DataBar |
| Barcode Symbology Supported | Standard 2 of 5 |
| Barcode Symbology Supported | Codablock |
| Barcode Symbology Supported | Code 128 |
| Barcode Symbology Supported | LOGMARS |
| Barcode Symbology Supported | Micro PDF-417 |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | Industrial 2 of 5 |
| Barcode Symbology Supported | MSI |
| Barcode Symbology Supported | Plessey |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | IMB |
| Barcode Symbology Supported | Code 49 |
| Barcode Symbology Supported | QR Code |
| Barcode Symbology Supported | Code 93 |
| Barcode Symbology Supported | PDF417 |
| Peel Facility | Yes |
| Application/Usage | Desktop |
| Optional Connectivity | Ethernet |
| Optional Connectivity | Serial (RS-232) |
| Fonts Included | 5 BPL-E |
| Fonts Included | Unicode supported |
| Fonts Included | UTF-8 |
| Fonts Included | One SLCS |
| Fonts Included | UTF-16BE |
| Fonts Included | 23 Code Page |
| Fonts Included | One BPL-Z |
| Fonts Included | 16 BPL-Z |
| Fonts Included | 10 SLCS |
| Fonts Included | UTF-16LE |
| Print Technology | Direct Thermal |
| Memory | |
| Standard Memory | 64 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| USB | Yes |
| Media Types & Handling | |
| Media Type | Gap |
| Media Type | Label |
| Media Type | Notch |
| Media Type | Fanfold |
| Media Type | Black Mark |
| Media Type | Continuous Label |
| Media Sensor | Reflective Media Sensor |
| Media Sensor | Head Open Sensor |
| Media Sensor | Transmissive Media Sensor |
| Media Thickness | 7.87 mil |
| Maximum Roll Diameter | 5" |
| Maximum Label Width | 4.65" |
| Fonts & Emulation | |
| Language Emulation | SLCS |
| Language Emulation | BPL-Z |
| Language Emulation | BPL-D |
| Language Emulation | BPL-E |
| Software | |
| Operating System Supported | Driver / Utility Windows Driver (Europlus / Seagull) Linux / Mac CUPS Driver Virtual COM USB / Ethernet Driver, Utility Program, OPOS Driver Bartender Ultralite for BIXOLON Label Artist-II™ SDK / Plugin Windows SDK, Linux SDK |
| Power Description | |
| Power Source | Power Adapter |
| Power Source | AC Supply |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) - 104°F (40°C) |
| Operating Relative Humidity | 10% - 80% |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Orange |
| Product Color | Black |
| Height | 6.6" |
| Width | 7.1" |
| Depth | 8.7" |
| Weight (Approximate) | 3.75 lb |
| Miscellaneous | |
| Power Cable Localization | US |
| Platform Supported | PC |
| Platform Supported | Mac |
| Energy Star | Yes |
