APC APDU10151ME Monitored Input

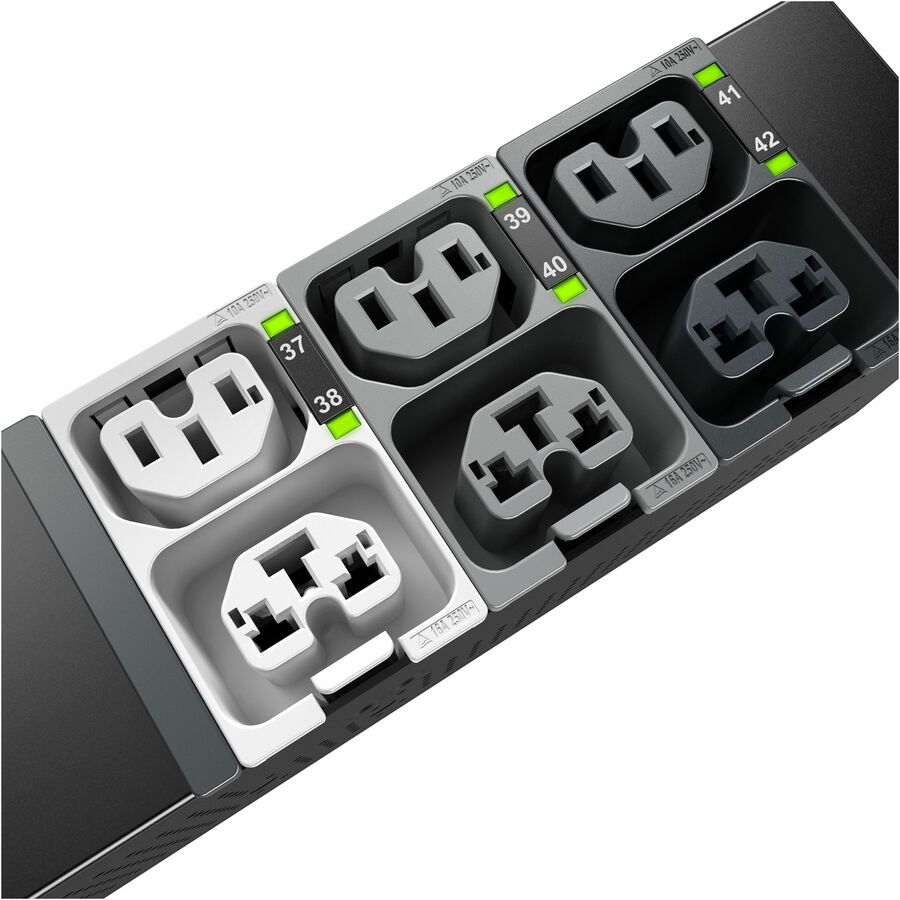

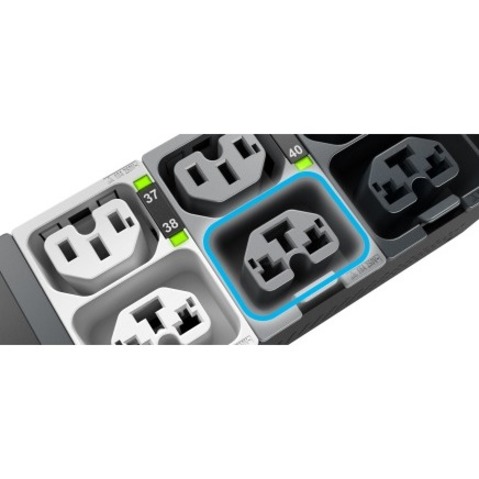

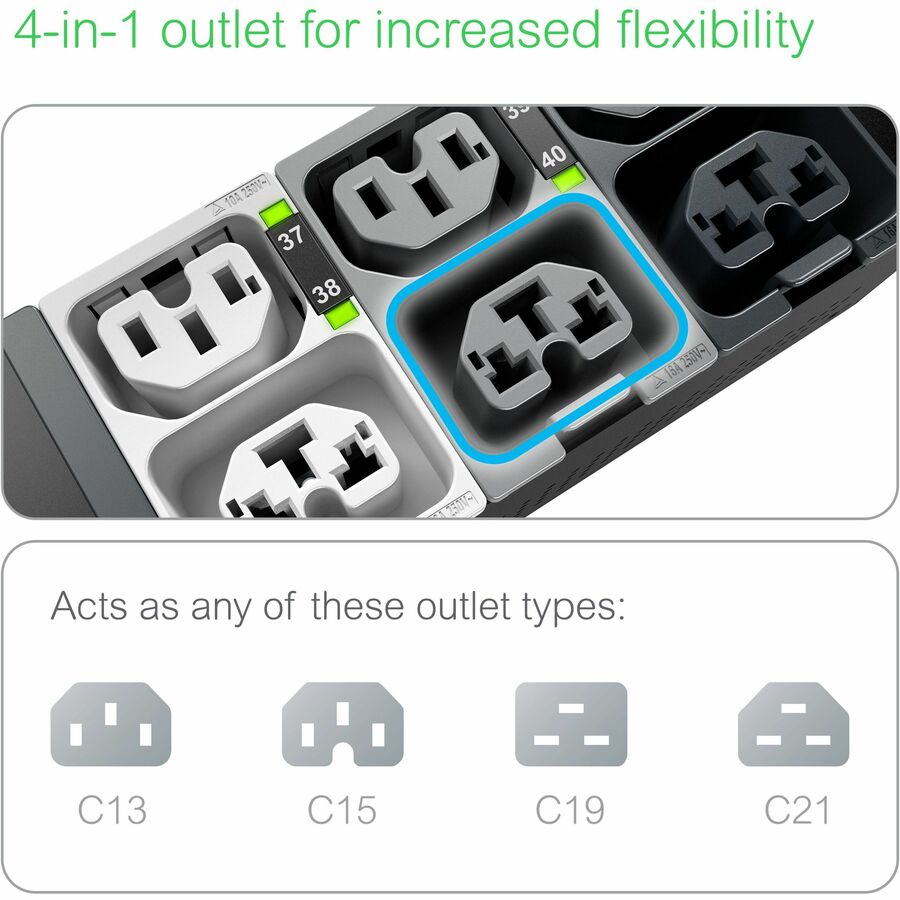

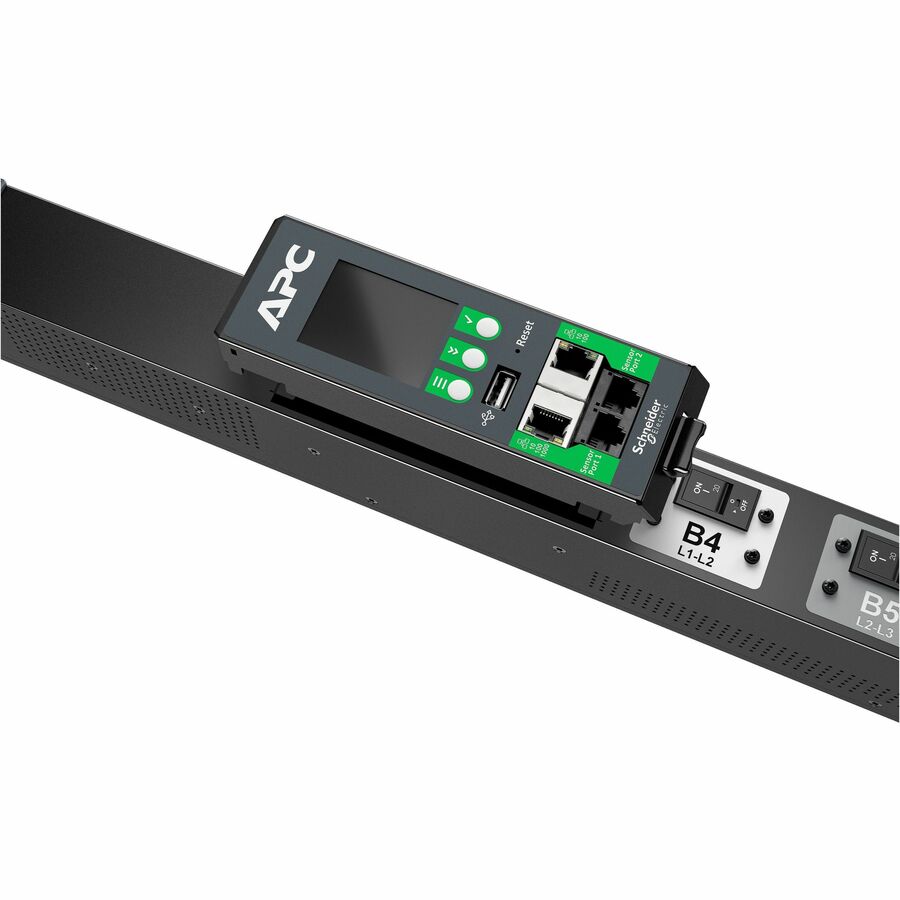

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU10151ME
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	NetShelter

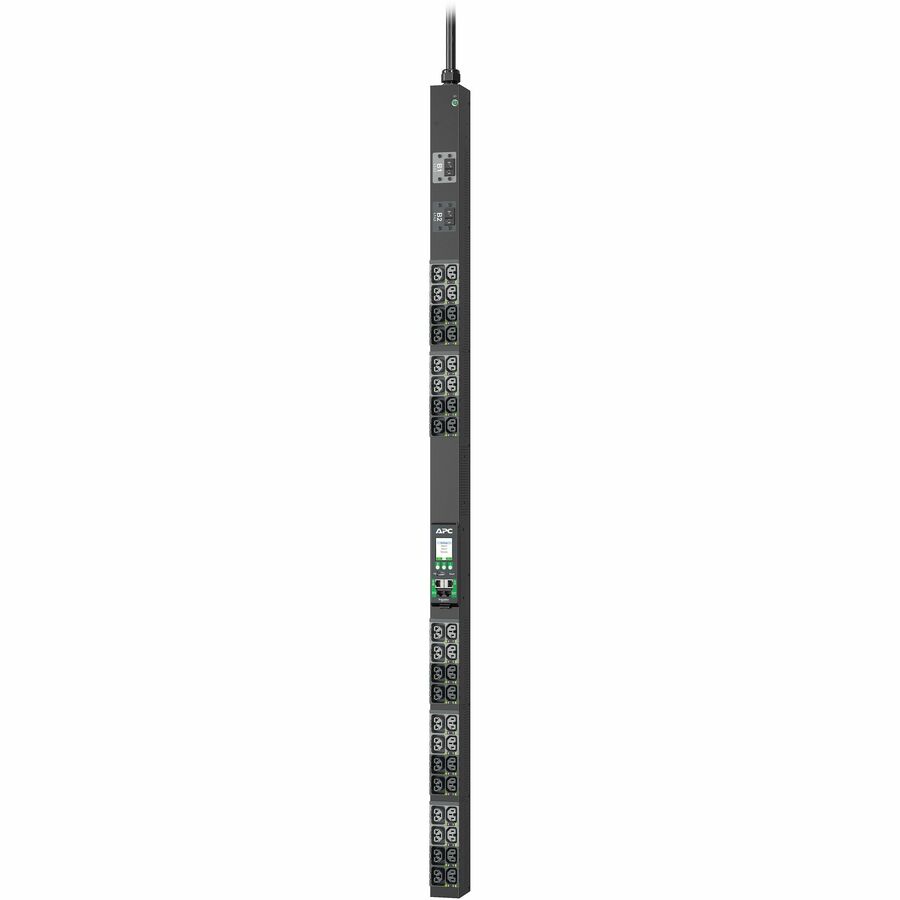

Product Name	NetShelter 40-Outlets PDU
Product Type	PDU
Technical Information
PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13/C15/C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	20 x IEC 60320 C13/C15/C19/C21
Receptacle Detail	20 x IEC 60320 C13/C15
Protection Type	Overload Protection
Power Description
Input Voltage	208 V
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC
Power Rating (VA)	4992 VA
Power Rating (Watt)	5000 W
Input Current	30 A
Interfaces/Ports
Network (RJ-45)	Yes
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Rack
Rack Height	0U
Cord Length	9.84 ft
Height	58.7"
Width	2.2"
Depth	3"
Weight (Approximate)	14.55 lb
Miscellaneous
Certifications & Standards	TAA Compliance BAA Compliance
Product Take Back Program	No
REACH free of SVHC	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU10151ME_ROHS_DECLARATION&p_FileName=APDU10151MEKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552062981&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552062981&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	India
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace
