PANORAMA ANTENNAS DWMM4-6-60-05NJ WALL DESK MOUNT 4X4 4G/5G ANT 0.5M N F
Mfg Part Number: DWMM4-6-60-05NJ , Item #: 4593633
, PO and Wire.
- 4x4 MiMo 4G/5G antenna solution
- Wall, mast or desk mount
- Optional GPS/GNSS - 26dB LNA
- Integrated coaxial cables

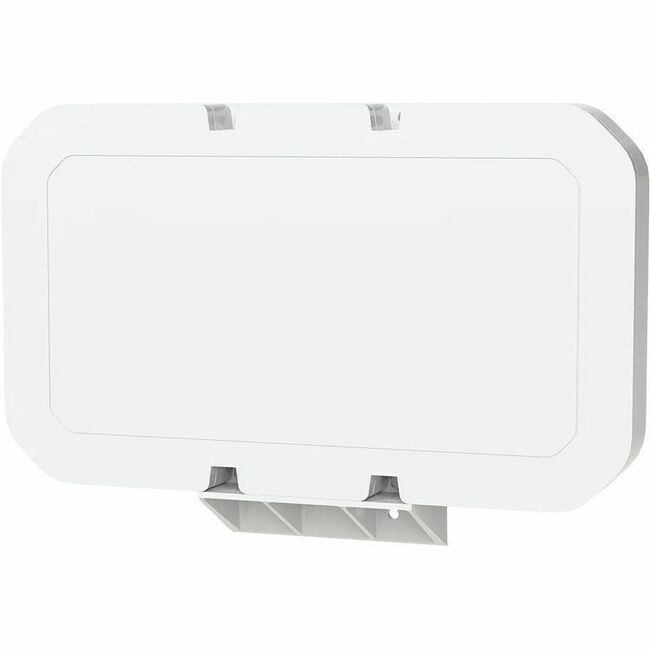

The DWMM4[G]-6-60 antenna provides 4x4 MiMo solution for global 4G/5G networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications.
The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet.
The omni-directional radiation pattern allows easy placement of the antenna without requiring directional alignment.
The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
The antenna is fitted with integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.
| General Information | |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | DWMM466005NJ |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Brand Name | Panorama Antennas |
| Product Name | 4x MiMo 4G/5G Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 1427MHz to 6000MHz |
| Operating Frequency Range | 617MHz to 960MHz |
| Antenna Gain | 26 dB |
| Antenna Gain (Isotropic) | 7 dBi |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Height | 8.70" |
| Depth | 1.57" |
| Form Factor | Desk Mount |
| Form Factor | Mast/Wall/Railing |
| Form Factor | Panel |
| Miscellaneous | |
| Application/Usage | Cellular Network |
| Application/Usage | Indoor |
| Application/Usage | Outdoor |
| Application/Usage | GPS |
