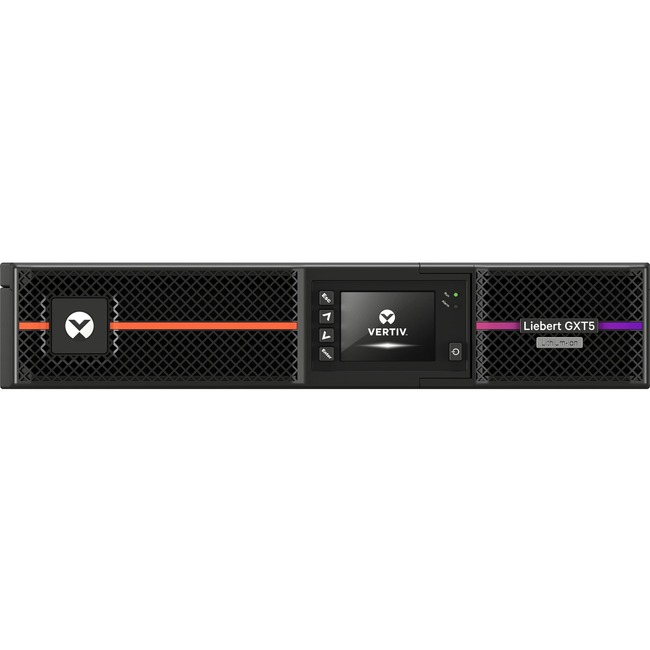

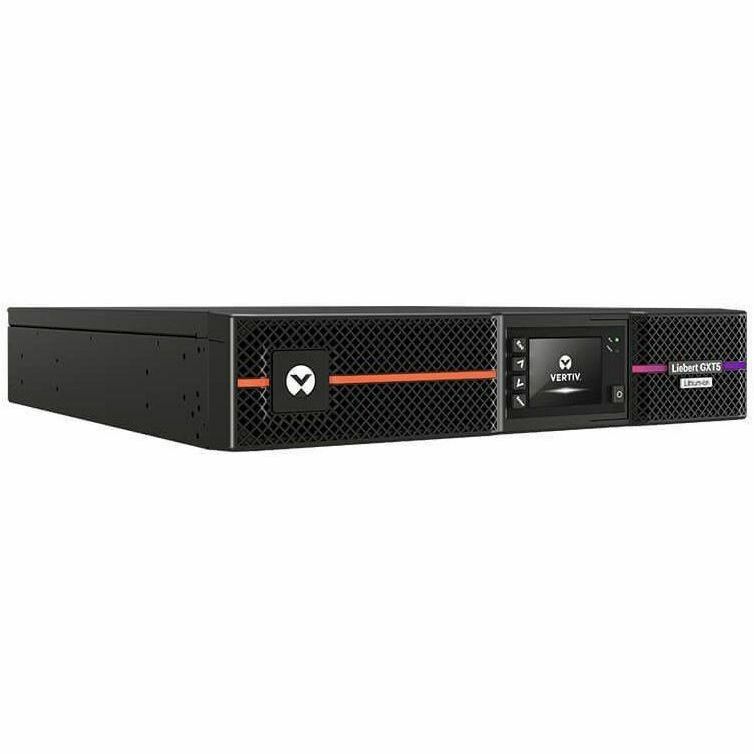

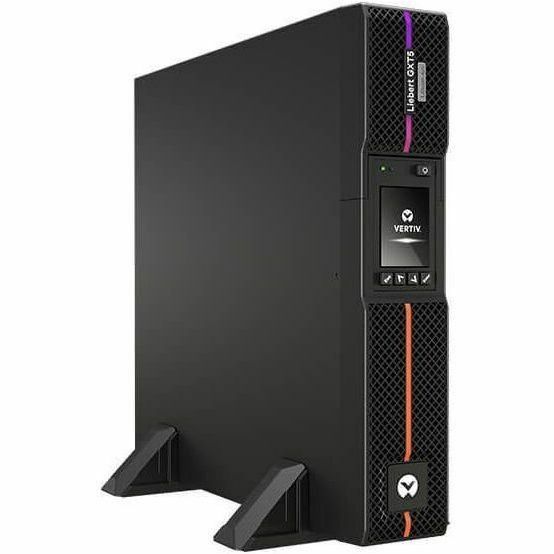

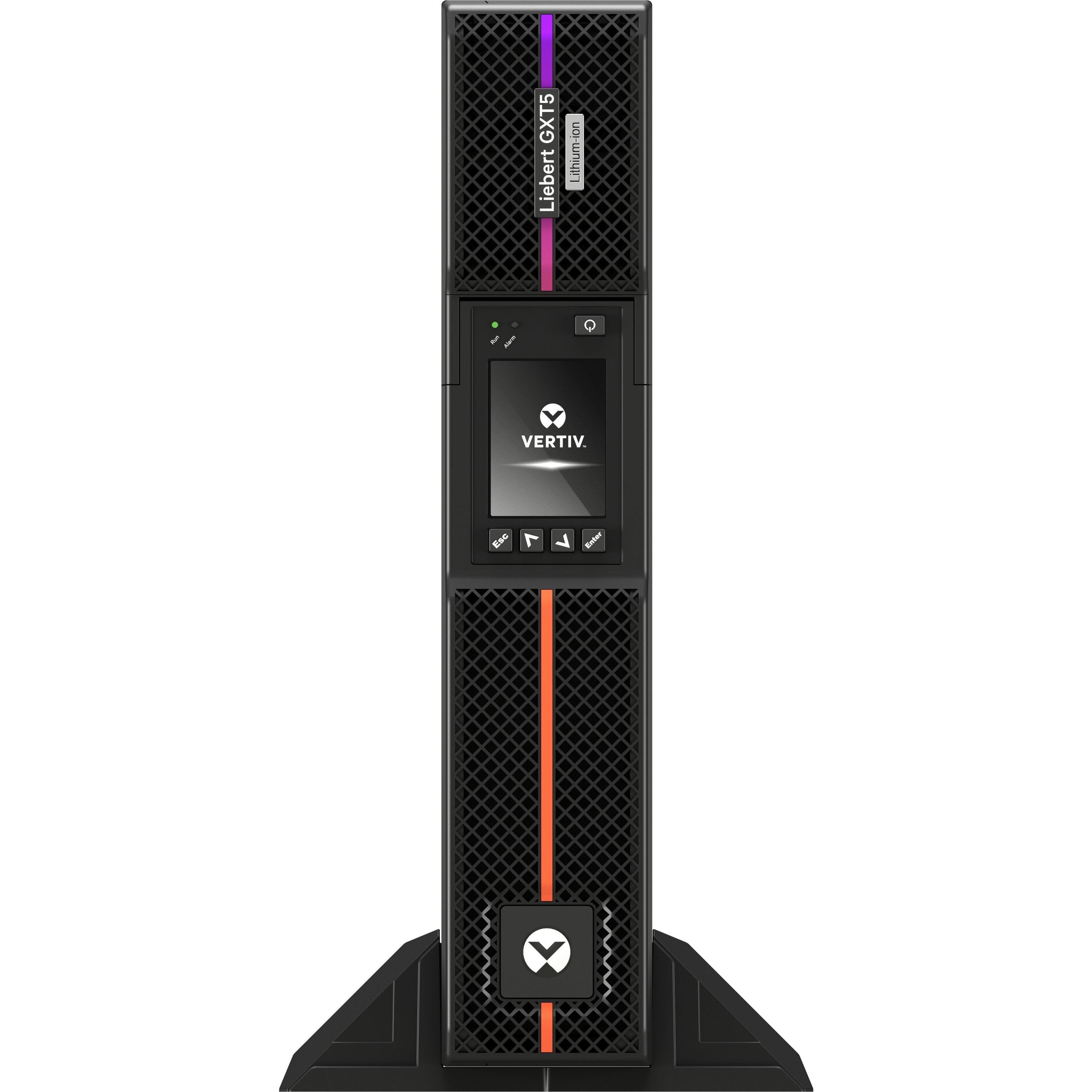

VERTIV GXT5LI-1000LVRT2UXL GXT5 LITHIUM-ION 1000VA UPS, 120VAC, 2U RACK/TOWE - LITHIUM-ION BATTERIES REQUIR
Mfg Part Number: GXT5LI-1000LVRT2UXL , Item #: 4591527
, PO and Wire.
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss. Lithium-Ion battery technology offers better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5LI-1000LVRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Model | GXT5LI-1000LVRT2UXL |
| Product Name | GXT5LI-1000LVRT2UXL 1000VA Rack/Tower UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | IT System |
| Application/Usage | Server Room |
| Application/Usage | Edge Computing |
| Application/Usage | Network Closet |
| Application/Usage | Critical System |
| Power Description | |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 1000 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 102 V AC - 150 V AC |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP/Web |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 13 Minute |
| Backup/Run Time (Half Load) | 28 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Maximum Operating Elevation | 10000 ft |
| Sound Emission | 45 dB |
| Physical Characteristics | |
| Height | 3.4" |
| Width | 16.9" |
| Depth | 17.3" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 37.48 lb |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
