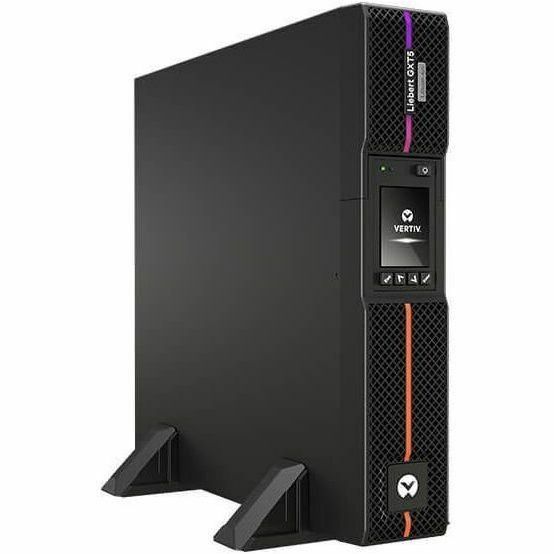

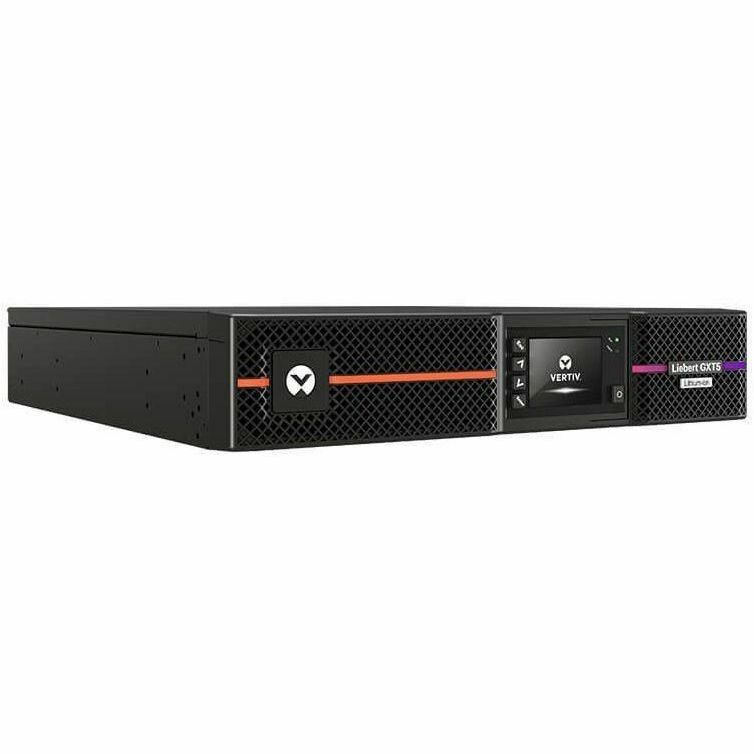

VERTIV GXT5LI-3000LVRT2UXL GXT5 LITHIUM-ION 3000VA UPS, 120VAC, 2U RACK/TOWER
Mfg Part Number: GXT5LI-3000LVRT2UXL , Item #: 4590986
, PO and Wire.
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss. Lithium-Ion battery technology offers better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5LI-3000LVRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Model | GXT5LI |
| Product Name | GXT5LI 3000 LV UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |

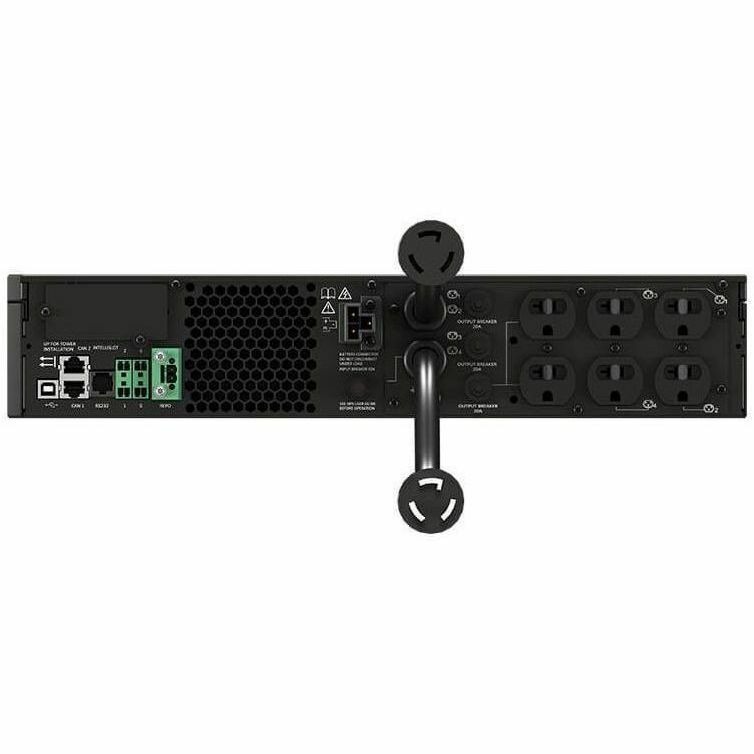

| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA L5-30R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 6 x NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Protection Type | Input & Output Circuit Breaker |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Edge Computing |
| Application/Usage | IT System |
| Application/Usage | Critical System |
| Application/Usage | Network Closet |
| Application/Usage | Server Room |
| Power Description | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 102 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD/LED |
| Management | |
| Network Management | SNMP/Webcard |
| Interfaces/Ports | |
| Serial Port | Yes |
| VGA | No |
| Modem (RJ-11) | No |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Maximum Operating Elevation | 10000 ft |
| Sound Emission | 45 dB |
| Physical Characteristics | |
| Height | 3.4" |
| Width | 16.9" |
| Depth | 21.3" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 48.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Yes |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
