STARTECH DISPLPORT6L10PK 10PK 6FT CERTIFIED DP1.2 DP TO DP 4K X 2K
Mfg Part Number: DISPLPORT6L10PK , Item #: 4589236
, PO and Wire.

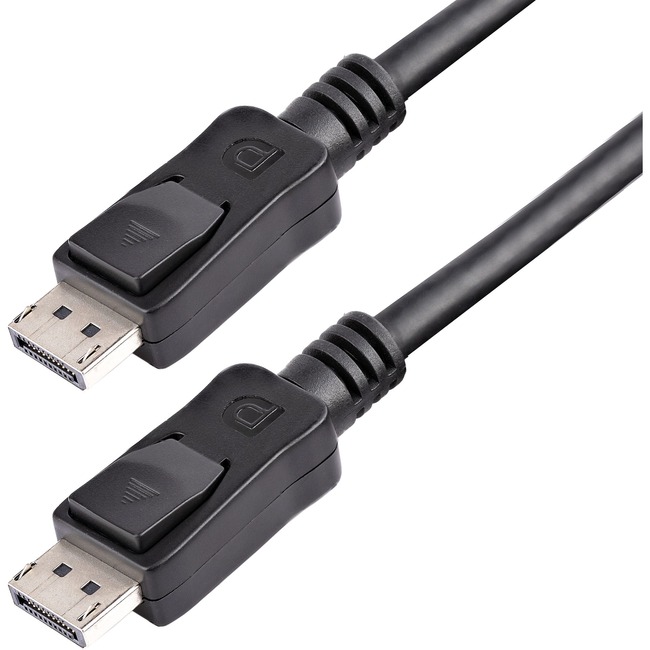

This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.
The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well an optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.

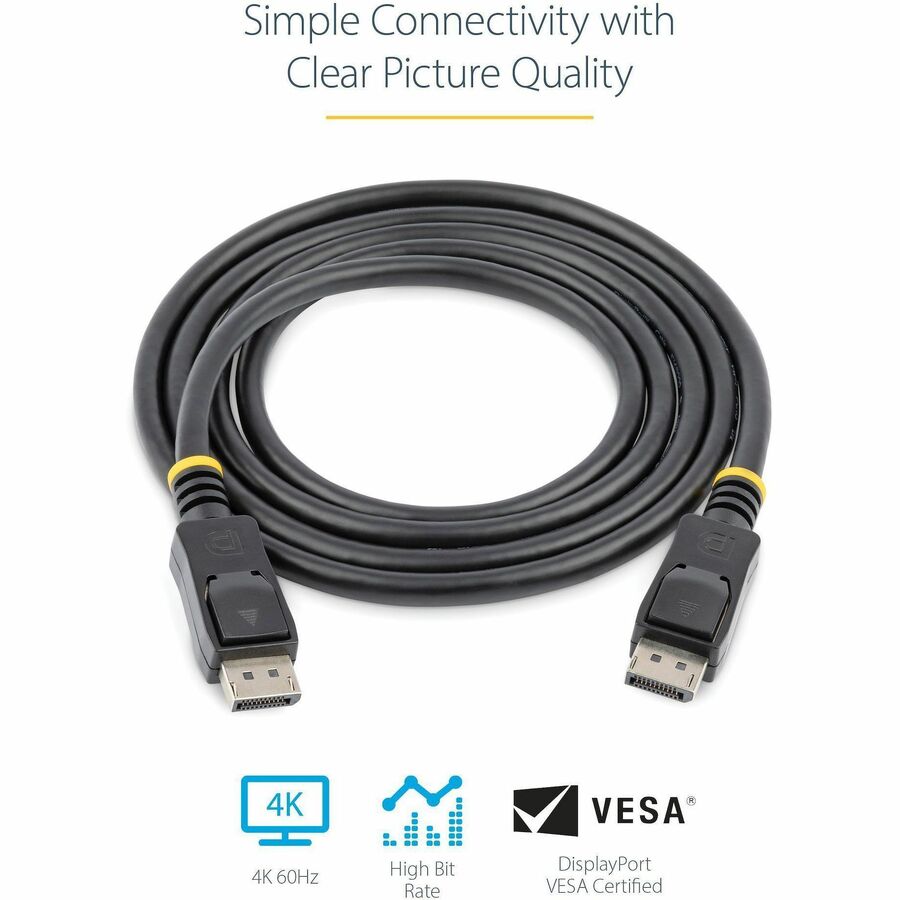

The 6-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.
The DISPLPORT6L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DISPLPORT6L10PK |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | DisplayPort Audio/Video Cable |
| Packaged Quantity | 10 Pack |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | DisplayPort |
| Cable Length | 6 ft |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Jacket Type | CMG |
| Device Supported | Monitor |
| Device Supported | Workstation |
| Device Supported | Projector |
| Device Supported | Notebook |
| Device Supported | Audio/Video Device |
| Device Supported | Graphics Card |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 21.6 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Features | Damage Resistant |
| Features | EMI Protection |
| Features | Fray Resistant |
| Features | Strain Relief |
| Features | HDCP |
| Features | Multi-Stream Transport (MST) Support |
| Features | Flexible |
| Features | DPCP |

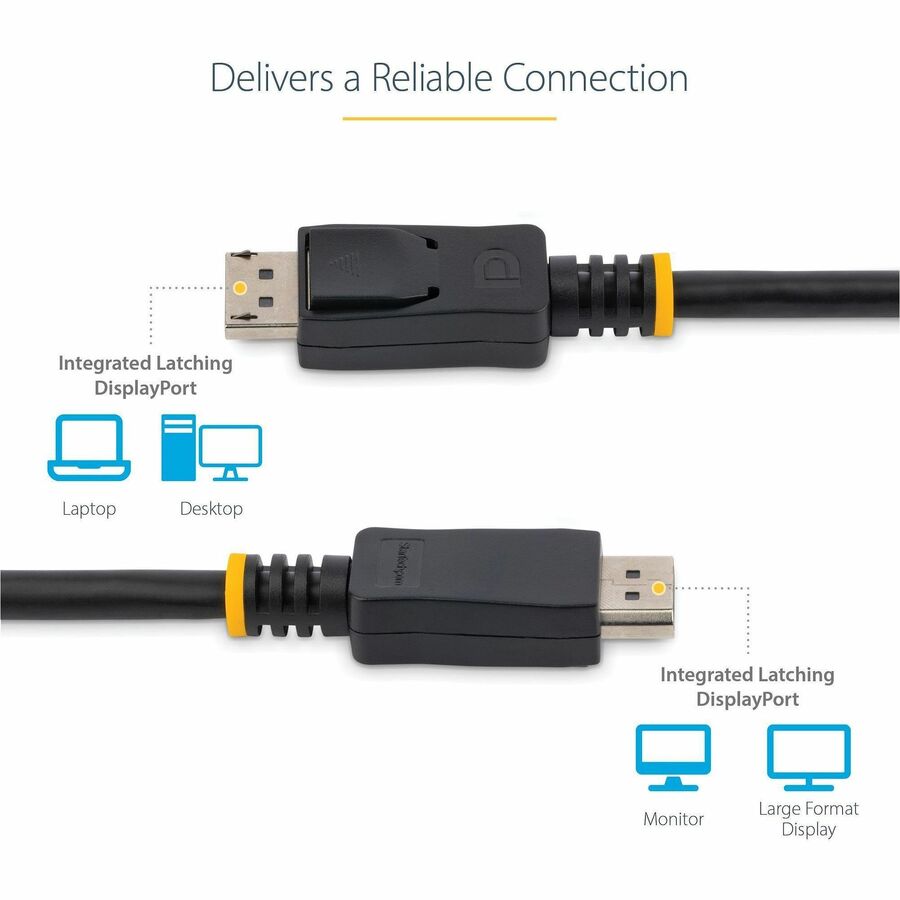

| Features | Latching Connector |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 0.29 lb |
| Shipping Height | 2.80" |
| Shipping Width | 17.70" |
| Shipping Weight (Approximate) | 3.28 lb |
| Miscellaneous | |
| Compatibility | AMD FirePro Graphic Cards:
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| REACH free of SVHC | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/displport6l10pk_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/displport6l10pk_rohs.pdf |
| End of Life Manual Availability | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/displport6l10pk_weee.pdf |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
