APC

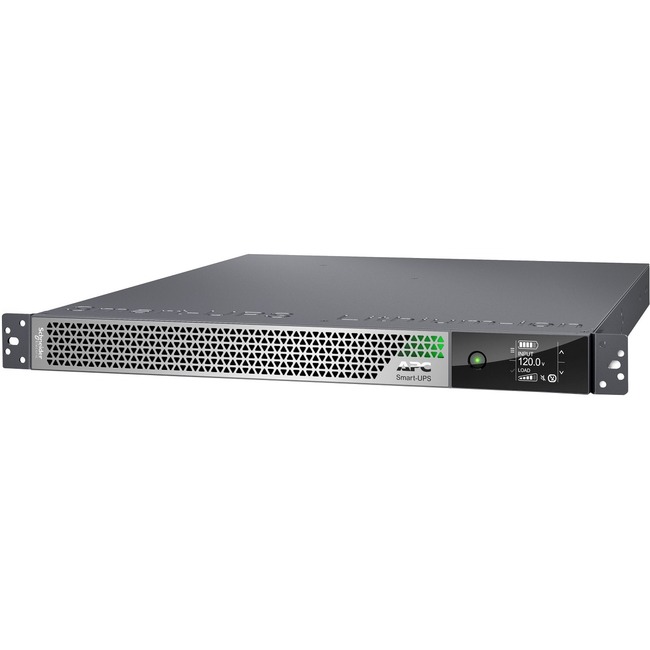

SRTL2K2RM1UNC APC SMART-UPS SRT, LITHIUM-ION, 2200VA 120V, WITH SMARTCONNECT, WITH NETWORK MAN
Mfg Part Number: SRTL2K2RM1UNC , Item #: 4586813
Special Note: Feb 28, 2022
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $4,975.02
+ Free Shipping
Quantity:
In Stock: 47
Last Updated: Jan 01, 2026
No Sales Tax except these states
, PO and Wire.
APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with Embedded Network Port This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL2K2RM1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS |
| Packaged Quantity | 1 |
| Product Type | Dual Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Detail | 5 x NEMA 5-20R |
| Cord Length | 8 ft |
| Application/Usage | Voice/Data Network |
| Application/Usage | Medical Laboratory |
| Application/Usage | Server |
| Application/Usage | Light Industrial Application |
| Application/Usage | Retail |
| Power Description | |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 2200 W |
| Input Voltage | 125 V |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Alarm | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 50V |
| Battery Energy | 1123.2 kJ |
| Backup/Run Time (Full Load) | 6.05 Minute |
| Backup/Run Time (Half Load) | 12.65 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver Gray |
| Height | 1.7" |
| Width | 17" |
| Depth | 22" |
| Rack Height | 1U |
| Form Factor | Rack/Tower/Wall/Ceiling/Desktop Mountable |
| Weight (Approximate) | 35.05 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | UL/cUL listed|FCC |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UNC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555828788&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555828788&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 years repair or replace |
