Special Note: Nov 07, 2022
NCNR; If you do not have loading facility, please contact our CST for special handling service.

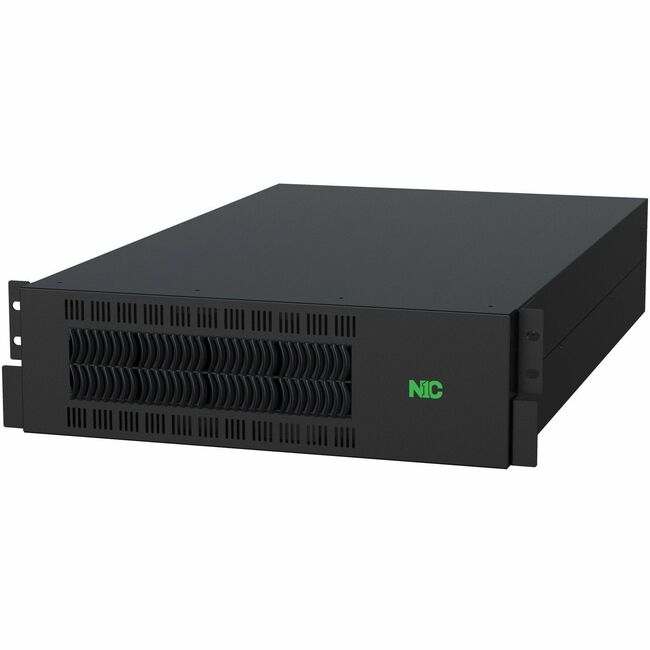

The N1C.LR-10TXR is a rack-mountable, 208-240V to 120V step-down transformer. Designed for use with 208-240V UPS systems, the N1C.LR-10TXR provides 120V output via its plug-and-play outlets and hardwire terminal output, allowing for connection to a load center for custom outlet wiring. The transformer also has a pair of 208-240V/120V L14-30R outlets allowing for connections for dual-phase 240V and 120V loads or use with adapter cables for 240V or 120V loads. The transormer is backed by N1C's industry-best 10 year warranty.
General Information | |
Manufacturer | N1 Critical Technologies, Inc |
Manufacturer Part Number | N1CLR10TXR |
Manufacturer Website Address | http://www.n1critical.com |
Brand Name | N1C |
Product Series | LR |
Product Model | N1C.LR-10TXR |
Product Name | LR N1C.LR-10TXR Step Down Transformer |
Product Type | Step Down Transformer |
Technical Information | |
Power Rating | 10000 VA |
Input Receptacle Type | Hardwired |
Output Receptacle Type | Hardwired |
Output Receptacle Type | NEMA L14-30R |
Output Receptacle Type | NEMA 5-20R |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 120 V |
Physical Characteristics | |
Form Factor | Rack-mountable |
Rack Height | 3U |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Warranty | |
Limited Warranty | 2 Year |
