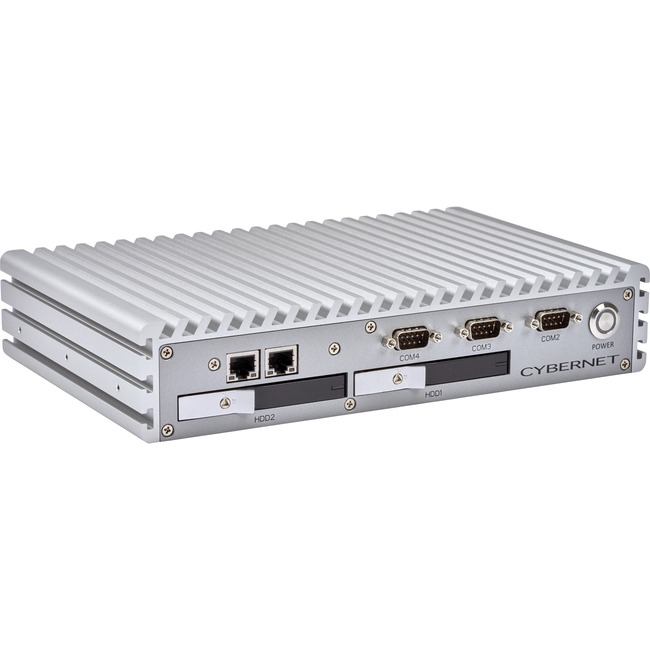

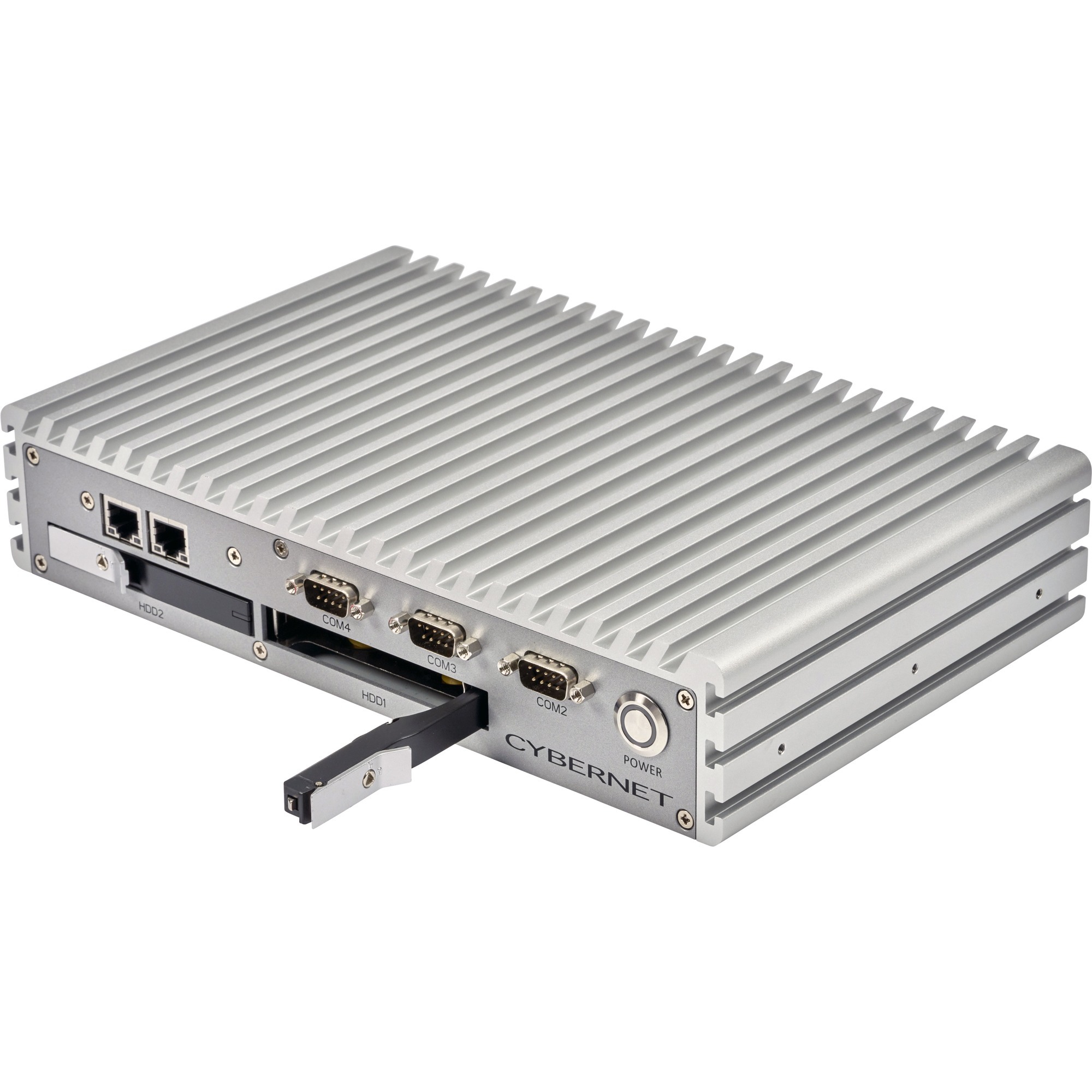

Constructed with industrial-grade components means the iPC E2is can withstand extreme temperatures (-25°C to 70°C) and humidity (10%-95% non-condensing). It has also been independently tested to be IEC60608-2-27 shock and vibration proof. Whether mounted next to heavy machinery on a factory floor or as an in vehicle computer, this PoE mini PC offers the reliability you need to get the job done.
Not every factory can be rebuilt from the ground up to meet manufacturing 4.0 standards. But IoT devices can certainly help bridge the gap. The iPC E2is is a PoE mini PC that can power multiple devices. What this means is you can "retrofit" a facility with smart sensors that collect and interpret data in real-time, allowing you to improve efficiency and cut costs.
This PoE mini pc also comes with 4 LAN ports standard, allowing you to fully customize your connectivity options. Perhaps you want to set up one intranet for smart sensors in your facility, a second for internal communications, and a third for standard internet connectivity. The fourth could be used as a failsafe if one of the other connections goes down.
The iPC E2is allows you the flexibility to customize your data connections in any configuration that best suits your operations.
Versatility is a must in this day and age. The lightweight and slim profile of the iPC E2is allows you to mount this PoE mini PC nearly anywhere. The optional mounting bracket and 19" rack mounting options make this a truly go-anywhere PC capable of running any application anywhere.
This iPC E2is is extremely customizable to help you adapt to any use case.
General Information | |
Manufacturer | Cybernet Manufacturing, Inc |
Manufacturer Part Number | IPC-E2IS |
Manufacturer Website Address | http://www.cybernetman.com |
Brand Name | Cybernet |
Product Series | E |
Product Model | IPC-E2IS |
Product Name | Industrial Grade Mini PC |
Packaged Quantity | 1 |
Product Type | Desktop Computer |
Processor | |
Processor Manufacturer | Intel |
Processor Type | Core i5 |
Processor Generation | 8th Gen |
Processor Model | i5-8365UE |
Processor Speed | 1.60 GHz |
Chipset | |
Chipset Manufacturer | Intel |
Memory | |
Standard Memory | 8 GB |
Maximum Memory Supported | 32 GB |
Memory Technology | DDR4 SDRAM |
Total Number of Memory Slots | 2.0 |
Storage | |
Total Solid State Drive Capacity | 128 GB |
Optical Drive Type | No |
Display & Graphics | |
Graphics Controller Manufacturer | Intel |
Graphics Controller Model | HD 620 Graphics |
Graphics Memory Technology | DDR4 SDRAM |
Graphics Memory Accessibility | Shared |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ac |
Bluetooth | Yes |
Interfaces/Ports | |
HDMI | Yes |
Number of DVI Ports | 2 |
DVI | Yes |
Total Number of USB Ports | 6 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.1 Ports | 4 |
Number Of Ethernet Ports | 2 |
Number of DisplayPort Outputs | 1 |
DisplayPort | Yes |
Operating System | |
Operating System Platform | No |
Operating System | No |
Power Description | |
Maximum Power Supply Wattage | 120 W |
Physical Characteristics | |
Color Family | Silver |
Product Color | Silver |
Form Factor | Mini PC |
Height | 2.2" |
Width | 6.7" |
Depth | 10.7" |
Weight (Approximate) | 5 lb |
Miscellaneous | |
Package Contents |
|
Energy Star | Yes |
Country of Origin | United States |
Environmentally Friendly | Yes |
Energy Efficiency Certification | ENERGY STAR 6.0 |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
Warranty | |
Limited Warranty | 1 Year |
