SHUTTLE
Shuttle SY SH570R6 XPC cube Ci3 i5 i7 Pentium Celeron 4x32GB DDR4 Retail
Mfg Part Number: SH570R6 , Item #: 4583690

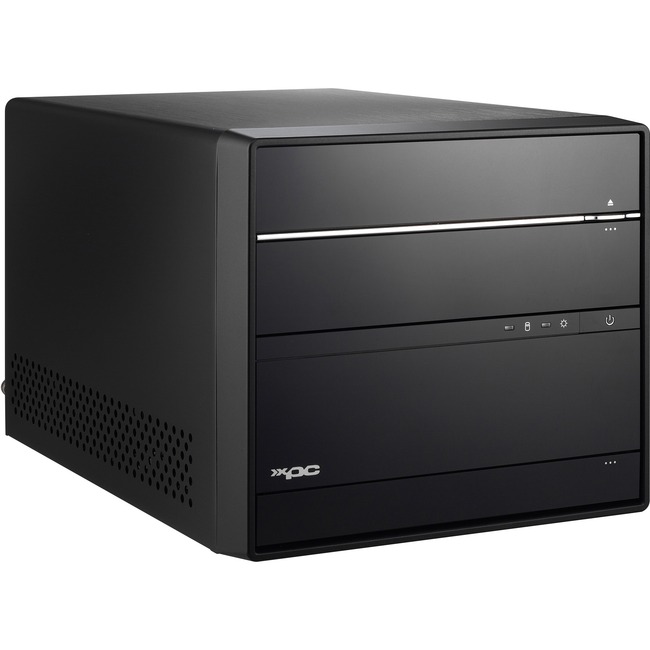

Image may not reflect the actual item.
Price: $771.61
+ Free Shipping
Quantity:
More to Come
Last Updated: Apr 27, 2024
No Sales Tax except these states
, PO and Wire.
SUPPORTS 10TH/11TH GENERATION INTEL CORE PROCESSORS AND UP TO THREE UHD DISPLAYS
The Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus an optical drive. Even without a dedicated graphics card, up to three UHD displays are supported (if not an F-type CPU is used).
The Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus an optical drive. Even without a dedicated graphics card, up to three UHD displays are supported (if not an F-type CPU is used).
Main Specification
| General Information | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | SH570R6 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC cube |
| Product Model | SH570R6 |
| Product Name | BAREBONE XPC cube SH570R6 |
| Product Type | Barebone System |
| Processor | |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| Processor Supported | Core i7 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i9 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H570 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of Total Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 2 |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 13 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of Onboard USB 2.0 Ports | 1 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | USB 3.2 Gen Type-C port (5 Gbps) |
| Number of SATA Interfaces | 4 |
| Operating System | |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Linux |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 300 W |
| Physical Characteristics | |
| Product Color | Black Aluminum |
| Height | 7.5" |
| Width | 8.5" |
| Depth | 13.1" |
| Weight (Approximate) | 7.72 lb |
| Miscellaneous | |
| Energy Star | Yes |
