CYBERNET
CYBERNET FANLESS INDUSTRIAL MINI PC IPC-E1S MINI RUGGED PC
Mfg Part Number: IPC-E1S , Item #: 4583378
, PO and Wire.
The IPC-E1S mini rugged computer is one of the most versatile on the market. In addition to multiple mounting options, you can customize the unit's specs to meet nearly any application.
Socketed Intel 6th Generation i5 or i7 processor
Expandable up to 32GB of RAM
Windows 7, 8, 10, IoT, or Linux perating systems

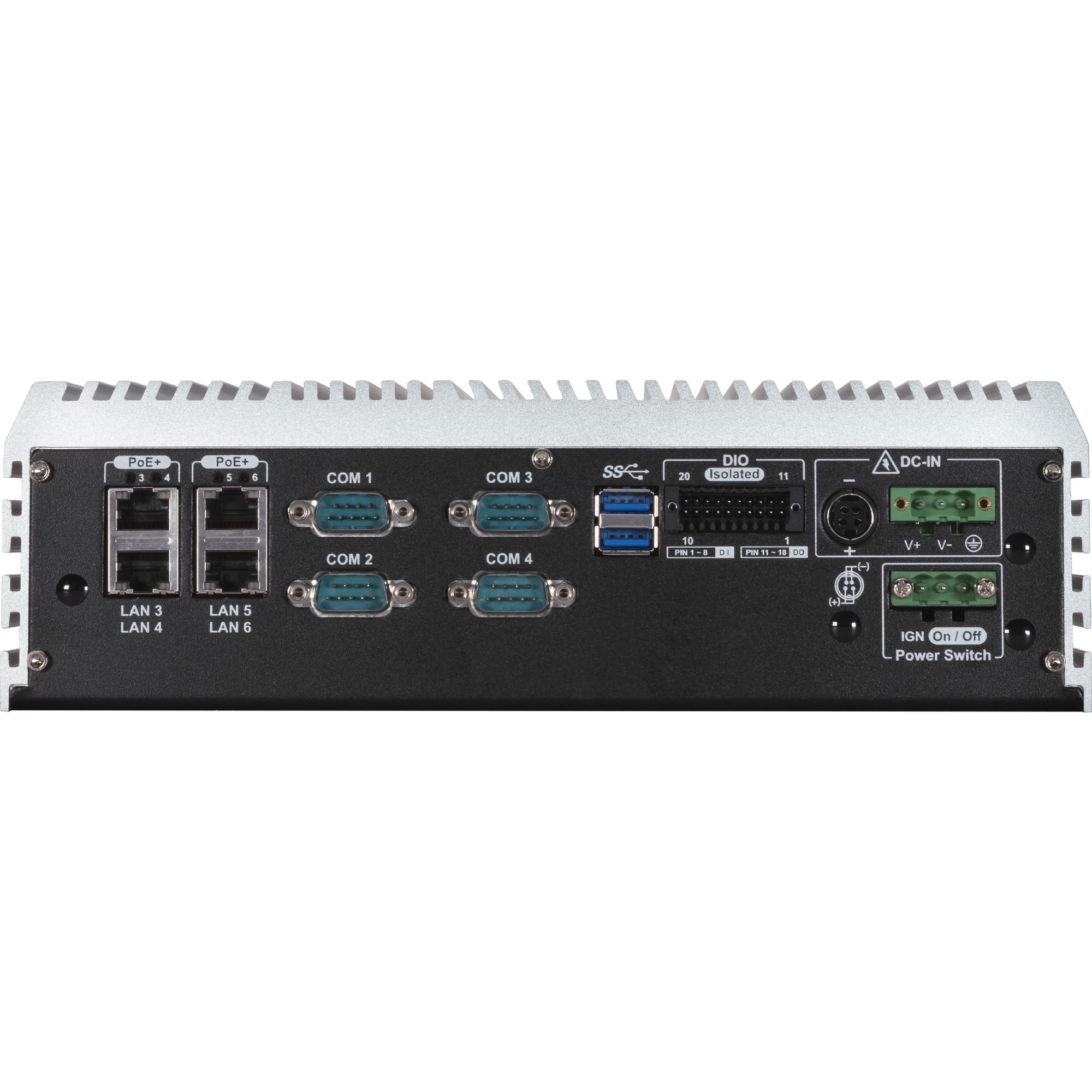

This in vehicle computer also supports RS-232 legacy ports allowing it to connect to both old and new equipment.
The iPC E1s comes with 4 PoE ports capable of providing up to 25 Watts of power per port. This is perfect for powering connecting IP cameras or other peripheral devices for remote fleet management.
Integrated ignition control for cold crank and battery drain prevention support, 4G/3G LTE connectivity with GPS, combined with IEC60068-2-27 certification for shock and vibration make this an ideal in vehicle computer.

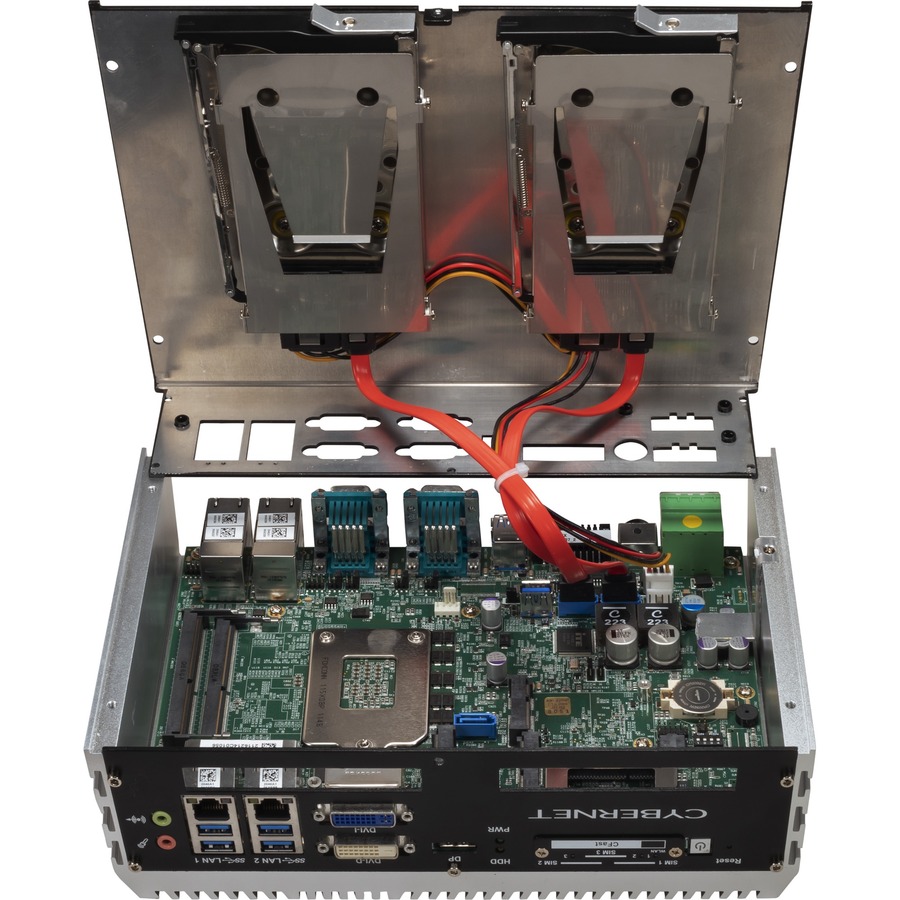

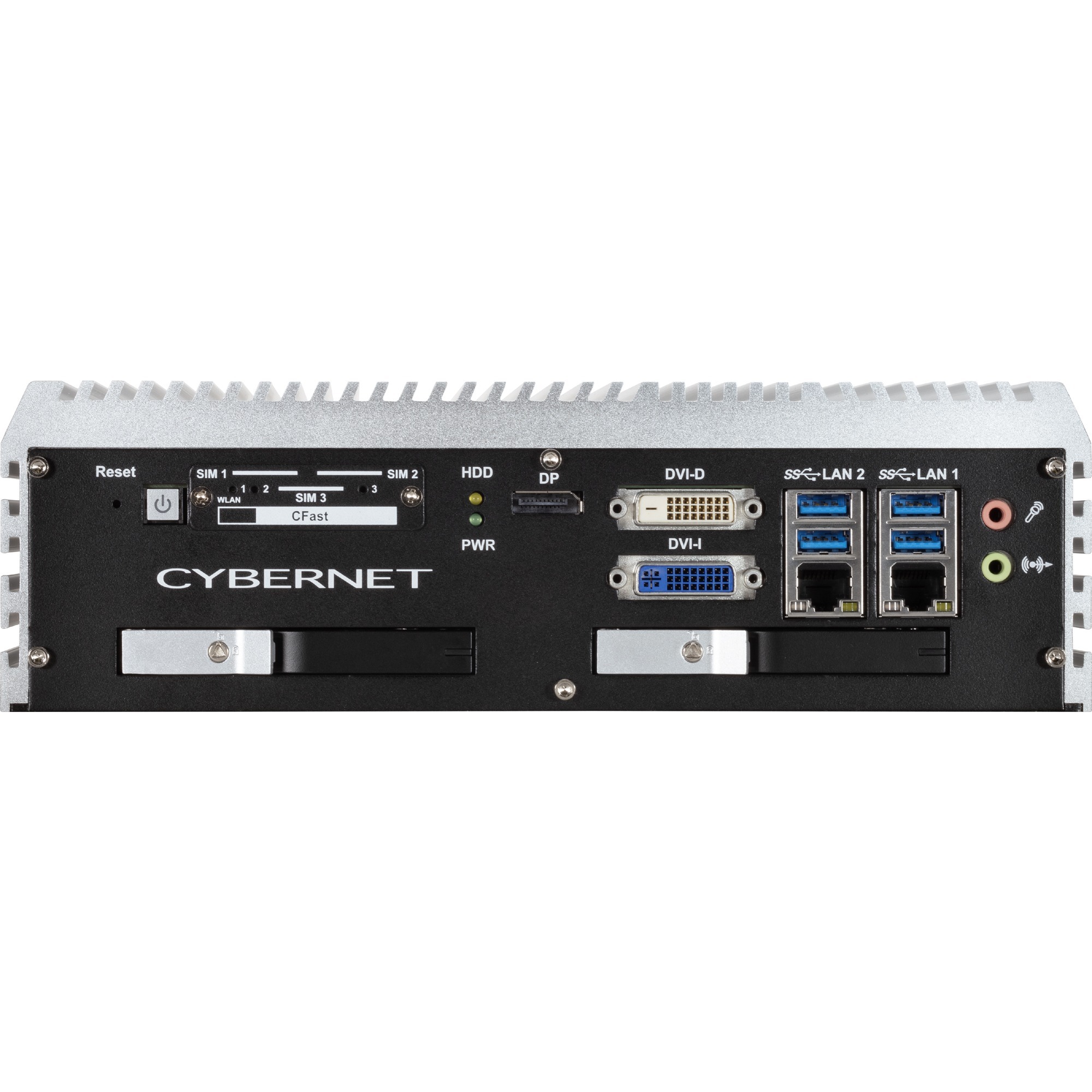

Locking removable drives makes the iPC E1s perfect for use in working environments where drives need to be removed. Locks prevent the drives from being accidentally removed during critical operations, as well as preventing incidents of theft.
The removable drive allows you to secure the drive in a safe or other secure areas when not in use, safeguarding the information.
The iPC E1s' four PoE ports can be used to connect up to 4 IP cameras, making it great for video surveillance applications. The powerful processor and solid state drive can record and store months of high definition video, perfect for any secure area.
| General Information | |
| Manufacturer | Cybernet Manufacturing, Inc |
| Manufacturer Part Number | IPC-E1S |
| Manufacturer Website Address | http://www.cybernetman.com |
| Brand Name | Cybernet |
| Product Series | E |
| Product Model | IPC-E1S |
| Product Name | Industrial Grade Mini PC |
| Packaged Quantity | 1 |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 6th Gen |
| Processor Model | i5-6500TE |
| Processor Speed | 2.30 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 128 GB |
| Optical Drive Type | No |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD 530 Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Interfaces/Ports | |
| HDMI | Yes |
| DVI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Operating System | |
| Operating System Platform | No |
| Operating System | No |
| Physical Characteristics | |
| Product Color | Silver |
| Form Factor | Mini PC |
| Height | 3.1" |
| Width | 6.9" |
| Depth | 10.2" |
| Weight (Approximate) | 8.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
